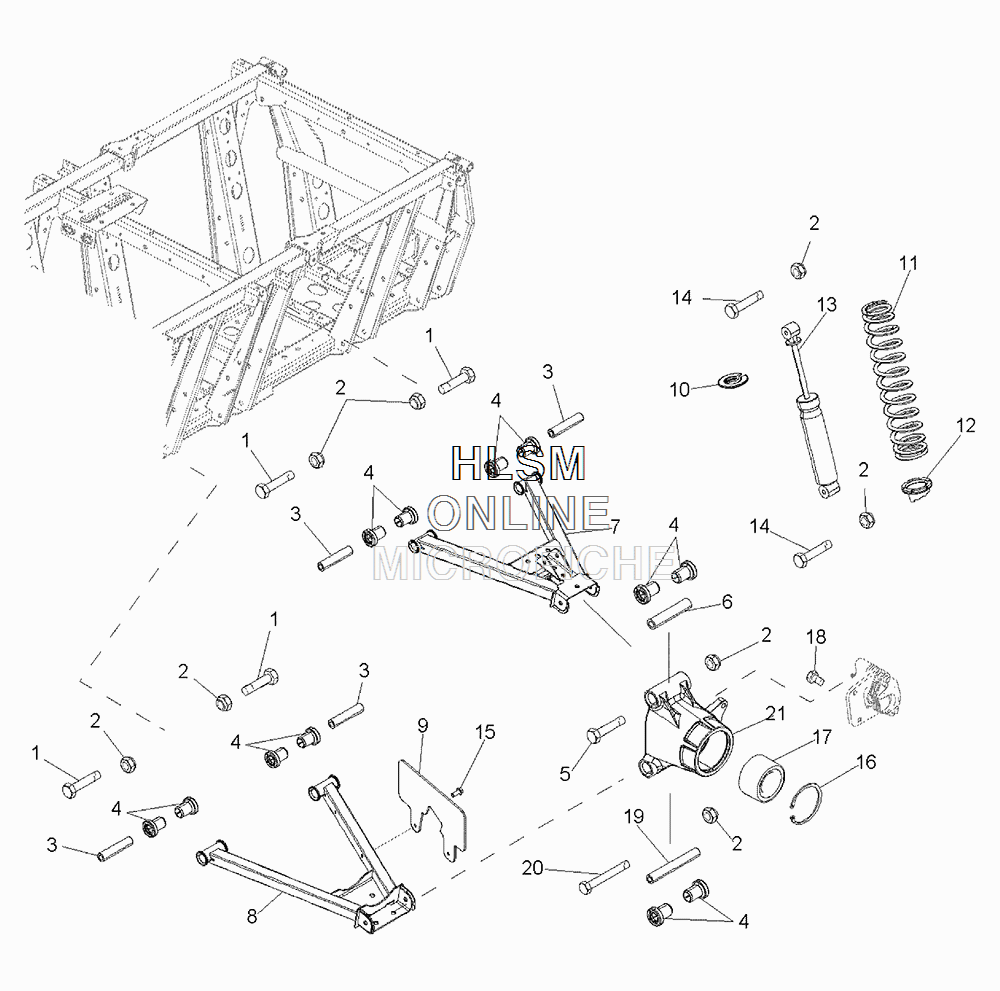

REAR CONTROL ARMS для Polaris RANGER 6X6 (AVALANCHE GRAY) [R16RAA76AJ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7519043 SCREW
    SCREW
  • 2
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 3
    5137591 SHAFT, PIVOT
    SHAFT, PIVOT
  • 4
    5439270 BUSHING, A-ARM, SHORT, BLACK
    BUSHING, A-ARM, SHORT, BLACK
  • 5
    7518566 BOLT, FLANGED
    BOLT, FLANGED
  • 6
    5137592 SHAFT, PIVOT
    SHAFT, PIVOT
  • 7
    1018184-458 ARM, CONTROL, UPPER, REAR, MATTE BLACK
    ARM, CONTROL, UPPER, REAR, MATTE BLACK
  • 8
    1018185-458 ARM., CONTROL, LOWER, REAR, MATTE BLACK
    ARM., CONTROL, LOWER, REAR, MATTE BLACK
  • 9
    5438639-070 SHIELD, CV, REAR, BLACK
    SHIELD, CV, REAR, BLACK
  • 10
    5251753 RETAINER, SPRING
    RETAINER, SPRING
  • 11
    7043692-458 SPRING, MATTE BLACK
    SPRING, MATTE BLACK
  • 12
    5253768 CAM, ADJUSTING SPRING
    CAM, ADJUSTING SPRING
  • 13
    7043556 SHOCK, REAR
    SHOCK, REAR
  • 14
    7518563 BOLT
    BOLT
  • 15
    7512084 SCREW
    SCREW
  • 16
    7710440 RING, RETAINING
    RING, RETAINING
  • 17
    3514635 BEARING, WHEEL
    BEARING, WHEEL
  • 18
    7518558 BOLT, FLANGED (REAR CALIPER ATTACH)
    BOLT, FLANGED (REAR CALIPER ATTACH)
  • 19
    5137593 SHAFT, PIVOT
    SHAFT, PIVOT
  • 20
    7518562 BOLT, FLANGED
    BOLT, FLANGED
  • 21
    5136914 CARRIER, BEARING, WHEEL, (LEFT HAND)
    CARRIER, BEARING, WHEEL, (LEFT HAND)
  • 21
    5136915 CARRIER, BEARING, WHEEL, (RIGHT HAND)
    CARRIER, BEARING, WHEEL, (RIGHT HAND)
