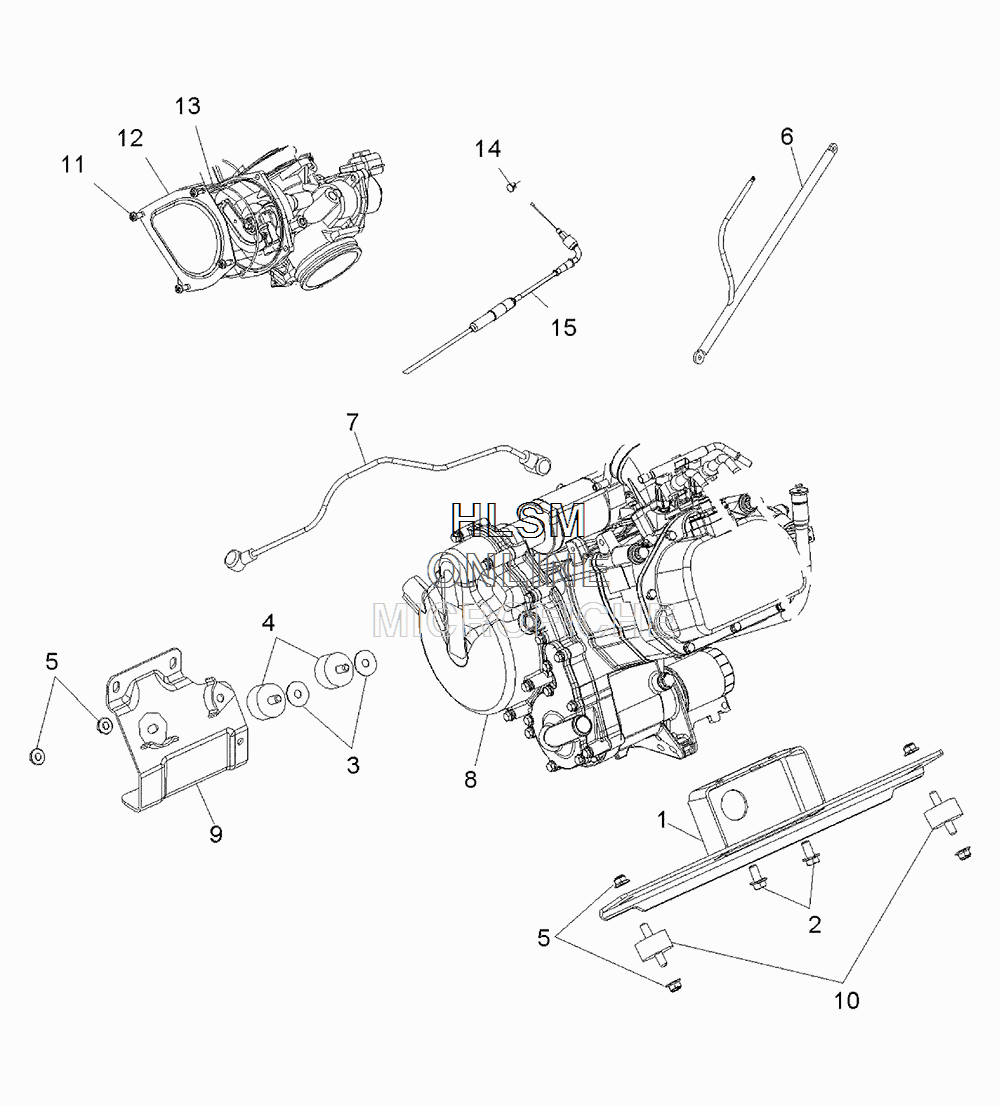

ENGINE MOUNTS для Polaris RANGER 6X6 (AVALANCHE GRAY) [R16RAA76AJ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1016420-329 MOUNT, ENGINE, BLACK
    MOUNT, ENGINE, BLACK
  • 2
    7518460 BOLT
    BOLT
  • 3
    7555823 WASHER, FLAT
    WASHER, FLAT
  • 4
    3022071 ISOLATOR
    ISOLATOR
  • 5
    7547263 NUT
    NUT
  • 6
    4012620 CABLE, GROUND
    CABLE, GROUND
  • 7
    4012621 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 8
    2204394 KIT, SHORT BLOCK (NOTE: THE SHORT BLOCK ASSEMBLY CONTAINS A CRANKCASE ASSEMBLY, CYLINDER AND CYLINDER HEAD ASSEMBLY, AND A PISTON AND CRANKSHAFT ASSEMBLY. PRIOR AUTHORIZATION REQUIRED FOR WARRANTY CONSIDERATION.)
    KIT, SHORT BLOCK (NOTE: THE SHORT BLOCK ASSEMBLY CONTAINS A CRANKCASE ASSEMBLY, CYLINDER AND CYLINDER HEAD ASSEMBLY, AND A PISTON AND CRANKSHAFT ASSEMBLY. PRIOR AUTHORIZATION REQUIRED FOR WARRANTY CONSIDERATION.)
  • 9
    1015065-329 MOUNT, ENGINE, TRANSMISSION, BLACK
    MOUNT, ENGINE, TRANSMISSION, BLACK
  • 10
    3022076 ISOLATOR
    ISOLATOR
  • 11
    7519292 SCREW
    SCREW
  • 12
    5253974 COVER, THROTTLE, CAM
    COVER, THROTTLE, CAM
  • 13
    5413898 O-RING, THROTTLE CAM COVER
    O-RING, THROTTLE CAM COVER
  • 14
    3130543 GUIDE, CABLE
    GUIDE, CABLE
  • 15
    7081669 CABLE, THROTTLE
    CABLE, THROTTLE
