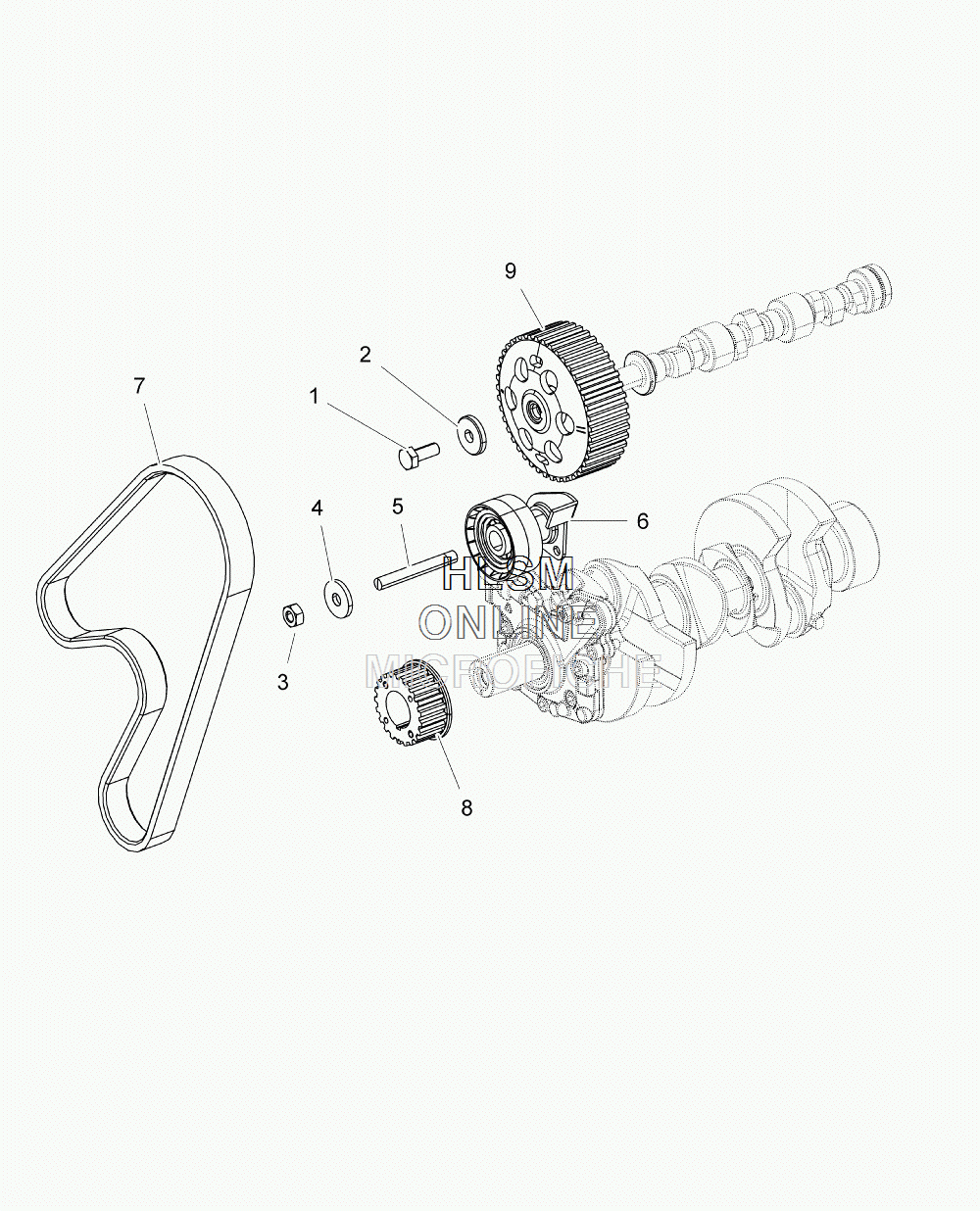

TIMING PULLEY W/BELT для Polaris RANGER CREW 1000 DIESEL SAGE GREEN [R15RUAD1AA] - 2015 года выпуска
-
№АртикулНазвание
-
13040229 SCREWSCREW
-
23040147 WASHER, 11X33X5WASHER, 11X33X5
-
33040056 NUT, M10X1.5NUT, M10X1.5
-
43040142 WASHER, 10.5X32X4WASHER, 10.5X32X4
-
53040134 STUD, M10X70STUD, M10X70
-
63040069 TENSIONER, BELTTENSIONER, BELT
-
73040043 BELT, TIMINGBELT, TIMING
-
83040136 PULLEY, DRIVE, TIMINGPULLEY, DRIVE, TIMING
-
93040138 TIMING PULLEY, DRIVENTIMING PULLEY, DRIVEN
