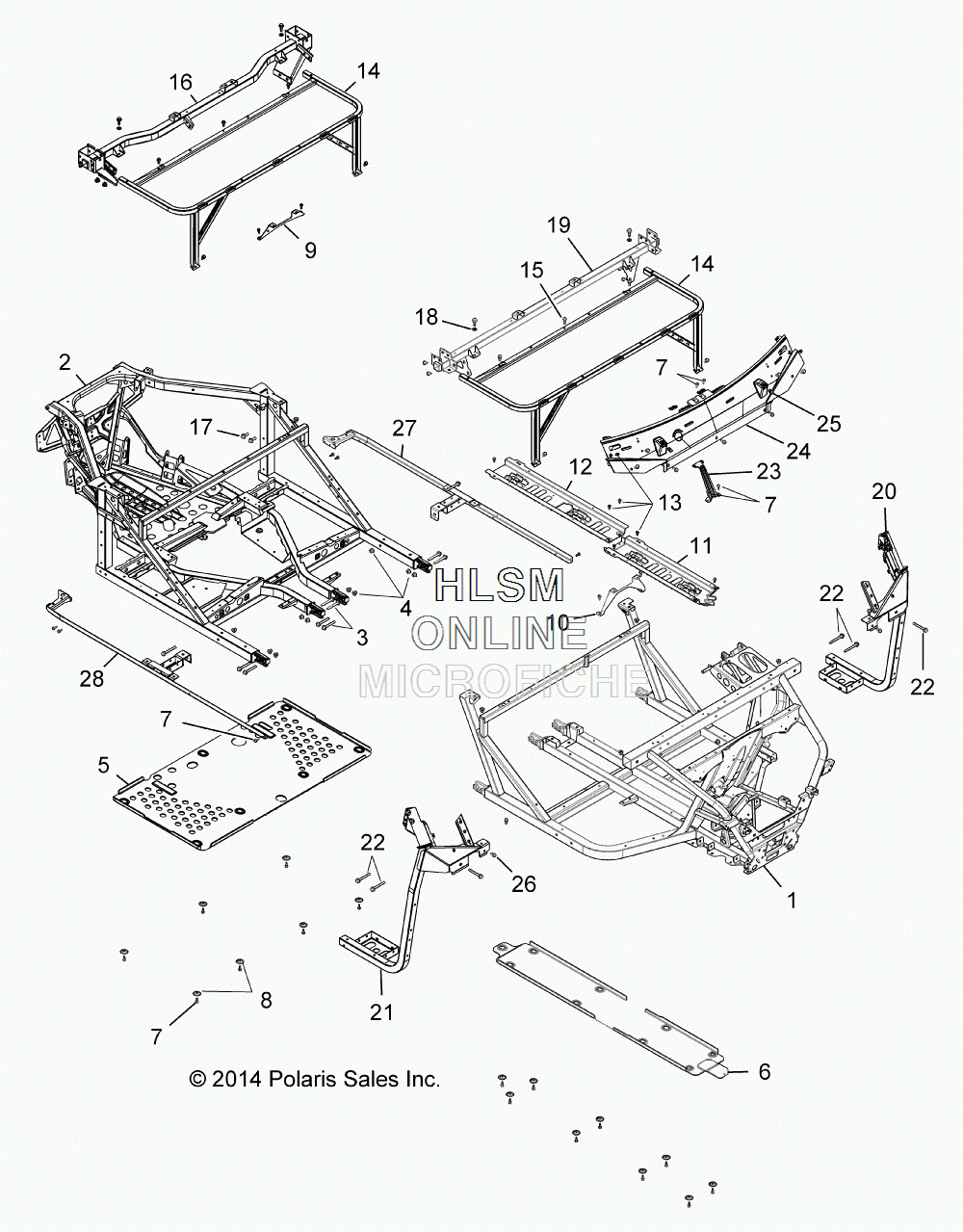

FRAME для Polaris RANGER CREW 1000 DIESEL SAGE GREEN [R15RUAD1AA] - 2015 года выпуска`
-
№АртикулНазвание
-
11021106-458 FRAME, MAIN, FRONT, MATTE BLACKFRAME, MAIN, FRONT, MATTE BLACK
-
21020427-458 FRAME, REAR, MATTE BLACKFRAME, REAR, MATTE BLACK
-
37518561 BOLTBOLT
-
47547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
55450336-070 PLATE, SKID, REAR, BLACKPLATE, SKID, REAR, BLACK
-
65450337-070 PLATE, SKID, FRONT, BLACKPLATE, SKID, FRONT, BLACK
-
77518529 SCREWSCREW
-
87556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
95257333-329 BRACKET, ROUTING TRAY, BLACKBRACKET, ROUTING TRAY, BLACK
-
105257387-329 BRACKET, ROUTING TRAY, CENTER, BLACKBRACKET, ROUTING TRAY, CENTER, BLACK
-
115450841-070 TRAY, ROUTING, BLACKTRAY, ROUTING, BLACK
-
125450845-070 TRAY, ROUTING, REAR, BLACKTRAY, ROUTING, REAR, BLACK
-
137661855 RIVETRIVET
-
141019513-329 BASE, CAB/SEAT, BLACKBASE, CAB/SEAT, BLACK
-
157519156 SCREWSCREW
-
161020588-329 SUPPORT, CAB, REAR, BLACKSUPPORT, CAB, REAR, BLACK
-
177519059 SCREWSCREW
-
187556153 WASHERWASHER
-
191020978-329 SUPPORT, CAB, BLACKSUPPORT, CAB, BLACK
-
201020577-329 SUPPORT,FLOOR, LEFT HAND, BLACKSUPPORT,FLOOR, LEFT HAND, BLACK
-
211020578-329 SUPPORT,FLOOR, RIGHT HAND, BLACKSUPPORT,FLOOR, RIGHT HAND, BLACK
-
227519363 SCREWSCREW
-
235260353 BRACKET, PLATE, CENTER, PIN MOUNTBRACKET, PLATE, CENTER, PIN MOUNT
-
245450344-070 PLATE, WINDSHIELD MOUNT, LOWER, BLACKPLATE, WINDSHIELD MOUNT, LOWER, BLACK
-
257081305 CLIP, U SPEED NUTCLIP, U SPEED NUT
-
267518555 BOLTBOLT
-
271019498-329 ROCKER, LEFT HAND, BLACKROCKER, LEFT HAND, BLACK
-
281019500-329 ROCKER, RIGHT HAND, BLACKROCKER, RIGHT HAND, BLACK
