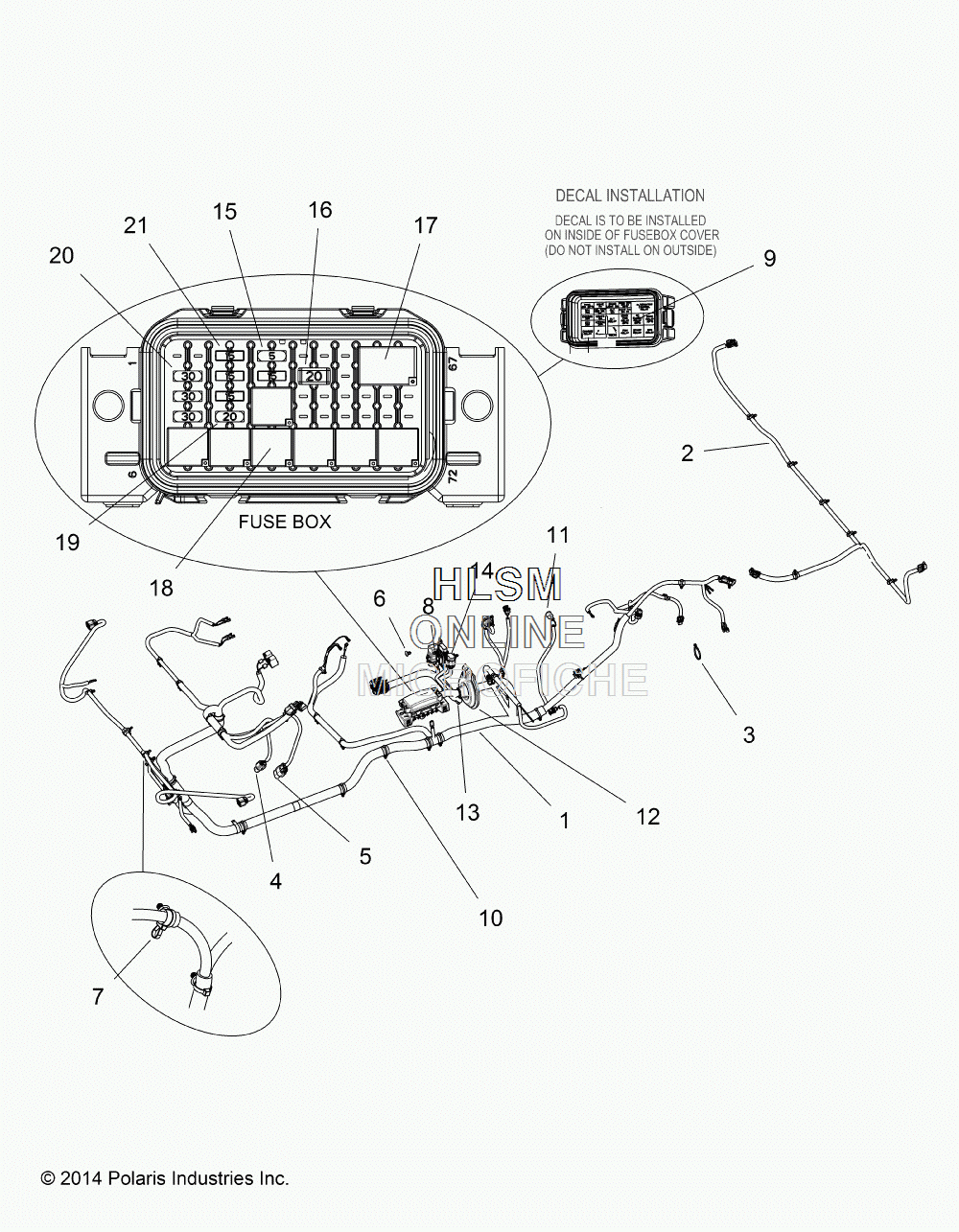

WIRE HARNESSES для Polaris RANGER 1000 DIESEL PRAIRIE GREEN [R15RTAD1EA] - 2015 года выпуска
-
№АртикулНазвание
-
12412868 HARNESS, CHASSIS, EPS, DSLHARNESS, CHASSIS, EPS, DSL
-
22412870 HARNESS, BOX, DSLHARNESS, BOX, DSL
-
37080138 PANDUIT, STRAPPANDUIT, STRAP
-
44014235 CONNECTOR, CAP, EPS, SIGNALCONNECTOR, CAP, EPS, SIGNAL
-
54014236 CONNECTOR, CAP, EPS POWERCONNECTOR, CAP, EPS POWER
-
67670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
77081916 CLIP, DOUBLE CABLE TIECLIP, DOUBLE CABLE TIE
-
87670101 CLIP, XMAS TREECLIP, XMAS TREE
-
97180966 DECAL, FUSEBOX, DSLDECAL, FUSEBOX, DSL
-
107081496 CLIP, ROUTINGCLIP, ROUTING
-
115451468 BOOT, OIL PRESSURE SWITCHBOOT, OIL PRESSURE SWITCH
-
125414435 GROMMETGROMMET
-
134013200 TVS, 30VOLTTVS, 30VOLT
-
144012170 COVER, DIAGNOSTIC, W/CLIPCOVER, DIAGNOSTIC, W/CLIP
-
154011652 FUSE 5A, MINI BLADEFUSE 5A, MINI BLADE
-
164011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
174011284 RELAY, SPDT, SERIERS 301, SEALEDRELAY, SPDT, SERIERS 301, SEALED
-
184011283 RELAY, SPDT, SERIES 303, SEALEDRELAY, SPDT, SERIES 303, SEALED
-
192434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
202434015 FUSE, PARK, 30 AMPFUSE, PARK, 30 AMP
-
212410280 FUSE, MINI BLADE, 15 AMPFUSE, MINI BLADE, 15 AMP
