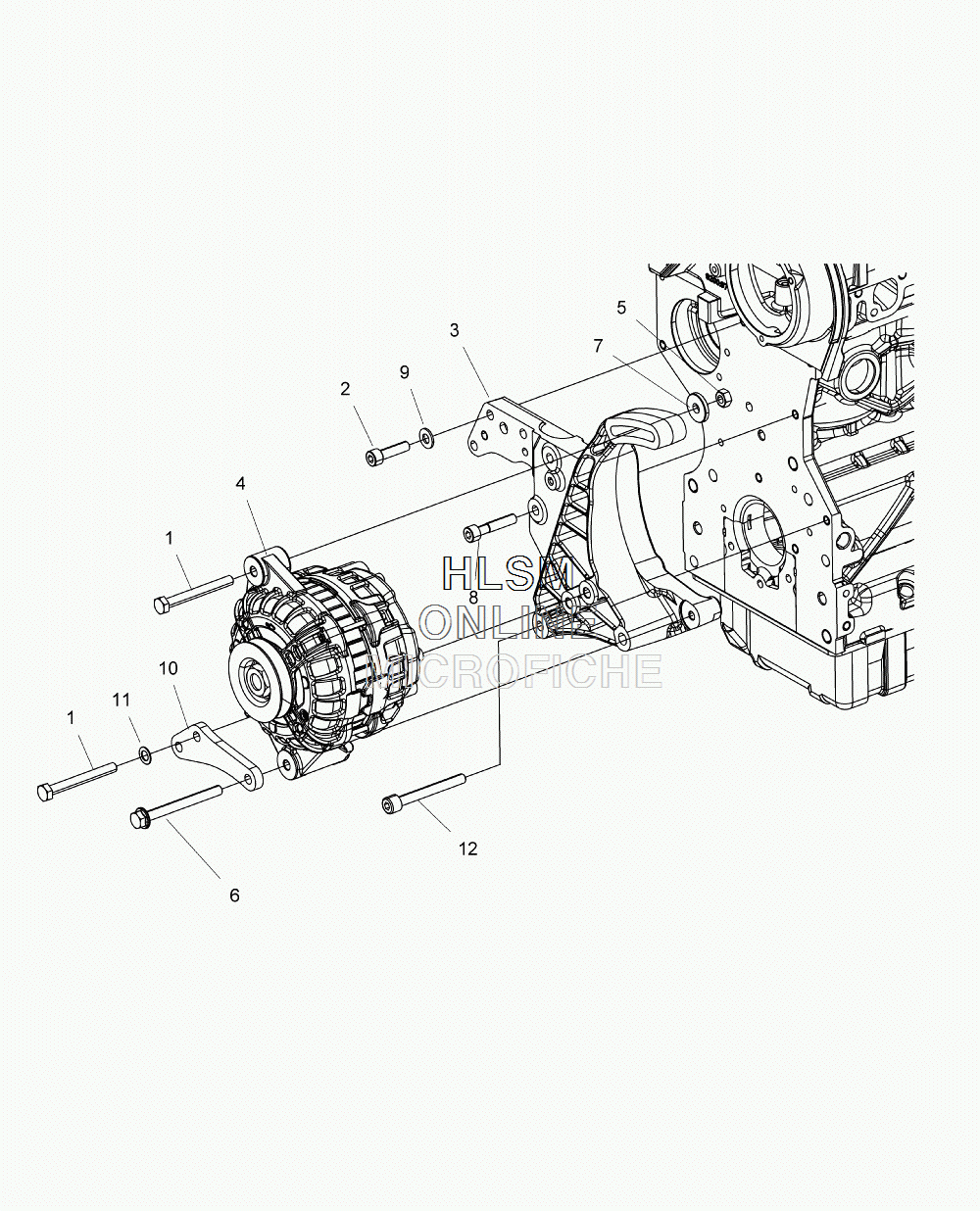

ALTERNATOR для Polaris RANGER 1000 DIESEL PRAIRIE GREEN [R15RTAD1EA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3040025 SCREW, HXHD
    SCREW, HXHD
  • 2
    3040227 SCREW, SCHD, M8X30
    SCREW, SCHD, M8X30
  • 3
    3040187 BRACKET, ALTERNATOR
    BRACKET, ALTERNATOR
  • 4
    3040001 ALTERNATOR
    ALTERNATOR
  • 5
    3040054 NUT, HEX, M8
    NUT, HEX, M8
  • 6
    3040029 SCREW, M8X80
    SCREW, M8X80
  • 7
    3040150 WASHER, 8.4X25X3
    WASHER, 8.4X25X3
  • 8
    3040220 SCREW SCHD CAP, M8X40
    SCREW SCHD CAP, M8X40
  • 9
    3040146 WASHER, 8.4X17X1.6
    WASHER, 8.4X17X1.6
  • 10
    3040185 BRACKET, FRONT
    BRACKET, FRONT
  • 11
    3040143 WASHER, BELLE, 8.4X15X0.8
    WASHER, BELLE, 8.4X15X0.8
  • 12
    3040296 SCREW, M8X70
    SCREW, M8X70
