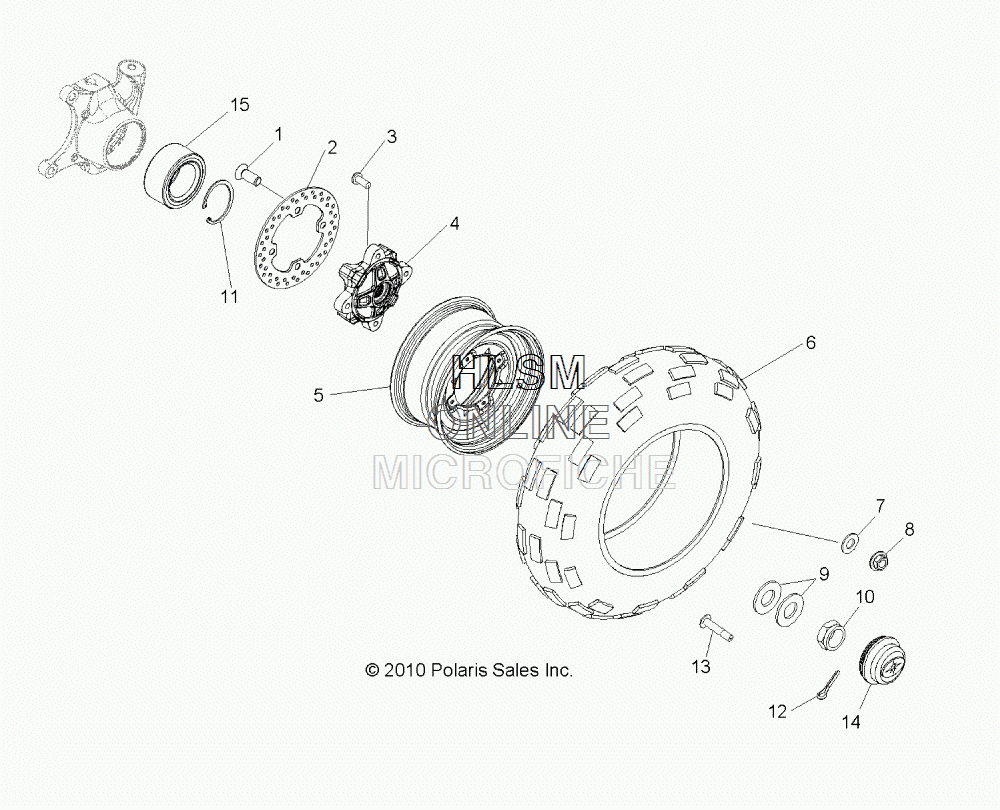

WHEELS - FRONT для Polaris RANGER 900 DIESEL - SAGEBRUSH GREEN [R12TH90DG] - 2012 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7518978 SCREW
    SCREW
  • 2
    5254999 DISC, BRAKE, FRONT (BUILT 1/16/11 AND AFTER)
    DISC, BRAKE, FRONT (BUILT 1/16/11 AND AFTER)
  • 3
    7517871 STUD
    STUD
  • 4
    5137659-067 HUB, WHEEL, FRONT, BLACK
    HUB, WHEEL, FRONT, BLACK
  • 5
    1520263-067 RIM, FRONT, BLACK
    RIM, FRONT, BLACK
  • 6
    5413961 TIRE, 25X10-12
    TIRE, 25X10-12
  • 7
    7556242 WASHER, FLAT
    WASHER, FLAT
  • 8
    7542459 NUT, FLANGED
    NUT, FLANGED
  • 9
    7555796 WASHER, CONE
    WASHER, CONE
  • 10
    7547406 NUT, CASTLE
    NUT, CASTLE
  • 11
    7710440 RING, RETAINING, INTERNAL
    RING, RETAINING, INTERNAL
  • 12
    7661402 PIN, COTTER
    PIN, COTTER
  • 13
    1525017 VALVE, RIM
    VALVE, RIM
  • 14
    5413215 CAP, RIM
    CAP, RIM
  • 15
    3514699 BEARING, BALL, SEALED
    BEARING, BALL, SEALED
