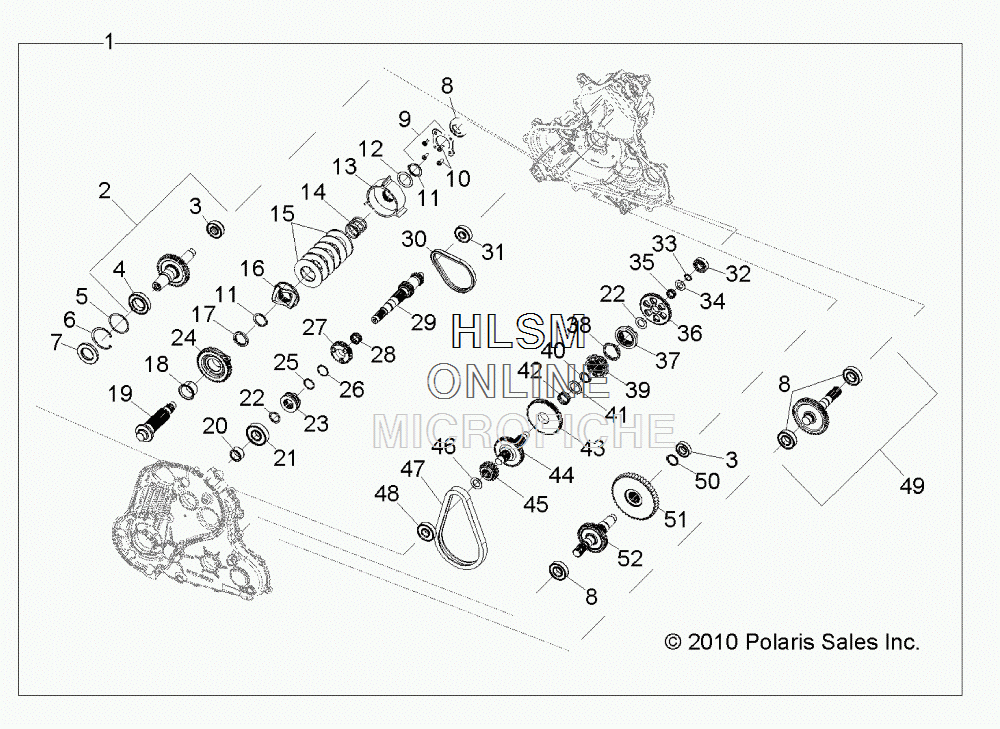

MAIN GEARCASE INTERNAL (2X4) для Polaris RANGER 900 DIESEL - SAGEBRUSH GREEN [R12TH90DG] - 2012 года выпуска`
-
№АртикулНазвание
-
11332980 ASM., GEARCASE MAIN (INCL. ALL)ASM., GEARCASE MAIN (INCL. ALL)
-
22204333 ASM., PRIMARY SHAFTASM., PRIMARY SHAFT
-
33234657 BEARING, BALLBEARING, BALL
-
43233265 BEARING, BALLBEARING, BALL
-
52204268 KIT, SHIMKIT, SHIM
-
63234741 RING, RETAININGRING, RETAINING
-
73234769 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
83233019 BEARINGBEARING
-
93235198 SUBASM., BEARING, COVERSUBASM., BEARING, COVER
-
103234309 SCREWSCREW
-
113233364 RING, RETAININGRING, RETAINING
-
122204264 KIT, SHIMKIT, SHIM
-
133234696 CUP, BELLEVILLECUP, BELLEVILLE
-
143234999 SPRING, COMPRESSIONSPRING, COMPRESSION
-
153234648 WASHER, BELLEVILLEWASHER, BELLEVILLE
-
163234705 CAM, COMPENSATORCAM, COMPENSATOR
-
173234697 SPACER, COMPENSATOR, THRUSTSPACER, COMPENSATOR, THRUST
-
183234684 BEARING, FLANGEBEARING, FLANGE
-
193234721 SHAFT, COMPENSATORSHAFT, COMPENSATOR
-
203234758 COLLARCOLLAR
-
213233020 BEARINGBEARING
-
223234248 WASHER, THRUSTWASHER, THRUST
-
233235190 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
242204330 GEAR, COMPENSATOR, 54TGEAR, COMPENSATOR, 54T
-
253234641 RING, RETAININGRING, RETAINING
-
263234757 WASHER, THRUSTWASHER, THRUST
-
273235133 GEAR, HELICAL, 42TGEAR, HELICAL, 42T
-
283234759 BEARING, NEEDLEBEARING, NEEDLE
-
293234761 SHAFT, INPUT, 27TSHAFT, INPUT, 27T
-
303234737 CHAIN, SILENTCHAIN, SILENT
-
313234652 BEARING, BALLBEARING, BALL
-
323234274 BEARING, BALLBEARING, BALL
-
333234318 RING, RETAININGRING, RETAINING
-
343234644 SHIMSHIM
-
353234655 BEARING, NEEDLE CAGEBEARING, NEEDLE CAGE
-
363234707 SPROCKET, 48TSPROCKET, 48T
-
373235341 DOG, ENGAGEMENT, REV/LOWDOG, ENGAGEMENT, REV/LOW
-
383234688 SPRING, WAVESPRING, WAVE
-
393235385 DOG, ENGAGEMENT, LOWDOG, ENGAGEMENT, LOW
-
403234327 RING, RETAININGRING, RETAINING
-
413234646 WASHER, THRUSTWASHER, THRUST
-
423234656 BEARING, NEEDLEBEARING, NEEDLE
-
433234706 GEAR, 67TGEAR, 67T
-
443234774 SHAFT, REVERSE, 53TSHAFT, REVERSE, 53T
-
452204331 SPROCKET, 19TSPROCKET, 19T
-
463234643 SHIMSHIM
-
473235245 CHAIN, SILENTCHAIN, SILENT
-
483234651 BEARING, BALLBEARING, BALL
-
493234723 SUBASM., OUTPUT, FRONTSUBASM., OUTPUT, FRONT
-
503233699 RING, RETAININGRING, RETAINING
-
512204332 SPROCKET, 47TSPROCKET, 47T
-
522204329 SHAFT, OUTPUTSHAFT, OUTPUT
