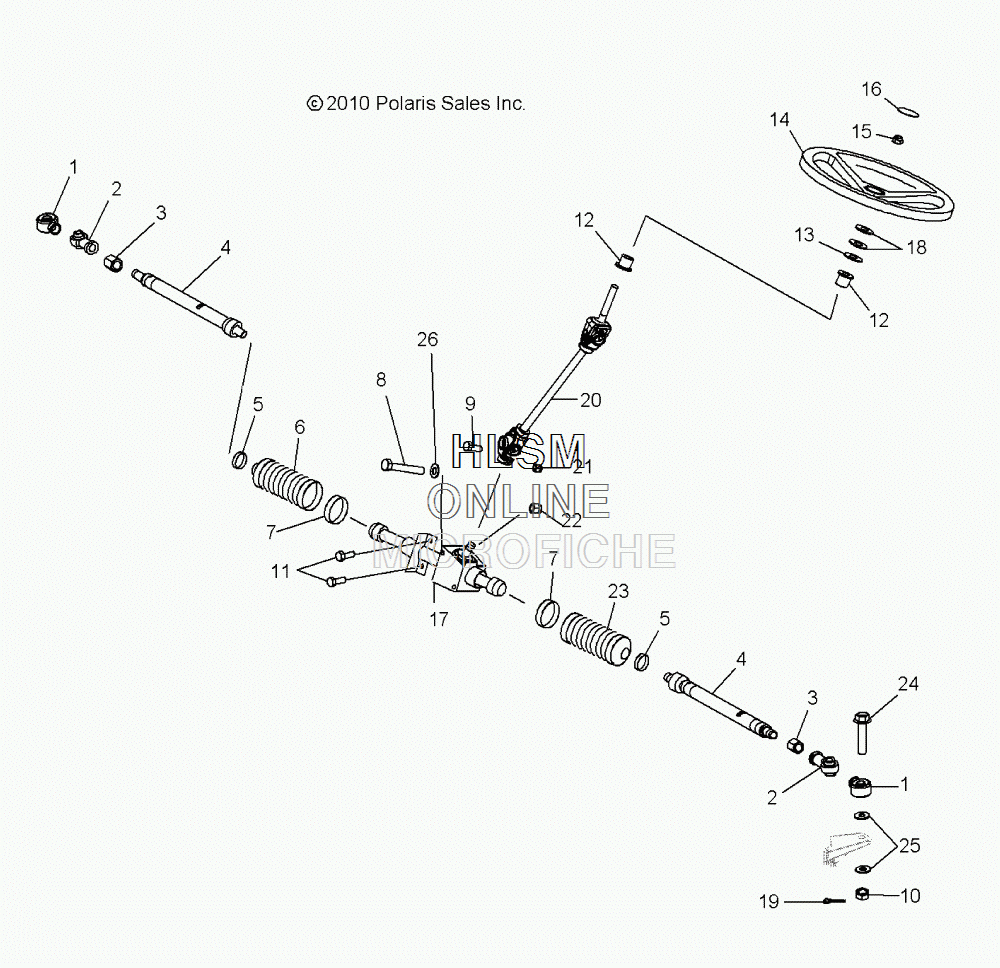

STEERING ASM. для Polaris RANGER EV 4X4 INTL - SAGE BLUE [R11RC08GA] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5411920 BOOT-SEAL, ROD END, 10MM
    BOOT-SEAL, ROD END, 10MM
  • 2
    7061054 ROD-END, 10MM, 1/2-20LH, 42 DEG (USE W/ MAVAL STEERING BOX)
    ROD-END, 10MM, 1/2-20LH, 42 DEG (USE W/ MAVAL STEERING BOX)
  • 2
    TBD ROD END (USE W/ RANE STEERING BOX)
    ROD END (USE W/ RANE STEERING BOX)
  • 3
    7547028 NUT, JAM (USE W/ MAVAL STEERING BOX)
    NUT, JAM (USE W/ MAVAL STEERING BOX)
  • 3
    TBD NUT, JAM (USE W/ RANE STEERING BOX)
    NUT, JAM (USE W/ RANE STEERING BOX)
  • 4
    TBD TIE ROD, INNER (USE W/ RANE STEERING BOX)
    TIE ROD, INNER (USE W/ RANE STEERING BOX)
  • 5
    7080978 CLAMP, BOOT, SMALL (USE W/ MAVAL STEERING BOX)
    CLAMP, BOOT, SMALL (USE W/ MAVAL STEERING BOX)
  • 5
    TBD CLAMP, BOOT, SMALL (USE W/ RANE STEERING BOX)
    CLAMP, BOOT, SMALL (USE W/ RANE STEERING BOX)
  • 6
    5412013 BOOT, PASSENGER, SIDE RACK (USE W/ MAVAL STEERING BOX)
    BOOT, PASSENGER, SIDE RACK (USE W/ MAVAL STEERING BOX)
  • 6
    TBD BOOT, PASSENGER, SIDE RACK (USE W/ RANE STEERING BOX)
    BOOT, PASSENGER, SIDE RACK (USE W/ RANE STEERING BOX)
  • 7
    7080979 CLAMP, BOOT, LARGE (USE W/ MAVAL STEERING BOX)
    CLAMP, BOOT, LARGE (USE W/ MAVAL STEERING BOX)
  • 7
    TBD CLAMP, BOOT, LARGE (USE W/ RANE STEERING BOX)
    CLAMP, BOOT, LARGE (USE W/ RANE STEERING BOX)
  • 8
    7515382 BOLT
    BOLT
  • 9
    7517827 SCREW, HEXHD, M10X35
    SCREW, HEXHD, M10X35
  • 10
    7547177 NUT-M10X1.25-HX-LOCK-Y
    NUT-M10X1.25-HX-LOCK-Y
  • 11
    7512371 BOLT, 5/16-18X3/4
    BOLT, 5/16-18X3/4
  • 12
    5434106 BUSHING, SHAFT, STEERING
    BUSHING, SHAFT, STEERING
  • 13
    7556301 BUSHING
    BUSHING
  • 14
    1823623 WHEEL, STEERING 14"
    WHEEL, STEERING 14"
  • 15
    7547188 NUT-M16X2-6G
    NUT-M16X2-6G
  • 16
    5436536 CAP, STEERING WHEEL
    CAP, STEERING WHEEL
  • 17
    1823465 ASM., GEAR BOX, STEERING (INCL. 2-7, 23) (BUILT 8/19/10 AND BEFORE) (BUILT 9/07/10 AND AFTER) (MAVAL)
    ASM., GEAR BOX, STEERING (INCL. 2-7, 23) (BUILT 8/19/10 AND BEFORE) (BUILT 9/07/10 AND AFTER) (MAVAL)
  • 17
    1823552 ASM., GEAR BOX, STEERING (INCL. 2-7, 23) (BUILT 8/20/10 TO 9/06/10) (RANE)
    ASM., GEAR BOX, STEERING (INCL. 2-7, 23) (BUILT 8/20/10 TO 9/06/10) (RANE)
  • 18
    7556063 WASHER, WAVE
    WASHER, WAVE
  • 19
    7661203 PIN, COTTER
    PIN, COTTER
  • 20
    1823726 SHAFT, STEERING
    SHAFT, STEERING
  • 21
    7547385 NUT-NY INS, M10X1.5, HEX, ZINC, YW
    NUT-NY INS, M10X1.5, HEX, ZINC, YW
  • 22
    7542324 NUT, NYLOK(10)
    NUT, NYLOK(10)
  • 23
    5412012 BOOT, DRIVER SIDE, RACK (USE W/ MAVAL STEERING BOX)
    BOOT, DRIVER SIDE, RACK (USE W/ MAVAL STEERING BOX)
  • 23
    TBD BOOT, DRIVER SIDE, RACK (USE W/ RANE STEERING BOX)
    BOOT, DRIVER SIDE, RACK (USE W/ RANE STEERING BOX)
  • 24
    7517909 BOLT-M10X1.25X65, HX WASH HD
    BOLT-M10X1.25X65, HX WASH HD
  • 25
    7556099 WASHER
    WASHER
  • 26
    7558402 WASHER, FLAT
    WASHER, FLAT
