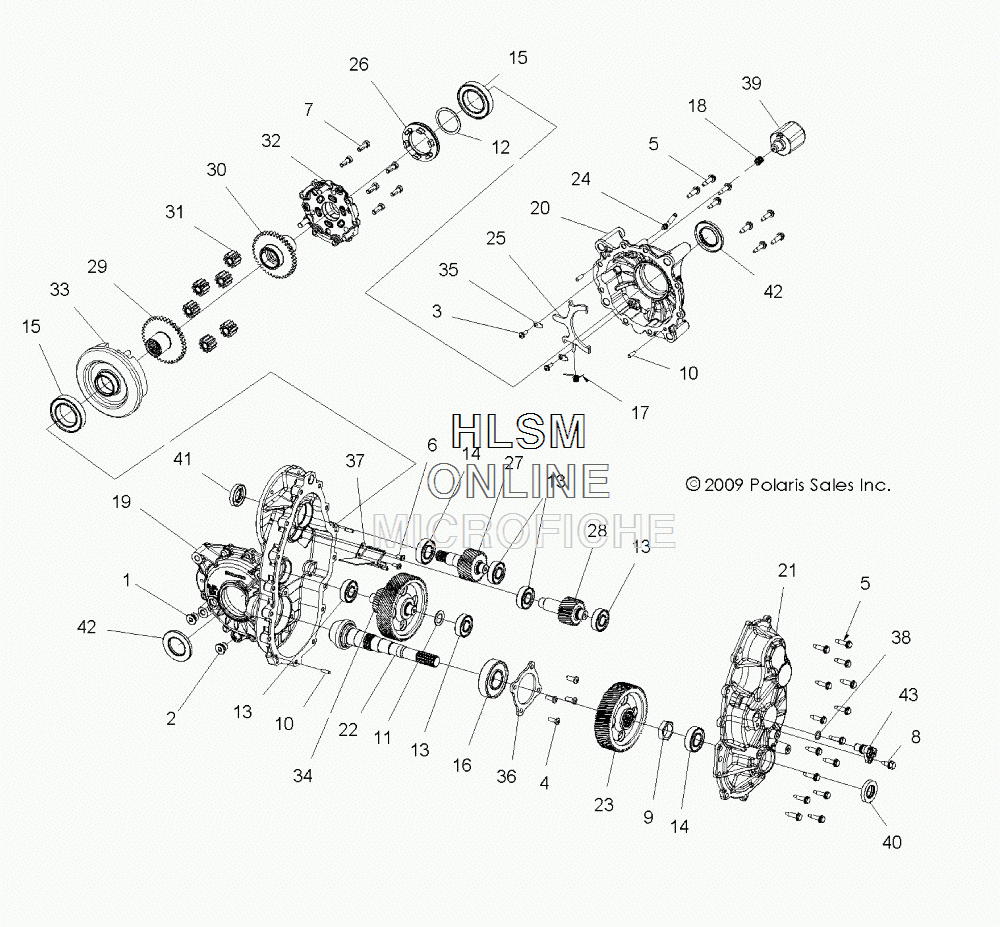

MAIN GEARCASE для Polaris RANGER EV 4X4 INTL - SAGE BLUE [R11RC08GA] - 2011 года выпуска

  • №
    Артикул
    Название
  • 25
    1332793 ASM., GEARCASE, EDT
    ASM., GEARCASE, EDT
  • 1
    3234755 PLUG-SKT HD 1SO 6149, M18 X 1.5
    PLUG-SKT HD 1SO 6149, M18 X 1.5
  • 2
    3234756 PLUG-SOCKET HEAD W/MAG, M18X1.5
    PLUG-SOCKET HEAD W/MAG, M18X1.5
  • 3
    3234329 SCREW, HEXFLANGEHEAD, M8X1.25X30
    SCREW, HEXFLANGEHEAD, M8X1.25X30
  • 4
    3235094 SCREW-HX, BTN HD, M8 X 1.25 X 20
    SCREW-HX, BTN HD, M8 X 1.25 X 20
  • 5
    3234898 SCREW-HEXFLANGEHEAD, M8X1.25X30
    SCREW-HEXFLANGEHEAD, M8X1.25X30
  • 6
    3238095 SCREW
    SCREW
  • 7
    3235096 SCREW-CAP HH, M8 X 1.25 X 20
    SCREW-CAP HH, M8 X 1.25 X 20
  • 8
    3235097 SCREW-HEX, FLG HD, M8 X 1.25 X 20
    SCREW-HEX, FLG HD, M8 X 1.25 X 20
  • 9
    3235098 NUT-JAM 1 3/16-12 UN 28
    NUT-JAM 1 3/16-12 UN 28
  • 10
    3234330 PIN, DOWEL, 6 X 20
    PIN, DOWEL, 6 X 20
  • 11
    3233176 WASHER, THRUST
    WASHER, THRUST
  • 12
    3233554 SHIM
    SHIM
  • 13
    3233018 BEARING, BALL
    BEARING, BALL
  • 14
    3233019 BEARING
    BEARING
  • 15
    3233268 BEARING, BALL
    BEARING, BALL
  • 16
    3235099 BEARING-BALL, 6307 C3(35X80X21)
    BEARING-BALL, 6307 C3(35X80X21)
  • 17
    3234276 SPRING, TORSION RETURN
    SPRING, TORSION RETURN
  • 18
    3234277 SPRING, COMPRSSN.54ODX.44IDX.05
    SPRING, COMPRSSN.54ODX.44IDX.05
  • 19
    3235167 CASE, MAIN
    CASE, MAIN
  • 20
    3234927 COVER
    COVER
  • 21
    3235101 COVER, EDT
    COVER, EDT
  • 22
    3235102 SHAFT, PINION, 10T, SPIRAL BEVEL GEAR
    SHAFT, PINION, 10T, SPIRAL BEVEL GEAR
  • 23
    3235103 GEAR, 82T, HELICAL
    GEAR, 82T, HELICAL
  • 24
    3234230 TUBE-VENT, 90-1/4" HOSE
    TUBE-VENT, 90-1/4" HOSE
  • 25
    3234285 FORK, PIVOT SHIFT, REAR
    FORK, PIVOT SHIFT, REAR
  • 26
    3234928 DOG, ENGAGEMENT
    DOG, ENGAGEMENT
  • 27
    3235247 SUBASM., SHAFT, MOTOR, 34T (INCL. QTY 1 OF 13, 14)
    SUBASM., SHAFT, MOTOR, 34T (INCL. QTY 1 OF 13, 14)
  • 28
    3235248 SUBASM., SHAFT, IDLER, 28T (INCL. QTY 2 OF 13)
    SUBASM., SHAFT, IDLER, 28T (INCL. QTY 2 OF 13)
  • 29
    3234929 SUB ASM., 39T, GEAR SIDE
    SUB ASM., 39T, GEAR SIDE
  • 30
    3234930 SUB ASM., 39T, SIDE GEAR, DISCONNECT (INCL. BEARING)
    SUB ASM., 39T, SIDE GEAR, DISCONNECT (INCL. BEARING)
  • 31
    3234931 GEAR, PLANET SUB ASM. (INCL. BEARING)
    GEAR, PLANET SUB ASM. (INCL. BEARING)
  • 32
    3234933 COVER, CARRIER SUB ASM. (INCL. BEARING)
    COVER, CARRIER SUB ASM. (INCL. BEARING)
  • 33
    3235106 SUB ASM., GEAR, 31T, SPIRAL BEVEL (INCL. BEARING)
    SUB ASM., GEAR, 31T, SPIRAL BEVEL (INCL. BEARING)
  • 34
    3235166 SUB ASM., SHAFT BLANK INTERMEDIATE, 28T
    SUB ASM., SHAFT BLANK INTERMEDIATE, 28T
  • 35
    3234934 RETAINER, FORK
    RETAINER, FORK
  • 36
    3235108 COVER, BEARING PINION
    COVER, BEARING PINION
  • 37
    3235109 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 38
    3234302 O-RING
    O-RING
  • 39
    3234298 SOLENOID
    SOLENOID
  • 40
    3235110 SEAL, TRIPLE LIP 24X47X8
    SEAL, TRIPLE LIP 24X47X8
  • 41
    3234892 SEAL-VITON, TRIPLE LIP
    SEAL-VITON, TRIPLE LIP
  • 42
    3234793 SEAL-TRIPLE LIP, 40X80X10
    SEAL-TRIPLE LIP, 40X80X10
  • 43
    4012167 SENSOR, SPEED
    SENSOR, SPEED
