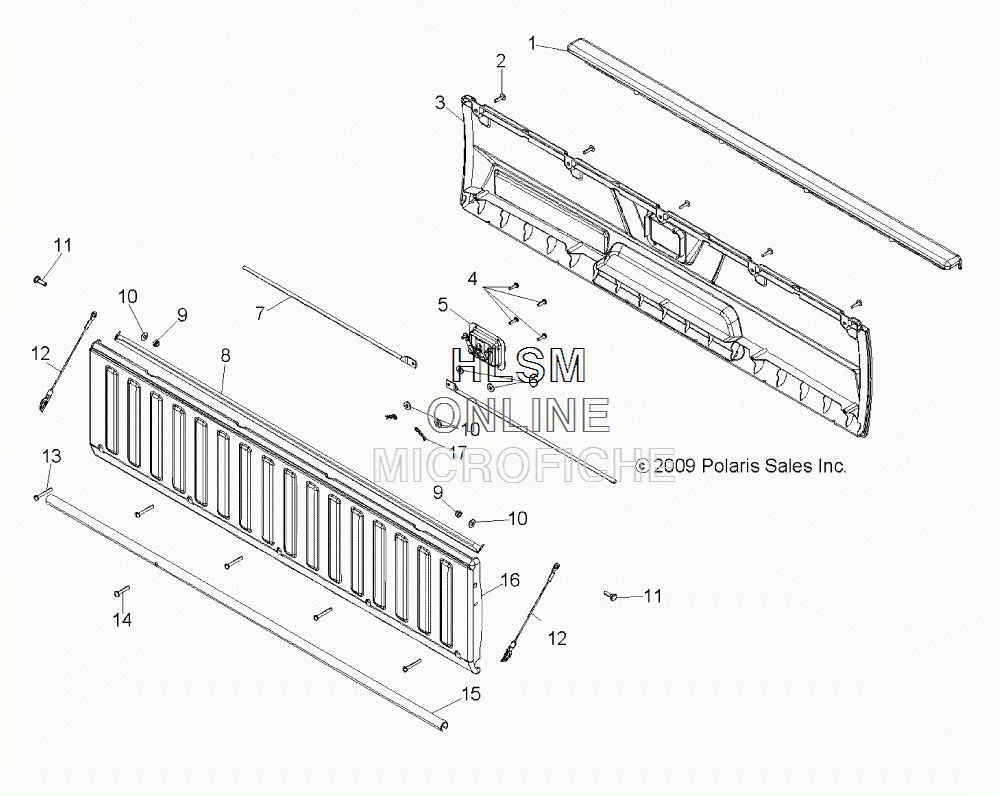

TAILGATE ASM. для Polaris RANGER 6X6 800 EFI - SOLAR RED [R11HR76AR] - 2011 года выпуска

  • №
    Артикул
    Название
  • 13
    1203784-070 ASM., TAILGATE (BLACK) (INCL. ALL)
    ASM., TAILGATE (BLACK) (INCL. ALL)
  • 1
    5435548-070 CAP, TAILGATE (BLACK)
    CAP, TAILGATE (BLACK)
  • 2
    7518158 SCREW-#14X1 HI/LO-PH-PN TRX-M
    SCREW-#14X1 HI/LO-PH-PN TRX-M
  • 3
    5437565-070 PANEL, TAILGATE, OUTER (BLACK)
    PANEL, TAILGATE, OUTER (BLACK)
  • 4
    7512026 SCREW
    SCREW
  • 5
    7081380 LATCH, PADDLE
    LATCH, PADDLE
  • 6
    7555748 WASHER, RUBBER BACK
    WASHER, RUBBER BACK
  • 7
    5134468 ROD
    ROD
  • 8
    5249473 BRACKET, TAILGATE
    BRACKET, TAILGATE
  • 9
    7547484 NUT-HEX-1/4-20, NTE ZY3 NYL
    NUT-HEX-1/4-20, NTE ZY3 NYL
  • 10
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 11
    7518376 BOLT
    BOLT
  • 12
    7081215 CABLE, TAILGATE
    CABLE, TAILGATE
  • 13
    7518377 SCREW-1/4X2 HI/LO-PH-PN TRX-M
    SCREW-1/4X2 HI/LO-PH-PN TRX-M
  • 14
    7517685 SCREW
    SCREW
  • 15
    5134469 TUBE, TAILGATE
    TUBE, TAILGATE
  • 16
    5435549-070 PANEL-TAILGATE, INNER (BLACK)
    PANEL-TAILGATE, INNER (BLACK)
  • 17
    7661644 PIN, HITCH
    PIN, HITCH
