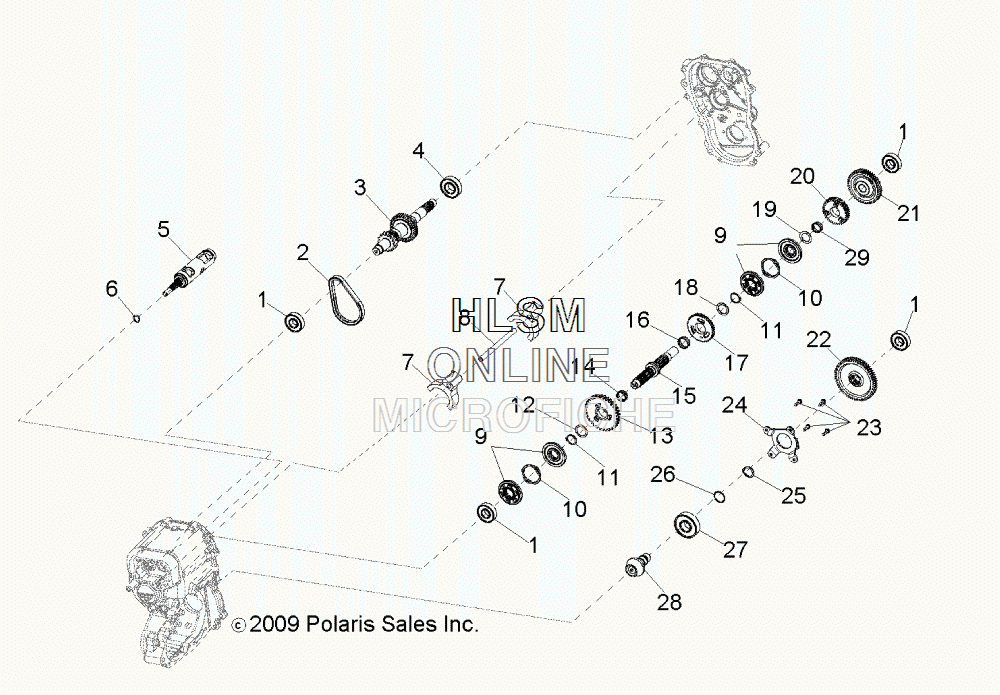

MAIN GEARCASE INTERNAL для Polaris RANGER 6X6 800 EFI - SOLAR RED [R11HR76AR] - 2011 года выпуска
-
№АртикулНазвание
-
171332702 ASM., MAIN GEARCASEASM., MAIN GEARCASE
-
13233018 BEARINGBEARING
-
23234264 CHAIN, .25P X .40W X 50LCHAIN, .25P X .40W X 50L
-
43233019 BEARING, BALLBEARING, BALL
-
53234212 DRUM, SHIFTDRUM, SHIFT
-
63233840 O-RINGO-RING
-
73234220 SUB-ASM., SHIFT FORK W/PINSUB-ASM., SHIFT FORK W/PIN
-
83233860 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
93233875 ENGAGEMENT DOGENGAGEMENT DOG
-
103234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
113233850 RING, RETAININGRING, RETAINING
-
123233851 WASHERWASHER
-
133233852 GEAR-33T, 6 FACE ENGAGEMENTGEAR-33T, 6 FACE ENGAGEMENT
-
143233718 BEARING, NEEDLEBEARING, NEEDLE
-
153233853 SHAFT, REVERSESHAFT, REVERSE
-
163233103 BEARING, NEEDLEBEARING, NEEDLE
-
173234290 SPROCKET 38T 6-FACESPROCKET 38T 6-FACE
-
183233894 WASHERWASHER
-
193233855 WASHERWASHER
-
233234086 SCREWSCREW
-
243234122 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
253233106 RING, RETAININGRING, RETAINING
-
263233357 SPACERSPACER
-
273234055 BEARINGBEARING
-
283234911 SUB. ASM. GROUND SPIRAL BEVEL (INCL. REF. 4 FROM DRIVE TRAIN,SUB. ASM. GROUND SPIRAL BEVEL (INCL. REF. 4 FROM DRIVE TRAIN,
-
293233009 BEARING, NEEDLEBEARING, NEEDLE
