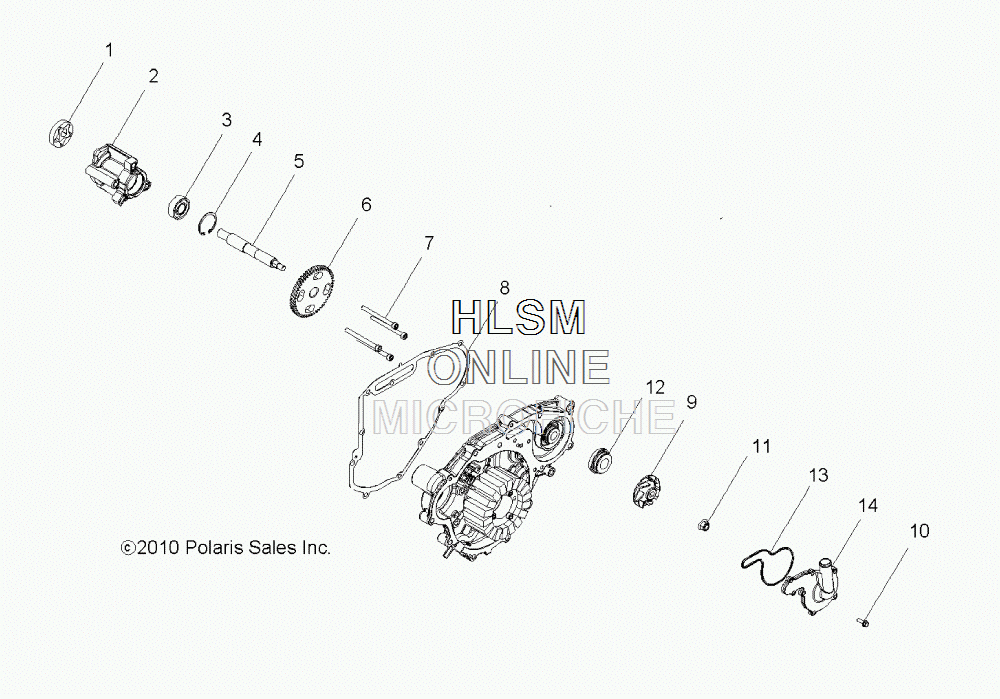

OIL PUMP AND WATER PUMP для Polaris RANGER 6X6 800 EFI - SAGEBRUSH GREEN METALLIC [R11HR76AG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 7
    2203012 KIT, OIL PUMP (INCL. 1-6)
    KIT, OIL PUMP (INCL. 1-6)
  • 1
    1202588 ASM-GEROTOR 8.5MM
    ASM-GEROTOR 8.5MM
  • 2
    5135094 HOUSING, OIL PUMP
    HOUSING, OIL PUMP
  • 3
    3514561 BEARING-BALL, 15X35X11
    BEARING-BALL, 15X35X11
  • 4
    7710531 RING-RETAINING, 1.281X.130
    RING-RETAINING, 1.281X.130
  • 5
    5135650 SHAFT, OIL/WATER PUMP
    SHAFT, OIL/WATER PUMP
  • 7
    7517807 SCREW-M6X1.0X70MM SOC/CAP-Y/D
    SCREW-M6X1.0X70MM SOC/CAP-Y/D
  • 8
    5812936 GASKET, COVER, MAG
    GASKET, COVER, MAG
  • 9
    5433684 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 10
    7519224 SCREW-HXFL-M6X1.0X20 8.8 ZY3D204
    SCREW-HXFL-M6X1.0X20 8.8 ZY3D204
  • 11
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 12
    3610075 SEAL-WATERPUMP15X36/40X20, FACE
    SEAL-WATERPUMP15X36/40X20, FACE
  • 13
    5812571 SEAL, WATER PUMP
    SEAL, WATER PUMP
  • 14
    5631882 COVER, WATER PUMP
    COVER, WATER PUMP
