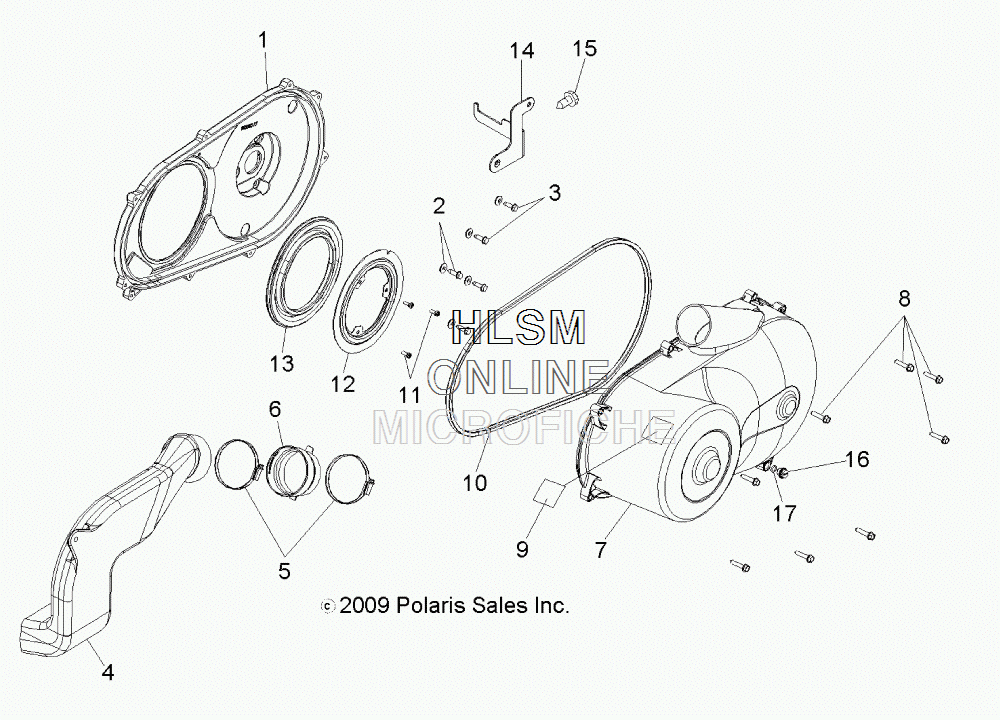

CLUTCH COVER для Polaris RANGER 6X6 800 EFI - SAGEBRUSH GREEN METALLIC [R11HR76AG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2633120 ASM., COVER, CLUTCH, INNER (INCL. 10, 13)
    ASM., COVER, CLUTCH, INNER (INCL. 10, 13)
  • 2
    7517599 ASM., BOLT/WASHER (INCL. 2, 3)
    ASM., BOLT/WASHER (INCL. 2, 3)
  • 2
    7555748 WASHER
    WASHER
  • 3
    7517312 SCREW
    SCREW
  • 4
    5438050 DUCT, CLUTCH, AIR OUTLET
    DUCT, CLUTCH, AIR OUTLET
  • 5
    7081279 CLAMP, NARROW BAND 70-90MM
    CLAMP, NARROW BAND 70-90MM
  • 6
    5435684 HOSE, CLUTCH AIR OUTLET
    HOSE, CLUTCH AIR OUTLET
  • 7
    2633262 ASM., CLUTCH COVER, OUTER (INCL. 16, 17)
    ASM., CLUTCH COVER, OUTER (INCL. 16, 17)
  • 8
    7512094 SCREW
    SCREW
  • 9
    7172563 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
  • 10
    5521738 SEAL, COVER, CLUTCH, OUTER
    SEAL, COVER, CLUTCH, OUTER
  • 11
    7517867 SCREW, M5X0.8X10, PHPN ZY, L/W SEM
    SCREW, M5X0.8X10, PHPN ZY, L/W SEM
  • 12
    5244527 BRACKET, RETAINER SEAL
    BRACKET, RETAINER SEAL
  • 13
    5412635 SEAL, COVER, CLUTCH, INNER
    SEAL, COVER, CLUTCH, INNER
  • 14
    5249223 BRACKET, CLUTCH OUTLET
    BRACKET, CLUTCH OUTLET
  • 15
    7518555 BOLT-M8X1.25X20, HXFLG, TAP/R-OD
    BOLT-M8X1.25X20, HXFLG, TAP/R-OD
  • 16
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 17
    5410542 O-RING
    O-RING
