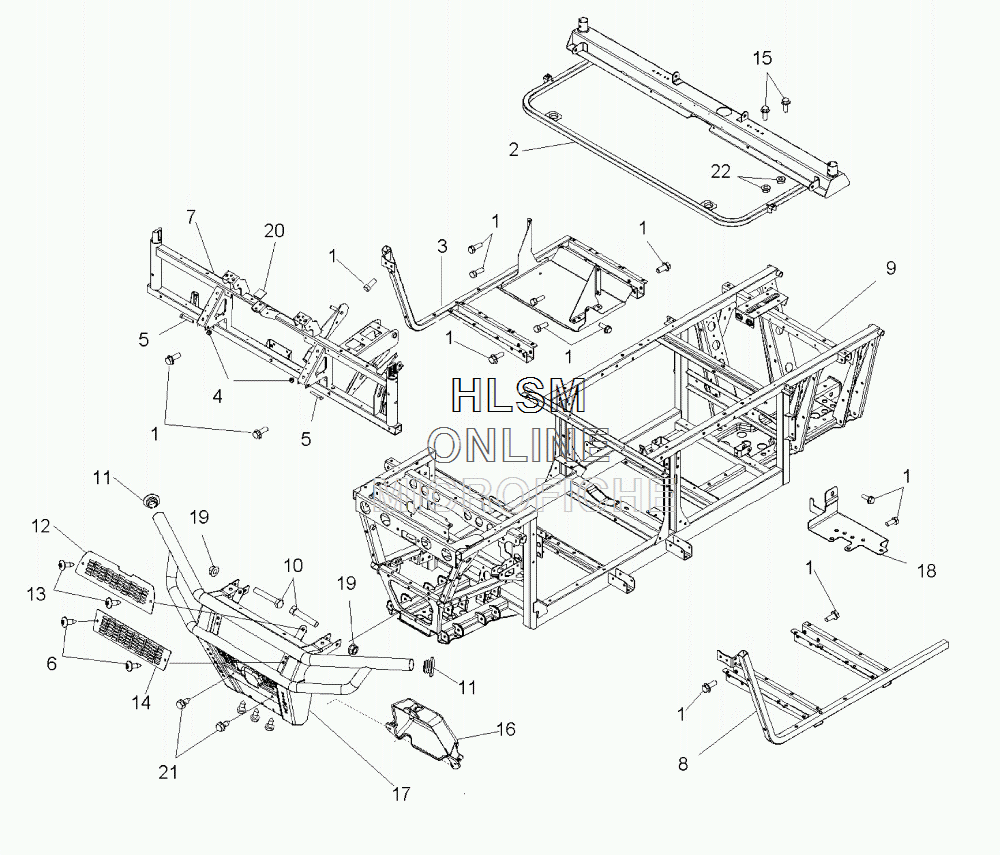

FRAME AND FRONT BUMPER для Polaris RANGER 4X4 500 EFI SAGE BRUSH METALLIC [R10TH50AG] - 2010 года выпуска
-
№АртикулНазвание
-
17518555 SCREWSCREW
-
21017380-067 BASE, CAB/SEAT (BLACK)BASE, CAB/SEAT (BLACK)
-
31016255-329 SUPPORT, FLOOR, RIGHT HAND (BLACK)SUPPORT, FLOOR, RIGHT HAND (BLACK)
-
47547333 NUT, FLANGENUT, FLANGE
-
57518563 BOLTBOLT
-
67518981 SCREWSCREW
-
71017325-067 SUPPORT, CAB, FRONT (BLACK)SUPPORT, CAB, FRONT (BLACK)
-
81016412-329 SUPPORT, FLOOR, LEFT HAND (BLACK)SUPPORT, FLOOR, LEFT HAND (BLACK)
-
91017345-067 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
-
107518473 BOLTBOLT
-
115434191 CAP, BUMPERCAP, BUMPER
-
125438241-070 SCREEN, FASCIA (BLACK)SCREEN, FASCIA (BLACK)
-
137518196 SCREWSCREW
-
145438240-070 SCREEN, BUMPER, UPPER (BLACK)SCREEN, BUMPER, UPPER (BLACK)
-
157517281 SCREWSCREW
-
165438181-070 BRACKET, BUMPER GUARD (BLACK)BRACKET, BUMPER GUARD (BLACK)
-
171016310-521 BUMPER (BLACK)BUMPER (BLACK)
-
185253891-329 BRACKET, OIL TANK SUPPORT (BLACK)BRACKET, OIL TANK SUPPORT (BLACK)
-
197547313 NUT, FLANGENUT, FLANGE
-
205813421 FOAM, HOOD SUPPORTFOAM, HOOD SUPPORT
-
217518158 SCREWSCREW
-
227517317 NUTNUT
