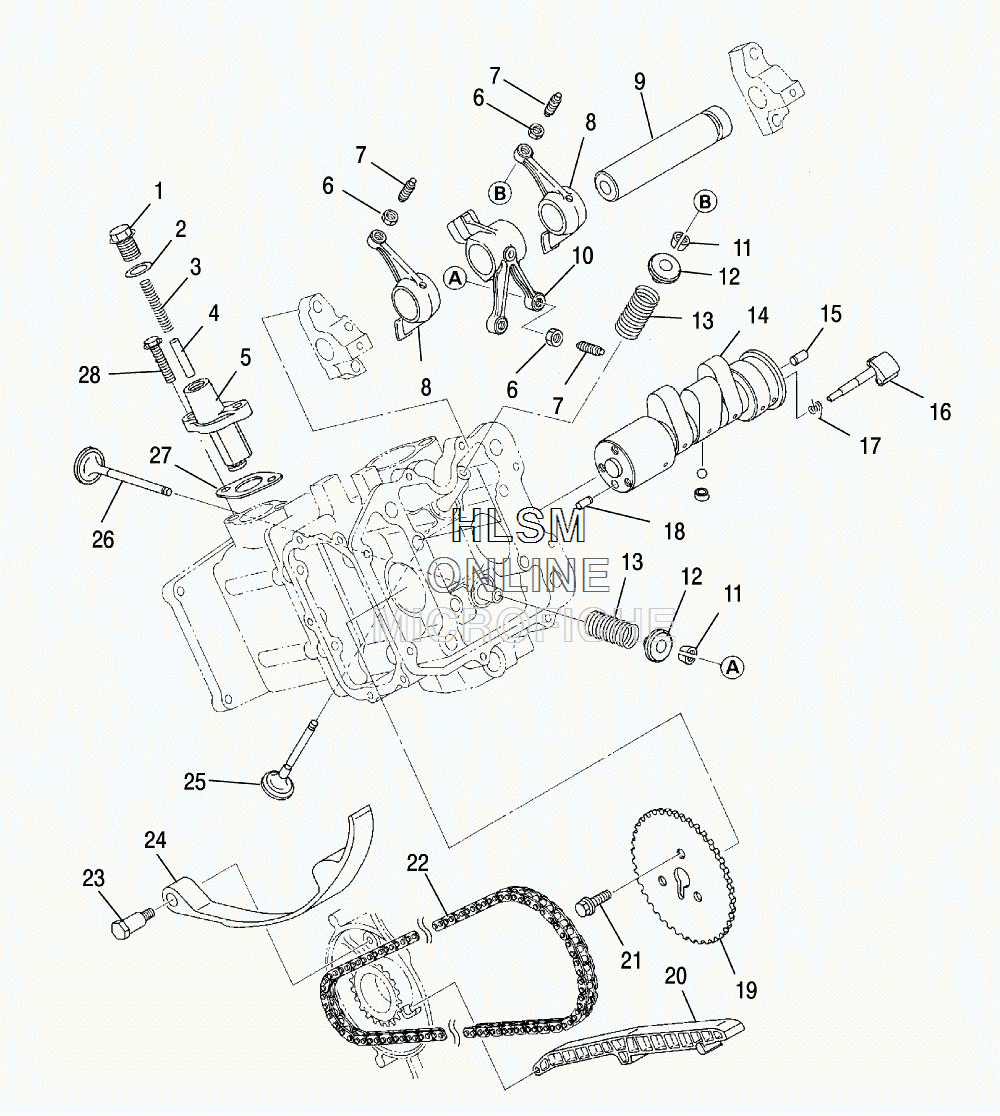

CAMSHAFT AND VALVES для Polaris RANGER 4X4 500 EFI SAGE BRUSH METALLIC [R10TH50AG] - 2010 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET, PLUGGASKET, PLUG
-
33087131 SPRING, TENSIONERSPRING, TENSIONER
-
43087132 PINPIN
-
53086493 ASM., TENSIONER (INCL. 1-4)ASM., TENSIONER (INCL. 1-4)
-
63084912 NUTNUT
-
73084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
83084910 ASM., ROCKER ARM, INTAKE (INCL. 6,7)ASM., ROCKER ARM, INTAKE (INCL. 6,7)
-
93084909 SHAFT, ROCKERSHAFT, ROCKER
-
103084913 ASM., ROCKER ARM, EXHAUST (INCL. 6,7)ASM., ROCKER ARM, EXHAUST (INCL. 6,7)
-
113084908 VALVE, COLLETVALVE, COLLET
-
123087203 RETAINER, SPRINGRETAINER, SPRING
-
133086892 SPRING, VALVESPRING, VALVE
-
143086212 CAMSHAFT (INCL. 15-18)CAMSHAFT (INCL. 15-18)
-
153086838 PIN, DOWELPIN, DOWEL
-
163085348 LEVER, RELEASELEVER, RELEASE
-
173085076 SPRING, RETURNSPRING, RETURN
-
183084899 PIN, DOWELPIN, DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203084916 GUIDE, CHAINGUIDE, CHAIN
-
213081657 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 ASM., BOLT, PIVOT LEVERASM., BOLT, PIVOT LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE, INTAKEVALVE, INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273086448 GASKET, TENSIONERGASKET, TENSIONER
-
283083361 BOLT, FLANGEBOLT, FLANGE
