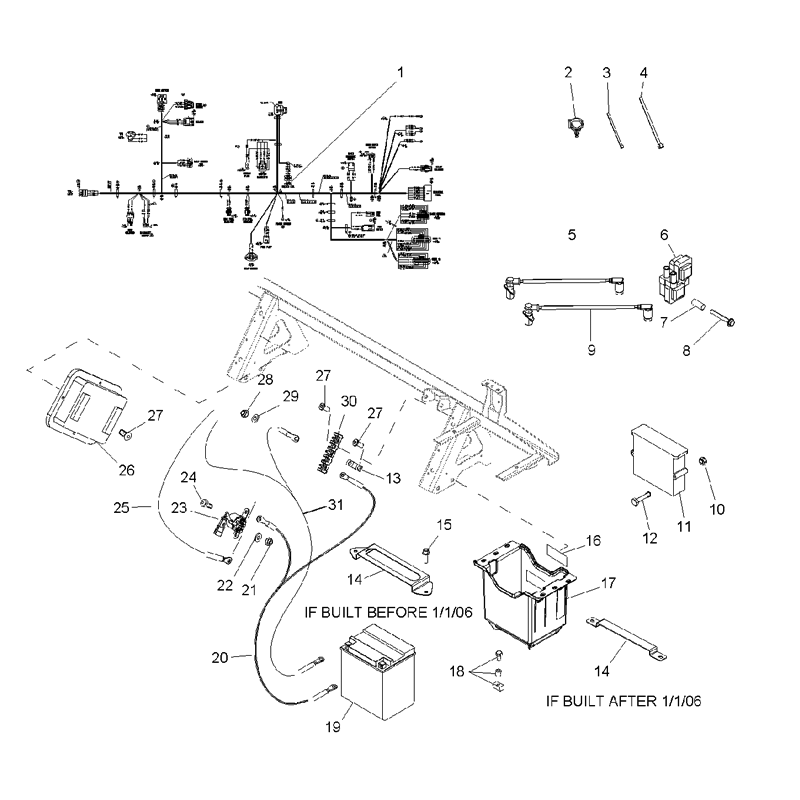

ELECTRICAL/BATTERY для Polaris RANGER XP 4X4 700 EFI XP GRAPHITE WHITE [R06RD68AE] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2410678 HARNESS-CHASSIS
    HARNESS-CHASSIS
  • 2
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 3
    7080138 CABLE TIE
    CABLE TIE
  • 4
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 5
    4011364 WIRE-SPARKPLUG, 49.5CM VANTAGE
    WIRE-SPARKPLUG, 49.5CM VANTAGE
  • 6
    4010425 KIT-IGNITION COIL, ATV TWIN EFI
    KIT-IGNITION COIL, ATV TWIN EFI
  • 7
    5133658 SPACER-COIL (IF BUILT BEFORE 11/21/05)
    SPACER-COIL (IF BUILT BEFORE 11/21/05)
  • 7
    5436577 SPACER-COIL MOUNT (IF BUILT AFTER 11/21/05)
    SPACER-COIL MOUNT (IF BUILT AFTER 11/21/05)
  • 8
    7518052 SCR-1/4-20X2 HX/WH TRI RD-Y
    SCR-1/4-20X2 HX/WH TRI RD-Y
  • 9
    4011365 WIRE-SPARKPLUG, 59.3CM VANTAGE
    WIRE-SPARKPLUG, 59.3CM VANTAGE
  • 10
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 11
    4011370 ECM-RANGER 700 EFI
    ECM-RANGER 700 EFI
  • 12
    7518157 SCR-M5X.8X50MM
    SCR-M5X.8X50MM
  • 13
    5248659 STRAP-GROUND
    STRAP-GROUND
  • 14
    5248374 BRKT-BATTERY STRAP (IF BUILT BEFORE 1/1/06)
    BRKT-BATTERY STRAP (IF BUILT BEFORE 1/1/06)
  • 14
    5250213 BRKT-BATTERY STRAP (IF BUILT AFTER 1/1/06)
    BRKT-BATTERY STRAP (IF BUILT AFTER 1/1/06)
  • 15
    7517386 SCREW
    SCREW
  • 16
    5810455 PAD (IF BUILT AFTER 10/03/05)
    PAD (IF BUILT AFTER 10/03/05)
  • 17
    5434037 BOX-BATTERY-
    BOX-BATTERY-
  • 18
    2202213 KIT-BATTERY BOLT (LONG) (IF BUILT BEFORE 1/19/05)
    KIT-BATTERY BOLT (LONG) (IF BUILT BEFORE 1/19/05)
  • 18
    2202802 KIT-BATTERY BOLT (IF BUILT AFTER 1/19/05)
    KIT-BATTERY BOLT (IF BUILT AFTER 1/19/05)
  • 19
    4010595 BATTERY-30AH, 12 VOLT,AGM-SEALED
    BATTERY-30AH, 12 VOLT,AGM-SEALED
  • 20
    4011213 CABLE-POSITIVE, SPLIT
    CABLE-POSITIVE, SPLIT
  • 21
    7547270 NUT-HXFLGHD, M6,SERRATED
    NUT-HXFLGHD, M6,SERRATED
  • 22
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 23
    4010947 SOLENOID-STARTER-C1100
    SOLENOID-STARTER-C1100
  • 24
    7512084 SCREW
    SCREW
  • 25
    4011249 CABLE-SOL/STARTER
    CABLE-SOL/STARTER
  • 26
    4011090 MODULE-700 ECM
    MODULE-700 ECM
  • 27
    7512018 SCREW
    SCREW
  • 28
    3280321 HEX NUT-NT0001
    HEX NUT-NT0001
  • 29
    7552615 WASHER, LOCK
    WASHER, LOCK
  • 30
    4011130 BLOCK-TERMINAL, 3 POST
    BLOCK-TERMINAL, 3 POST
  • 31
    4011214 CABLE-GROUND, 78''/10''
    CABLE-GROUND, 78''/10''
