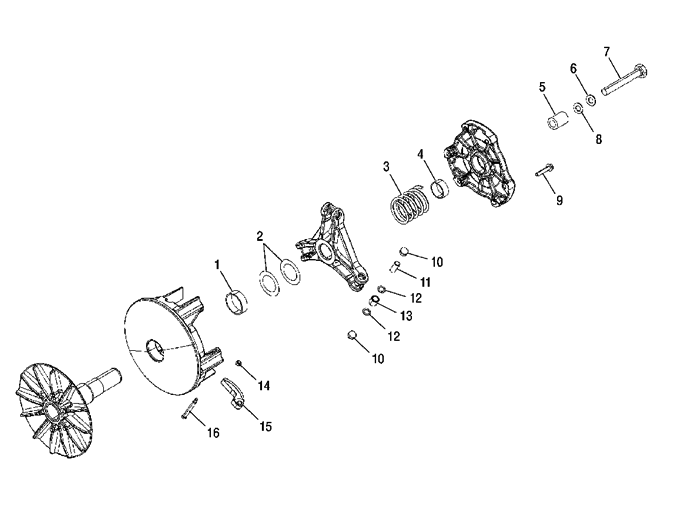

CLUTCH - DRIVE для Polaris RANGER XP 4X4 700 EFI XP GRAPHITE WHITE [R06RD68AE] - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    1322522 DRIVE CLUTCH, WIDE,BASIC (INCLUDES ALL EXCEPT 13 AND 15)
    DRIVE CLUTCH, WIDE,BASIC (INCLUDES ALL EXCEPT 13 AND 15)
  • 1
    3576504 BUSHING, MOVEABLE,1/2 INCH
    BUSHING, MOVEABLE,1/2 INCH
  • 2
    5210752 SPACER, .020
    SPACER, .020
  • 2
    5242981 SPACER, .025
    SPACER, .025
  • 2
    5210753 SPACER, .032
    SPACER, .032
  • 2
    5210754 SPACER, .050
    SPACER, .050
  • 3
    7042202 SPRING-CLUTCH, BLUE/GRAY
    SPRING-CLUTCH, BLUE/GRAY
  • 4
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 5
    5430261 BUSHING
    BUSHING
  • 6
    7575202 WASHER LOCK
    WASHER LOCK
  • 7
    7518197 BOLT, 7/16X20X8
    BOLT, 7/16X20X8
  • 8
    5210748 WASHER
    WASHER
  • 9
    7518062 SCR-1/4-20X1.25 HX/FL GR5
    SCR-1/4-20X1.25 HX/FL GR5
  • 10
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 11
    5020422 PIN-ROLLER,
    PIN-ROLLER,
  • 12
    5430945 WASHER
    WASHER
  • 13
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 14
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 15
    5631698 WEIGHT-SHIFT, 20-60
    WEIGHT-SHIFT, 20-60
  • 16
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
