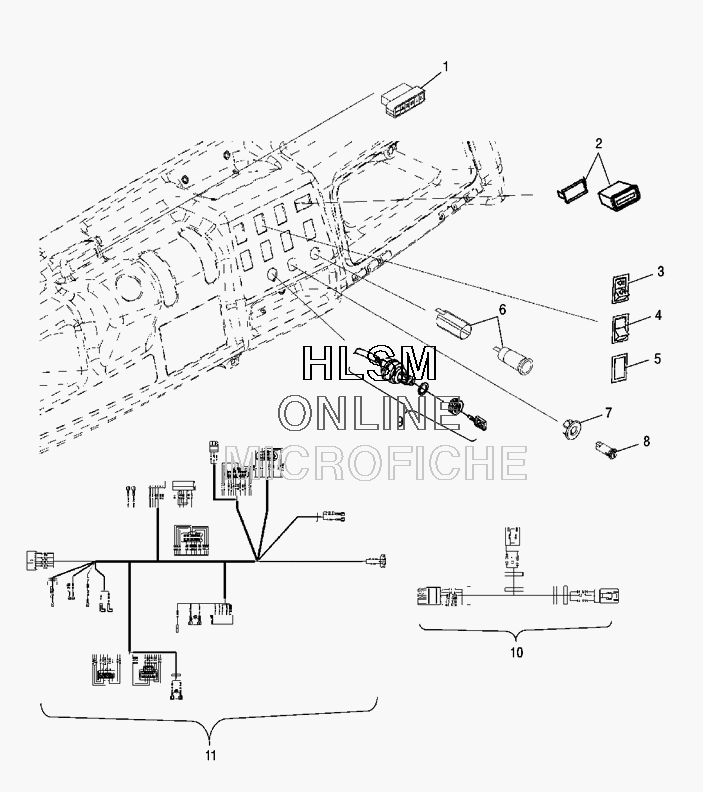

DASH INSTRUMENTS W/ CONTROLS для Polaris RANGER XP BLACK [R05RD68AB] - 2005 года выпуска`
-
№АртикулНазвание
-
14010797 PANEL-INDICATORPANEL-INDICATOR
-
24010460 HOURMETER-12V,NON-POL,RECTNGLRHOURMETER-12V,NON-POL,RECTNGLR
-
34011115 SWITCH-HEADLIGHTSWITCH-HEADLIGHT
-
44011117 SWITCH-2WD/AWDSWITCH-2WD/AWD
-
55434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
-
64010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
75436161 PLUG-INDICATOR LIGHTPLUG-INDICATOR LIGHT
-
84011192 INDICATOR-DIAGNOSTICS LIGHTINDICATOR-DIAGNOSTICS LIGHT
-
94011002 SWITCH-KEY,3 POS,MT SLVSWITCH-KEY,3 POS,MT SLV
-
102410624 HARNESS-HEADLITE/HOODHARNESS-HEADLITE/HOOD
-
112410561 HARNESS-DASHHARNESS-DASH
