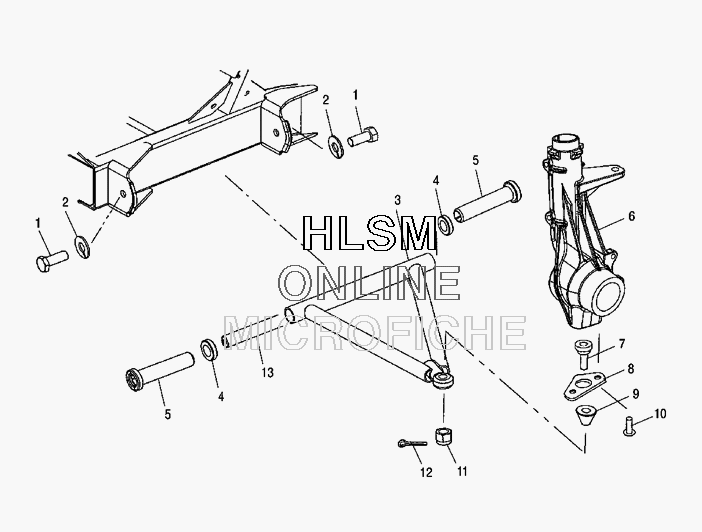

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris RANGER TM [A05RB63AA] - 2005 года выпуска`
-
№АртикулНазвание
-
17512589 BOLTBOLT
-
27553101 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
31541915-067 WELD-A-FRAME, LEFT HAND, BLACKWELD-A-FRAME, LEFT HAND, BLACK
-
31541916-067 WELD-A-FRAME, RIGHT HAND, BLACKWELD-A-FRAME, RIGHT HAND, BLACK
-
45132532 BUSHING-.970 X 1.38 X .250BUSHING-.970 X 1.38 X .250
-
55434547 BUSHING-A-ARM,.760X.952, BLACKBUSHING-A-ARM,.760X.952, BLACK
-
77080927 BALL-JOINT,52 DEGBALL-JOINT,52 DEG
-
85211121 BRKT, BALL JOINT-BRKT, BALL JOINT-
-
95410548 BOOT, RUBBERBOOT, RUBBER
-
107512284 BOLT, SOCKETBOLT, SOCKET
-
117542438 NUT, CASTLENUT, CASTLE
-
127661203 PIN,COTTERPIN,COTTER
-
135133676 SHAFT-A-ARMSHAFT-A-ARM
