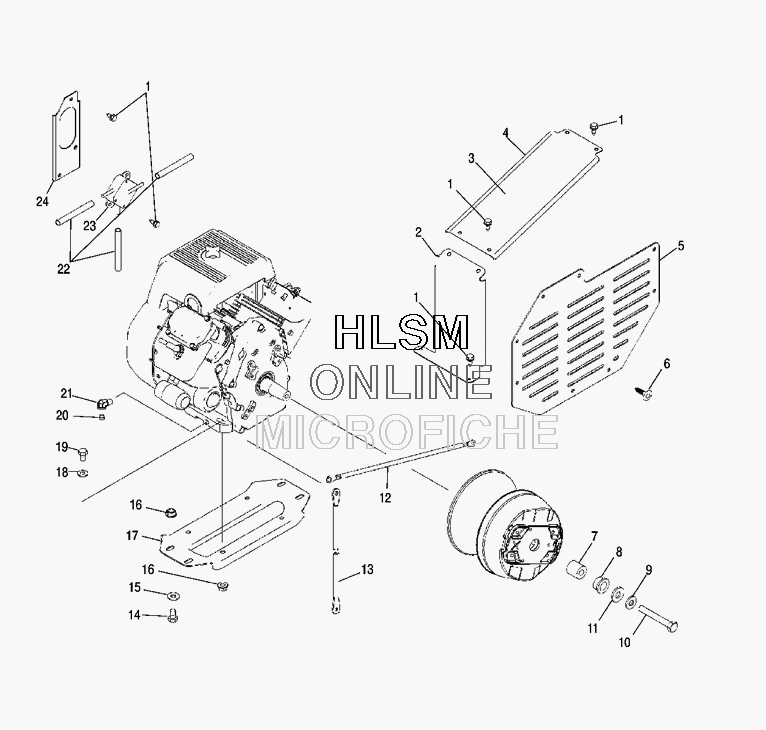

MOUNTING - ENGINE для Polaris RANGER TM [A05RB63AA] - 2005 года выпуска`
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
25247212-067 SHIELD-CLUTCH/EXH,FRT, BLACKSHIELD-CLUTCH/EXH,FRT, BLACK
-
37172563 COVERCOVER
-
45247211 SHIELD-CLUTCH/EXH,TOPSHIELD-CLUTCH/EXH,TOP
-
55812491 GUARD-CLUTCH,SIDEGUARD-CLUTCH,SIDE
-
67517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
75430261 BUSHINGBUSHING
-
85132441 WASHER,CLUTCH RETAINERWASHER,CLUTCH RETAINER
-
97575202 WASHER LOCKWASHER LOCK
-
107512566 BOLTBOLT
-
115210748 WASHERWASHER
-
124011127 CABLE-BATTERY,GROUND,78''CABLE-BATTERY,GROUND,78''
-
134011128 CABLE-SOL/STARTER,72''CABLE-SOL/STARTER,72''
-
147517289 SCREWSCREW
-
157552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
167547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
175247203-067 BRKT-ENGINE, BLACKBRKT-ENGINE, BLACK
-
187558403 WASHER,WROUGHTWASHER,WROUGHT
-
197515528 BOLTBOLT
-
207052115 PLUGPLUG
-
217052304 FITTING-M14X1.5X7/16-20,P-80FITTING-M14X1.5X7/16-20,P-80
-
228450103 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
245248744-067 BRKT-FUEL PUMP, BLACKBRKT-FUEL PUMP, BLACK
