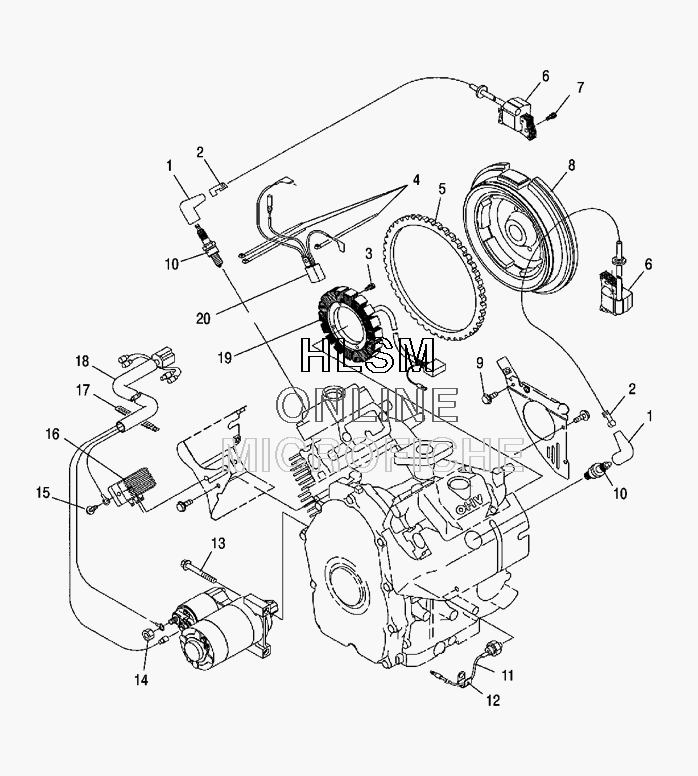

MAGNETO - STARTER - RELAYS для Polaris RANGER TM [A05RB63AA] - 2005 года выпуска`
-
№АртикулНазвание
-
13088806 CAP,SPARK PLUGCAP,SPARK PLUG
-
23088807 TERMINAL,PLUGTERMINAL,PLUG
-
33088809 ASM,BOLT AND WASHERASM,BOLT AND WASHER
-
43088811 BAND,WIREBAND,WIRE
-
53088470 GEAR-RINGGEAR-RING
-
63088801 ASM,IGNITION COILASM,IGNITION COIL
-
73083730 ASM.,BOLT AND WASHERASM.,BOLT AND WASHER
-
83088749 ASM.,FLYWHEELASM.,FLYWHEEL
-
93087258 BOLT,FLANGEBOLT,FLANGE
-
103089509 PLUG-SPARK BPR5ESPLUG-SPARK BPR5ES
-
113089568 ASM.,WIRE,OIL PRESSURE SWITCHASM.,WIRE,OIL PRESSURE SWITCH
-
123083391 ASM.,CLAMPASM.,CLAMP
-
133088810 BOLT,FLANGEBOLT,FLANGE
-
143082910 NUT-FLANGENUT-FLANGE
-
153088791 BOLT,FLANGEBOLT,FLANGE
-
163088803 ASM,REGULATORASM,REGULATOR
-
173083590 CLAMPCLAMP
-
183089567 HARNESS,WIREHARNESS,WIRE
-
193088802 ASM,CHARGE COILASM,CHARGE COIL
-
203088804 ASM,STOP DIODEASM,STOP DIODE
