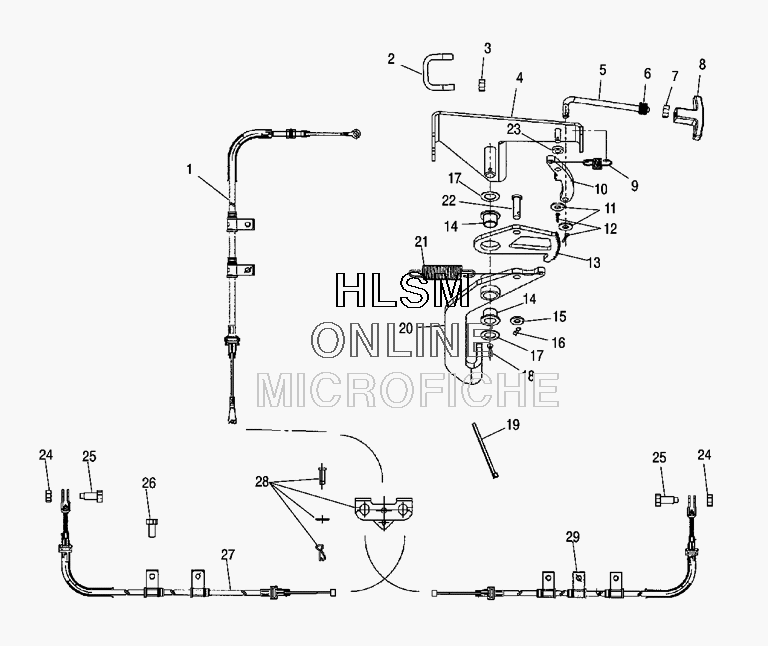

PARK BRAKE LOCK для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
17081010 CABLE-BRAKE,PARKING,MAINCABLE-BRAKE,PARKING,MAIN
-
25245209 U-BOLT,SQBEND,3/8X2 1/4X1 3/16U-BOLT,SQBEND,3/8X2 1/4X1 3/16
-
37542451 NUT, NYLOKNUT, NYLOK
-
55133067 ROD-PARKING BRAKEROD-PARKING BRAKE
-
65410437 GROMMETGROMMET
-
77546701 NUTNUT
-
87081013 HANDLE-PARKING BRAKEHANDLE-PARKING BRAKE
-
97042057 SPRING-CATCH,PARKING BRAKESPRING-CATCH,PARKING BRAKE
-
117558201 WASHER, FLATWASHER, FLAT
-
127661103 PIN, COTTERPIN, COTTER
-
157558302 WASHER,WROUGHTWASHER,WROUGHT
-
167661140 PIN-CLIP,14MMPIN-CLIP,14MM
-
197080138 CABLE TIECABLE TIE
-
217042056 SPRING-PARKING BRAKESPRING-PARKING BRAKE
-
247542122 NUT-NYLOKNUT-NYLOK
-
257512287 BOLT,BRAKE LEVERBOLT,BRAKE LEVER
-
267517386 SCREWSCREW
-
277081012 CABLE-BRAKE,PARKING, LEFT HANDCABLE-BRAKE,PARKING, LEFT HAND
-
282632418 EQUILIZER AND PIN,ASM.EQUILIZER AND PIN,ASM.
-
297081011 CABLE-BRAKE,PARKING, RIGHT HAND (INCLUDES 4-10, 13, 14, 17-20, 22, 23)CABLE-BRAKE,PARKING, RIGHT HAND (INCLUDES 4-10, 13, 14, 17-20, 22, 23)
-
-1910604 ASM-PARKING BRAKE W/SWITCHASM-PARKING BRAKE W/SWITCH
