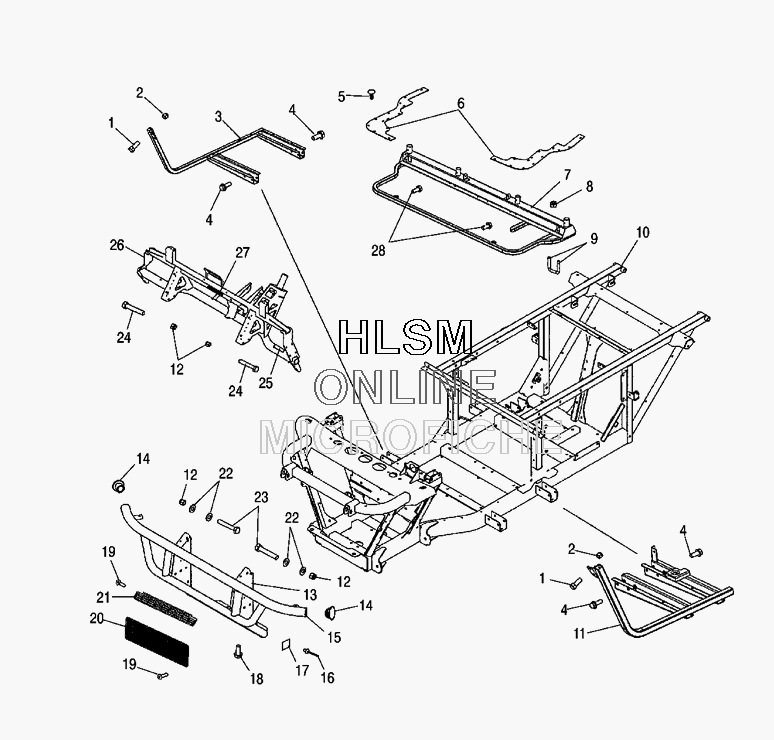

FRAME W/ EXTENTIONS для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7515522 BOLT
    BOLT
  • 2
    7542449 NUT,FLANGE LOCK
    NUT,FLANGE LOCK
  • 3
    1013374-067 FLOOR SUSP, RIGHT HAND, BLACK
    FLOOR SUSP, RIGHT HAND, BLACK
  • 4
    7515399 SCREW
    SCREW
  • 5
    7670090 CLIP,PLASTIC DART,NYLON
    CLIP,PLASTIC DART,NYLON
  • 6
    5434028 PANEL-SEAT FRAME FLOOR COVER
    PANEL-SEAT FRAME FLOOR COVER
  • 8
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 9
    5245209 U-BOLT,SQBEND,3/8X2 1/4X1 3/16
    U-BOLT,SQBEND,3/8X2 1/4X1 3/16
  • 10
    1014209-067 MAIN FRAME, BLACK
    MAIN FRAME, BLACK
  • 11
    1013373-067 FLOOR SUSP, LEFT HAND, BLACK
    FLOOR SUSP, LEFT HAND, BLACK
  • 12
    7542439 NUT,NYLOK
    NUT,NYLOK
  • 13
    7079924 DECAL-REFLECT.2.88,AMBER
    DECAL-REFLECT.2.88,AMBER
  • 14
    5434191 CAP-BUMPER
    CAP-BUMPER
  • 15
    1014211-067 WELD-BUMPER, BLACK
    WELD-BUMPER, BLACK
  • 16
    7621334 RIVET
    RIVET
  • 17
    5430733 CUP, HOOD LATCH
    CUP, HOOD LATCH
  • 18
    7517854 SCR-3/8-16X1-P30-SPEC-Y
    SCR-3/8-16X1-P30-SPEC-Y
  • 19
    7517685 SCREW
    SCREW
  • 20
    5245329-067 PLATE-GRILLE,BUMPER,UPPER, BLACK
    PLATE-GRILLE,BUMPER,UPPER, BLACK
  • 21
    5245626-067 PLATE-GRILLE,BUMPER,TOP, BLACK
    PLATE-GRILLE,BUMPER,TOP, BLACK
  • 22
    7555801 WASHER
    WASHER
  • 23
    7517583 SCR-3/8-24X2 HX/CP GR5-Y-SP
    SCR-3/8-24X2 HX/CP GR5-Y-SP
  • 24
    7515415 SCREW
    SCREW
  • 25
    5810455 PAD
    PAD
  • 26
    1013930-067 WELD-CAB SUPPORT,FRONT, BLACK
    WELD-CAB SUPPORT,FRONT, BLACK
  • 28
    7512399 SCREW
    SCREW
