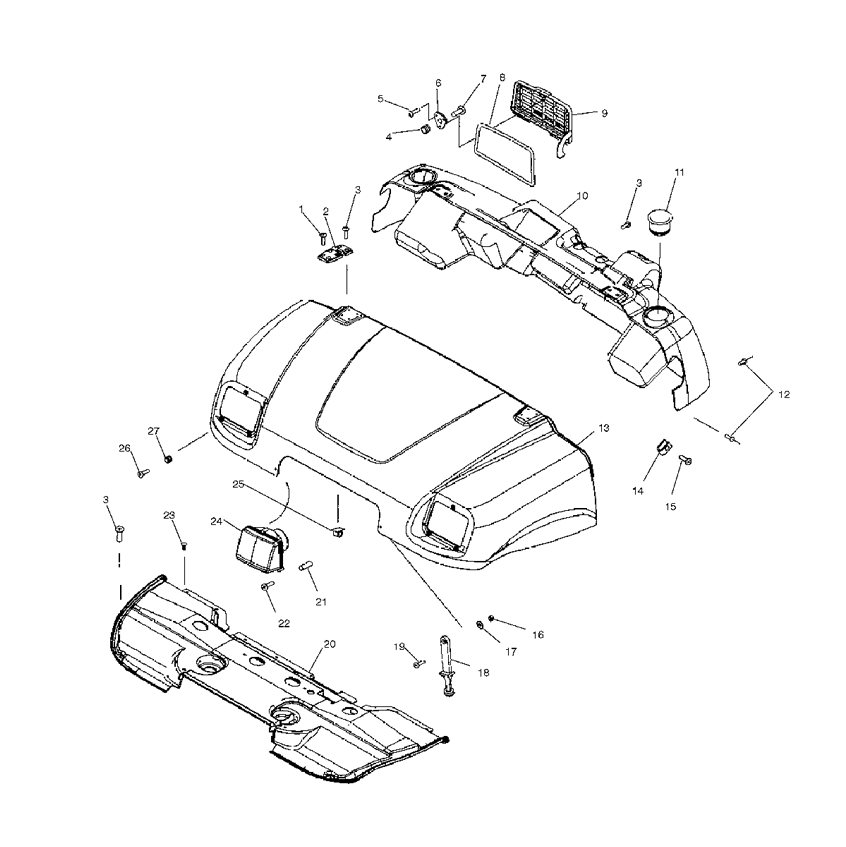

HOOD для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7518158 SCR-#14X1 HI/LO-PH-PN TRX-M
    SCR-#14X1 HI/LO-PH-PN TRX-M
  • 2
    5434057 HINGE,ASM.
    HINGE,ASM.
  • 3
    7517685 SCREW
    SCREW
  • 4
    5410774 GROMMET, RUBBER
    GROMMET, RUBBER
  • 5
    7512026 SCREW
    SCREW
  • 6
    5910119 PLATE-CATCH
    PLATE-CATCH
  • 7
    5246693 PIN-CATCH
    PIN-CATCH
  • 8
    5521623 SEAL-GLOVE BOX (IF BUILT BEFORE 4/07/03)
    SEAL-GLOVE BOX (IF BUILT BEFORE 4/07/03)
  • 8
    5521667 SEAL-GLOVEBOX (IF BUILT AFTER 4/07/03)
    SEAL-GLOVEBOX (IF BUILT AFTER 4/07/03)
  • 9
    5435116-455 COVER-GLVBX,RANGER,NBU,SUB.
    COVER-GLVBX,RANGER,NBU,SUB.
  • 10
    5435117-455 DASH-RANGER,NEW BREAK UP,SUB.
    DASH-RANGER,NEW BREAK UP,SUB.
  • 11
    5434763 HOLDER-CUP
    HOLDER-CUP
  • 12
    7621479 RIVET
    RIVET
  • 13
    5435118-455 HOOD-RANGER,NEW BREAK UP,SUB.
    HOOD-RANGER,NEW BREAK UP,SUB.
  • 14
    7670157 NUT-#10,U-TYPE,AB(.025.150) (IF BUILT AFTER 4/07/03)
    NUT-#10,U-TYPE,AB(.025.150) (IF BUILT AFTER 4/07/03)
  • 15
    7517561 SCREW (IF BUILT AFTER 4/07/03)
    SCREW (IF BUILT AFTER 4/07/03)
  • 16
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 17
    7555935 WASHER
    WASHER
  • 18
    5410370 STRAP, HOOD LATCH
    STRAP, HOOD LATCH
  • 19
    7517230 SCREW
    SCREW
  • 20
    5434746 LINER-HOOD,RNGR
    LINER-HOOD,RNGR
  • 21
    4032094 SPRING,ADJ,(2.5 IN)
    SPRING,ADJ,(2.5 IN)
  • 22
    7518156 SCR-M5X.8X85MM
    SCR-M5X.8X85MM
  • 23
    7670090 CLIP,PLASTIC DART,NYLON
    CLIP,PLASTIC DART,NYLON
  • 24
    2410275 HEADLIGHT ASM,RNGR,SERIES 10/11
    HEADLIGHT ASM,RNGR,SERIES 10/11
  • 24
    4010681 ASM-BULB,HI/LO 35/35
    ASM-BULB,HI/LO 35/35
  • 25
    7670134 CLIP-WIRE,ADHESIVE BACK,1/2''
    CLIP-WIRE,ADHESIVE BACK,1/2''
  • 26
    7518157 SCR-M5X.8X50MM
    SCR-M5X.8X50MM
  • 27
    5412148 GROMMET-3/16X9/16X3/8
    GROMMET-3/16X9/16X3/8
