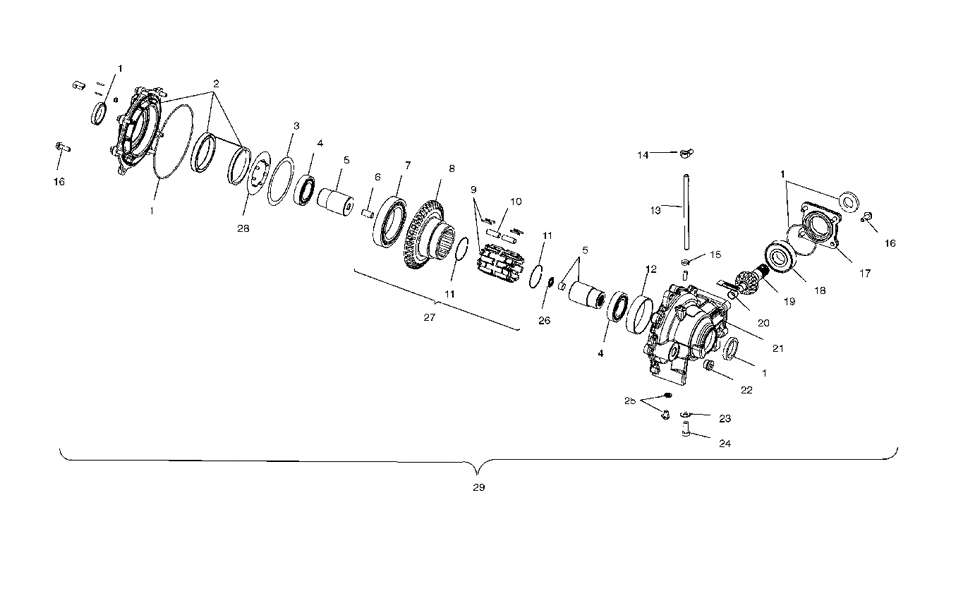

FRONT HOUSING (4X4) (6X6) для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
13233956 KIT-SEAL,GEARCASE-FRONT (INC O-RINGS AND SEALS)KIT-SEAL,GEARCASE-FRONT (INC O-RINGS AND SEALS)
-
23234093 COVER-PLATE ASM (INC OUTPUT COVER, INSTER, SEAL AND COIL)COVER-PLATE ASM (INC OUTPUT COVER, INSTER, SEAL AND COIL)
-
33233925 KIT-SHIM SET (INC SHIMS)KIT-SHIM SET (INC SHIMS)
-
43233926 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
53233953 ASM-RACE/OUTPUT HUB (INC 26)ASM-RACE/OUTPUT HUB (INC 26)
-
63233928 PIN-DOWEL,1/2''DIA X 1''PIN-DOWEL,1/2''DIA X 1''
-
73233932 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
83233933 CLUTCH HSG/ RING GEARCLUTCH HSG/ RING GEAR
-
93233949 ASM,ROLL CAGE (INC SPRING AND ROLL CAGE)ASM,ROLL CAGE (INC SPRING AND ROLL CAGE)
-
93233935 SPRING-H-CLIP .008" (INC SPRING AND ROLL CAGE)SPRING-H-CLIP .008" (INC SPRING AND ROLL CAGE)
-
103233957 KIT-ROLLERKIT-ROLLER
-
113233934 RING-RETAINING,WIRE FORMRING-RETAINING,WIRE FORM
-
138450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
144020139 CLIP,ROSEBUDCLIP,ROSEBUD
-
157080307 CLAMP,HOSECLAMP,HOSE
-
163233955 KIT-BOLTKIT-BOLT
-
173233947 COVER-INPUT,MACHCOVER-INPUT,MACH
-
183233945 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
193233944 SHAFT-PINION,11T,6.75DP,MACHSHAFT-PINION,11T,6.75DP,MACH
-
223233942 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
237552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
247512492 SCREWSCREW
-
253233951 ASM-DRAIN PLUG (INC PLUG AND WASHER)ASM-DRAIN PLUG (INC PLUG AND WASHER)
-
263233929 BEARING-NEEDLE ROLLER THRUSTBEARING-NEEDLE ROLLER THRUST
-
273233954 ASM-CLUTCH (INC 7-11)ASM-CLUTCH (INC 7-11)
-
283233924 ARMATURE PLATEARMATURE PLATE
-
291341344 ASM-GEARCASE,FRONT,BEARINGLESS (INC 2-12,19-22,25-28)ASM-GEARCASE,FRONT,BEARINGLESS (INC 2-12,19-22,25-28)
-
293233950 ASM-GEARCASE (INC 12,20,21)ASM-GEARCASE (INC 12,20,21)
