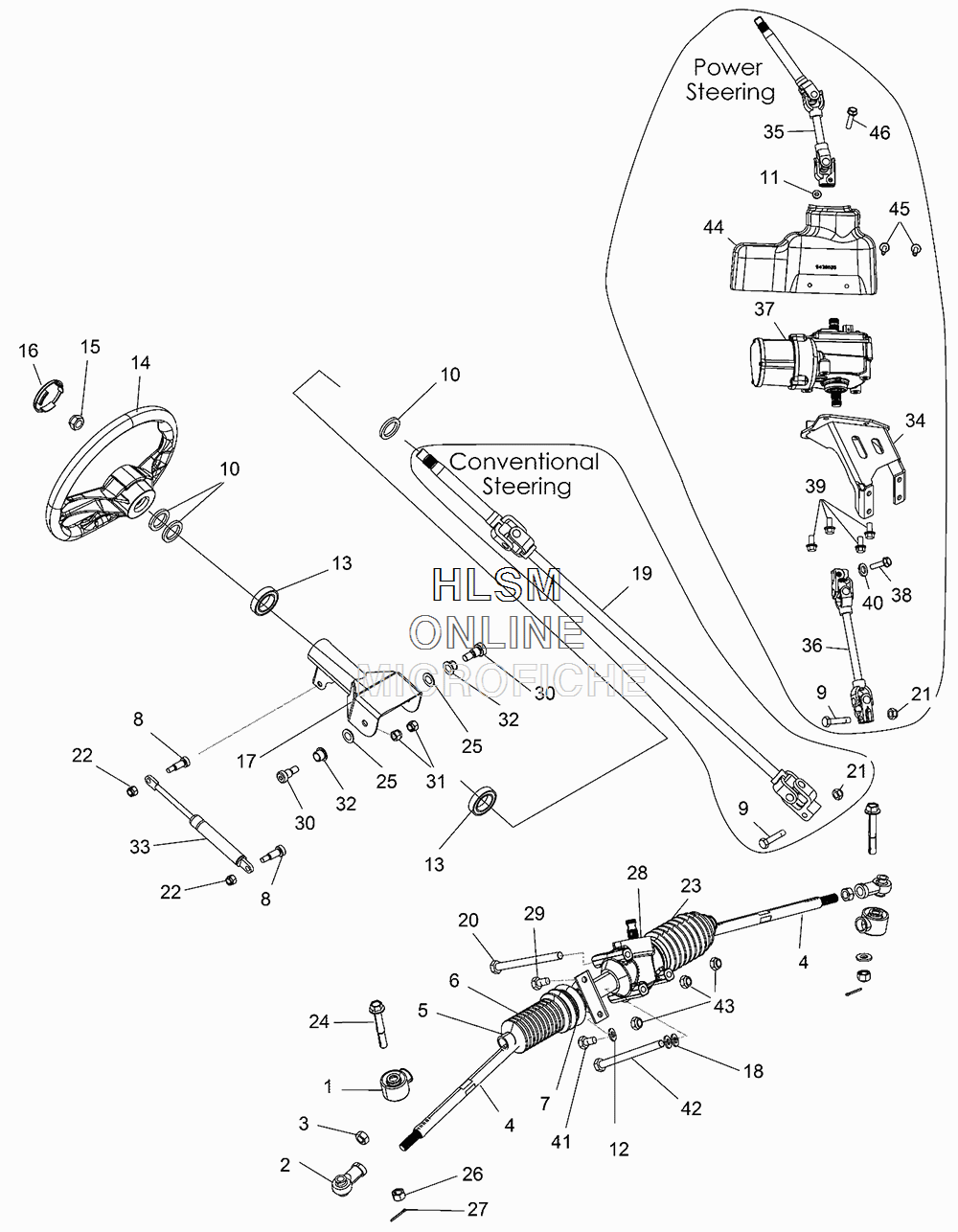

STEERING ASM. для Polaris RZR 570 (WHITE LIGHTNING) [Z18VHA57B2] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5411920 BOOT, SEAL, ROD END
    BOOT, SEAL, ROD END
  • 8
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 9
    7518644 SCREW
    SCREW
  • 10
    7556675 BUSHING-STEERING
    BUSHING-STEERING
  • 11
    7547274 NUT (EPS)
    NUT (EPS)
  • 12
    7547030 NUT, PAL (EPS)
    NUT, PAL (EPS)
  • 13
    3514686 BEARING, STEERING
    BEARING, STEERING
  • 14
    1824212 WHEEL-STEERING, 14"
    WHEEL-STEERING, 14"
  • 15
    7547506 NUT-HEX-M16X2, 8 ZC NYL
    NUT-HEX-M16X2, 8 ZC NYL
  • 16
    5451356 CAP-STEERING WHEEL
    CAP-STEERING WHEEL
  • 17
    1017621 ASM., TUBE, PIVOT, BLACK (INCL. 13)
    ASM., TUBE, PIVOT, BLACK (INCL. 13)
  • 18
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 19
    1823727 SHAFT, STEERING (B2)
    SHAFT, STEERING (B2)
  • 20
    7518895 BOLT (LOCK PATCH)
    BOLT (LOCK PATCH)
  • 21
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 22
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 23
    5412012 BOOT, DRIVER SIDE, RACK
    BOOT, DRIVER SIDE, RACK
  • 24
    7517909 BOLT
    BOLT
  • 25
    7555919 WASHER
    WASHER
  • 26
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 27
    7661203 PIN, COTTER
    PIN, COTTER
  • 28
    1823632 ASM., GEAR BOX, STEERING (INCL. 2-7, 23)
    ASM., GEAR BOX, STEERING (INCL. 2-7, 23)
  • 29
    7512325 BOLT
    BOLT
  • 30
    7517607 BOLT, SHOULDER
    BOLT, SHOULDER
  • 31
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 32
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 33
    7043810 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 34
    1022640-458 MOUNT, EPS, BLACK (EPS)
    MOUNT, EPS, BLACK (EPS)
  • 35
    1823749 SHAFT, STEERING, EPS, UPPER (EPS)
    SHAFT, STEERING, EPS, UPPER (EPS)
  • 36
    1823782 SHAFT, STEERING, EPS, LOWER (EPS)
    SHAFT, STEERING, EPS, LOWER (EPS)
  • 37
    2413631 ASM., POWER STEERING (EPS)
    ASM., POWER STEERING (EPS)
  • 38
    7517924 BOLT, CAP (EPS)
    BOLT, CAP (EPS)
  • 39
    7518558 BOLT (EPS)
    BOLT (EPS)
  • 40
    7552901 WASHER, SPRING LOCK (EPS)
    WASHER, SPRING LOCK (EPS)
  • 41
    7512371 BOLT
    BOLT
  • 42
    7515382 BOLT
    BOLT
  • 43
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 44
    5438626 COVER, EPS (EPS)
    COVER, EPS (EPS)
  • 45
    7519092 SCREW (EPS)
    SCREW (EPS)
  • 46
    7516827 SCREW (EPS)
    SCREW (EPS)
