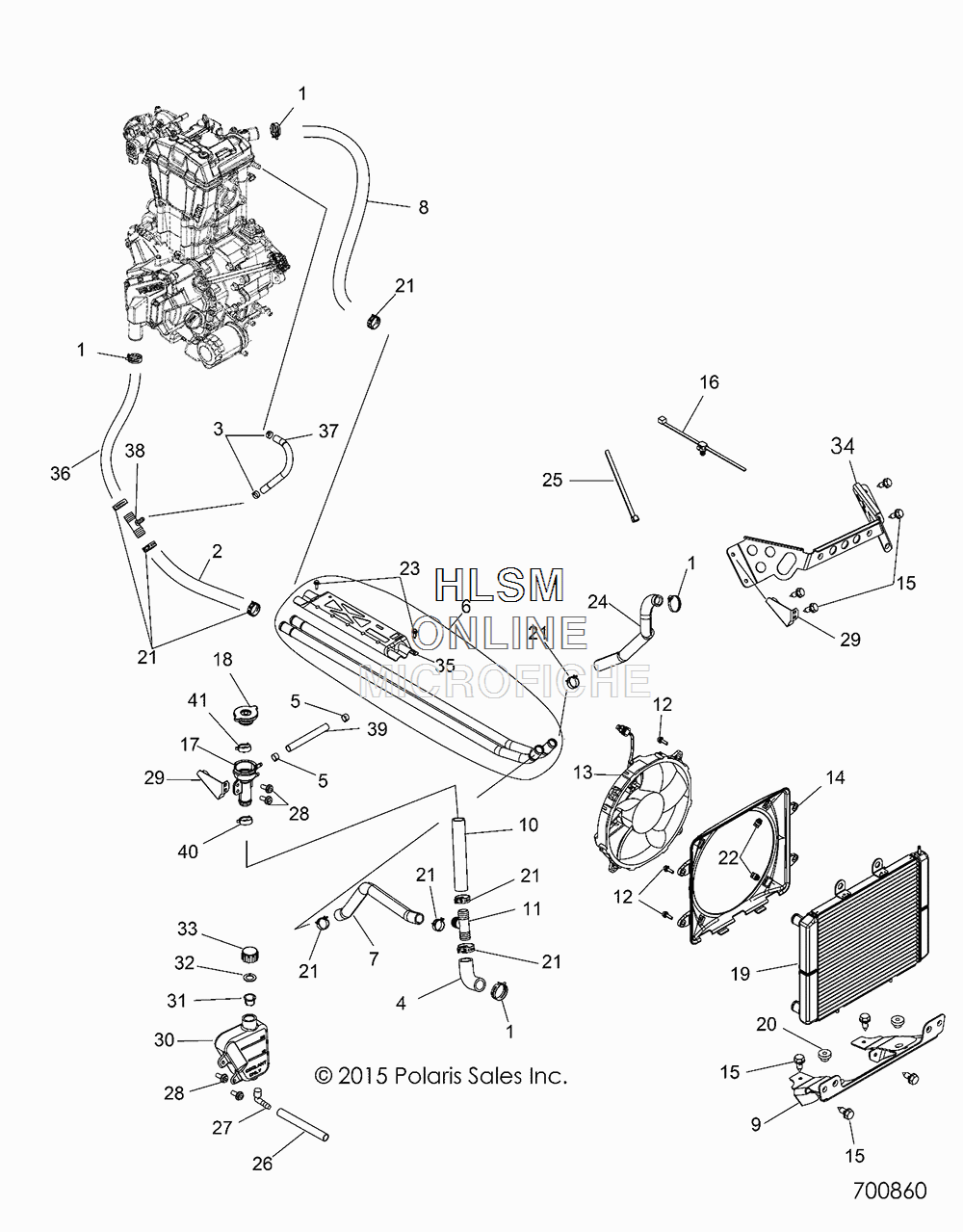

COOLING SYSTEM для Polaris RZR 570 (WHITE LIGHTNING) [Z18VHA57B2] - 2018 года выпуска
-
№АртикулНазвание
-
17081192 CLAMP, HOSE(WORM DR) 25-40MMCLAMP, HOSE(WORM DR) 25-40MM
-
25414154 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
37080474 CLAMP, HOSECLAMP, HOSE
-
45414202 HOSE, RADIATOR, LOWERHOSE, RADIATOR, LOWER
-
57080003 CLAMP, HOSECLAMP, HOSE
-
61241229 ASM-COOLANT TUBE (INCL. 35)ASM-COOLANT TUBE (INCL. 35)
-
75414204 HOSE, LOWER, FRONTHOSE, LOWER, FRONT
-
85414155 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
95254709-458 BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACKBRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK
-
105414203 HOSE, REMOTE FILL NECKHOSE, REMOTE FILL NECK
-
117052373 T-CONNECTORT-CONNECTOR
-
127516822 SCREWSCREW
-
132410413 ASM., FANASM., FAN
-
145437845 SHROUD, FANSHROUD, FAN
-
157518529 SCREWSCREW
-
167081496 CLIP, ROUTINGCLIP, ROUTING
-
175439079 FILLER, REMOTEFILLER, REMOTE
-
181240300 CAP, PRESSURECAP, PRESSURE
-
191240444 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
205410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
217080844 CLAMP, SPRINGBAND, BLACKCLAMP, SPRINGBAND, BLACK
-
227547366 U-CLIPU-CLIP
-
237519342 SCREWSCREW
-
245414201 HOSE, RADIATOR, UPPERHOSE, RADIATOR, UPPER
-
257080761 CABLE TIE, 14 INCABLE TIE, 14 IN
-
268450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
277052065 FITTING, 90 DEGFITTING, 90 DEG
-
287512084 SCREWSCREW
-
295253450 BRACKET, FILLER NECKBRACKET, FILLER NECK
-
305436936 TANK-SURGETANK-SURGE
-
315433774 PLUG, CAPPLUG, CAP
-
325810279 GASKETGASKET
-
335430743 CAP, OVERFLOWCAP, OVERFLOW
-
345254710-458 BRACKET, MOUNT, RADIATOR, UPPER, MATTE BLACKBRACKET, MOUNT, RADIATOR, UPPER, MATTE BLACK
-
355254161-329 BRACKET, FUEL TANK MOUNT, CENTER, BLACKBRACKET, FUEL TANK MOUNT, CENTER, BLACK
-
365414162 HOSE, BYPASS, FORMEDHOSE, BYPASS, FORMED
-
375414163 HOSE, BYPASS, FORMEDHOSE, BYPASS, FORMED
-
387052530 CONNECTOR, TEECONNECTOR, TEE
-
398450120-40 FUEL LINE, 600CMFUEL LINE, 600CM
-
407080844 CLAMP, SPRINGBAND, BLACKCLAMP, SPRINGBAND, BLACK
-
417081174 CLAMP-HOSE, 13/16 IN-1 1/2 INCLAMP-HOSE, 13/16 IN-1 1/2 IN
