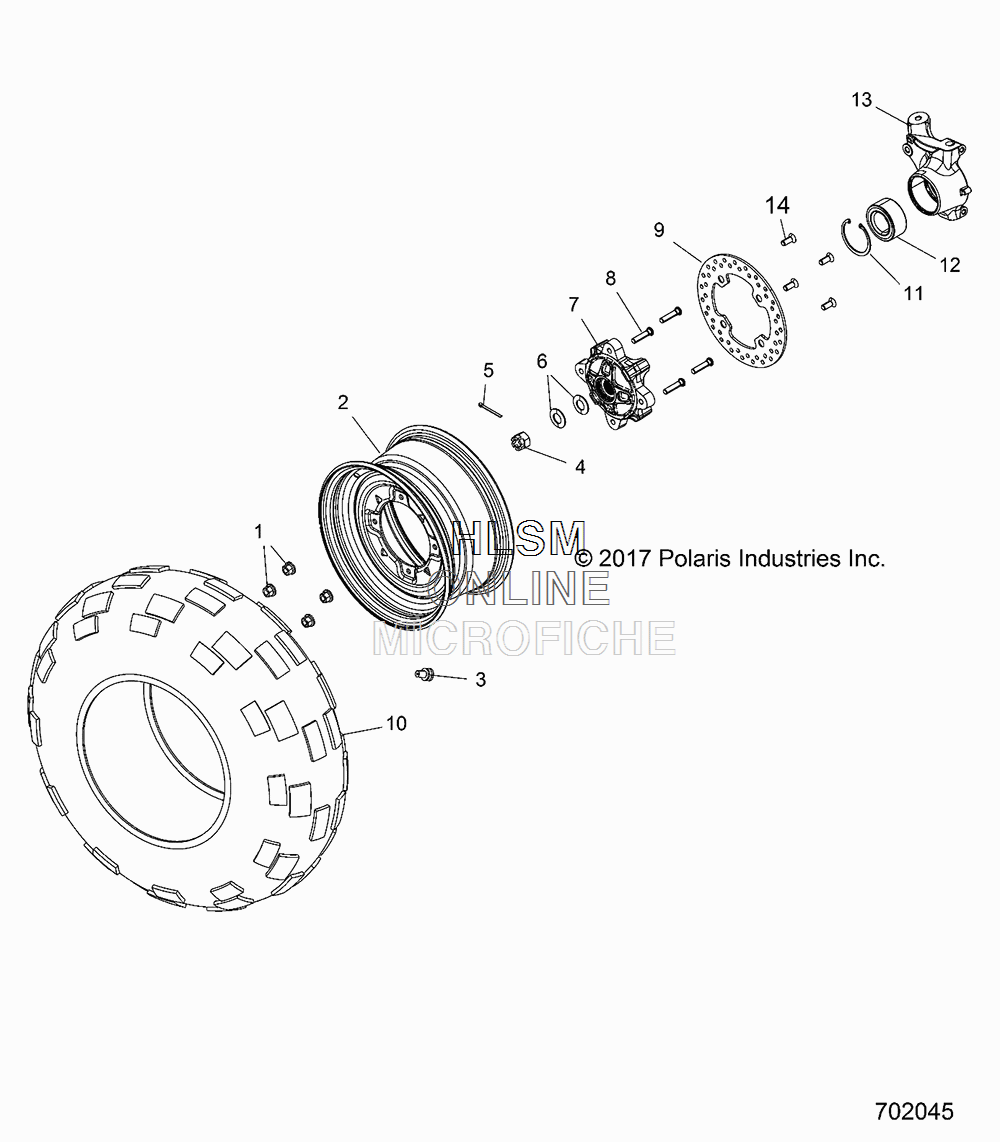

WHEELS - FRONT для Polaris RZR 570 EU (WHITE LIGHTNING) [Z18VHA57F2] - 2018 года выпуска
-
№АртикулНазвание
-
17547237 NUT-FLANGE, TWO PIECE, 3/8-24NUT-FLANGE, TWO PIECE, 3/8-24
-
21520263-067 WELD-RIM, FRONT, 10 GA, BLACKWELD-RIM, FRONT, 10 GA, BLACK
-
31525017 VALVE, RIMVALVE, RIM
-
47547337 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75137659-067 HUB, WHEEL, FRONT, BLACKHUB, WHEEL, FRONT, BLACK
-
87517871 STUDSTUD
-
95254999 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
105414479 TIRE-FRONT, 25X8-R12, ANCLA, EMTIRE-FRONT, 25X8-R12, ANCLA, EM
-
117710780 RING, RETAININGRING, RETAINING
-
123514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
135135442 CARRIER, BEARING, LEFT HANDCARRIER, BEARING, LEFT HAND
-
135135443 CARRIER, BEARING, RIGHT HANDCARRIER, BEARING, RIGHT HAND
-
147518978 SCREWSCREW
