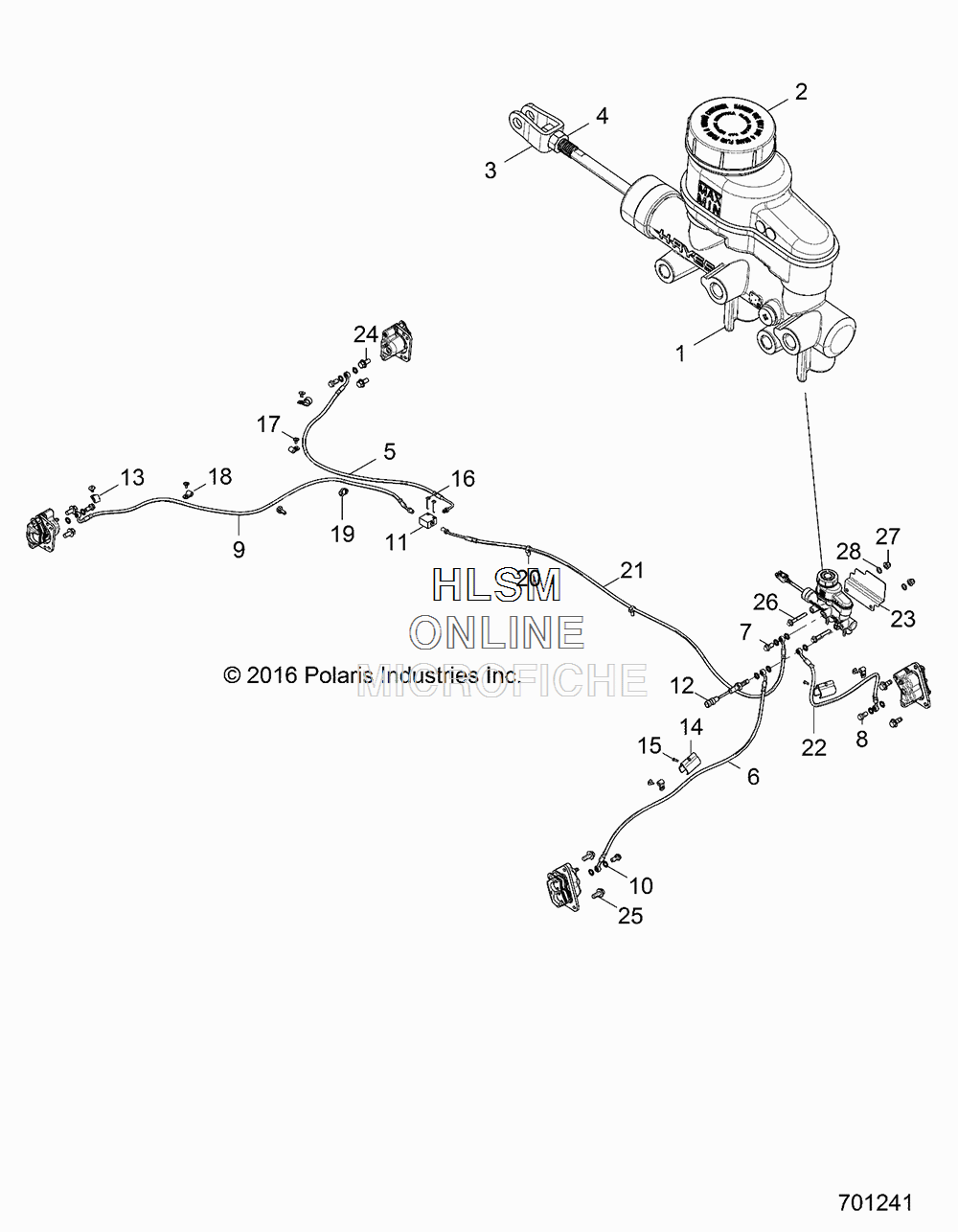

BRAKE LINES AND MASTER CYLINDER для Polaris RZR 570 EU (WHITE LIGHTNING) [Z18VHA57F2] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911982 ASM-TANDEM MASTER CYL, HB II (INCL 2-4)
    ASM-TANDEM MASTER CYL, HB II (INCL 2-4)
  • 2
    2203455 KIT, CAP, MASTER CYLINDER TANDEM
    KIT, CAP, MASTER CYLINDER TANDEM
  • 3
    2203456 KIT, CLEVIS, MASTER CYLINDER TANDEM
    KIT, CLEVIS, MASTER CYLINDER TANDEM
  • 4
    2203457 KIT, NUTS, CLEVIS, MASTER CYLINDER TANDEM
    KIT, NUTS, CLEVIS, MASTER CYLINDER TANDEM
  • 5
    1911907 LINE-BRAKE, REAR, LEFT, BRD, INTL
    LINE-BRAKE, REAR, LEFT, BRD, INTL
  • 6
    1911906 LINE-BRAKE, FRONT, RIGHT, BRD, INT
    LINE-BRAKE, FRONT, RIGHT, BRD, INT
  • 7
    1910958 BOLT, BANJO, 10MM X 1.25-6G
    BOLT, BANJO, 10MM X 1.25-6G
  • 8
    1910499 BOLT, BANJO, 10MMX1.00
    BOLT, BANJO, 10MMX1.00
  • 9
    1911908 LINE-BRAKE, REAR, RIGHT, BRD, INTL
    LINE-BRAKE, REAR, RIGHT, BRD, INTL
  • 10
    5413212 SEAL
    SEAL
  • 11
    7052293 FITTING-TEE, BRAKE
    FITTING-TEE, BRAKE
  • 12
    4014225 SWITCH-BRK, M10X1.25, DBL, SEALED
    SWITCH-BRK, M10X1.25, DBL, SEALED
  • 13
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    5439192 RETAINER, BRAKE LINE, 1 IN
    RETAINER, BRAKE LINE, 1 IN
  • 15
    7621323 RIVET
    RIVET
  • 16
    7512025 SCREW
    SCREW
  • 17
    7512084 SCREW
    SCREW
  • 18
    7080499 CLAMP, CABLE
    CLAMP, CABLE
  • 19
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 20
    7670102 CLIP
    CLIP
  • 21
    1911921 LINE-BRAKE, MASTER TO REAR, INTL
    LINE-BRAKE, MASTER TO REAR, INTL
  • 22
    1911905 LINE-BRAKE, FRONT, LEFT, BRD, INTL
    LINE-BRAKE, FRONT, LEFT, BRD, INTL
  • 23
    5251507 SHIELD-MASTER CYL
    SHIELD-MASTER CYL
  • 25
    7518760 BOLT, FLANGED
    BOLT, FLANGED
  • 26
    7519298 SCR-HXFL-M8X1.25X60 8.8 ZOD
    SCR-HXFL-M8X1.25X60 8.8 ZOD
  • 27
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 28
    7555954 WSHR-.344X.750X.062-Y
    WSHR-.344X.750X.062-Y
