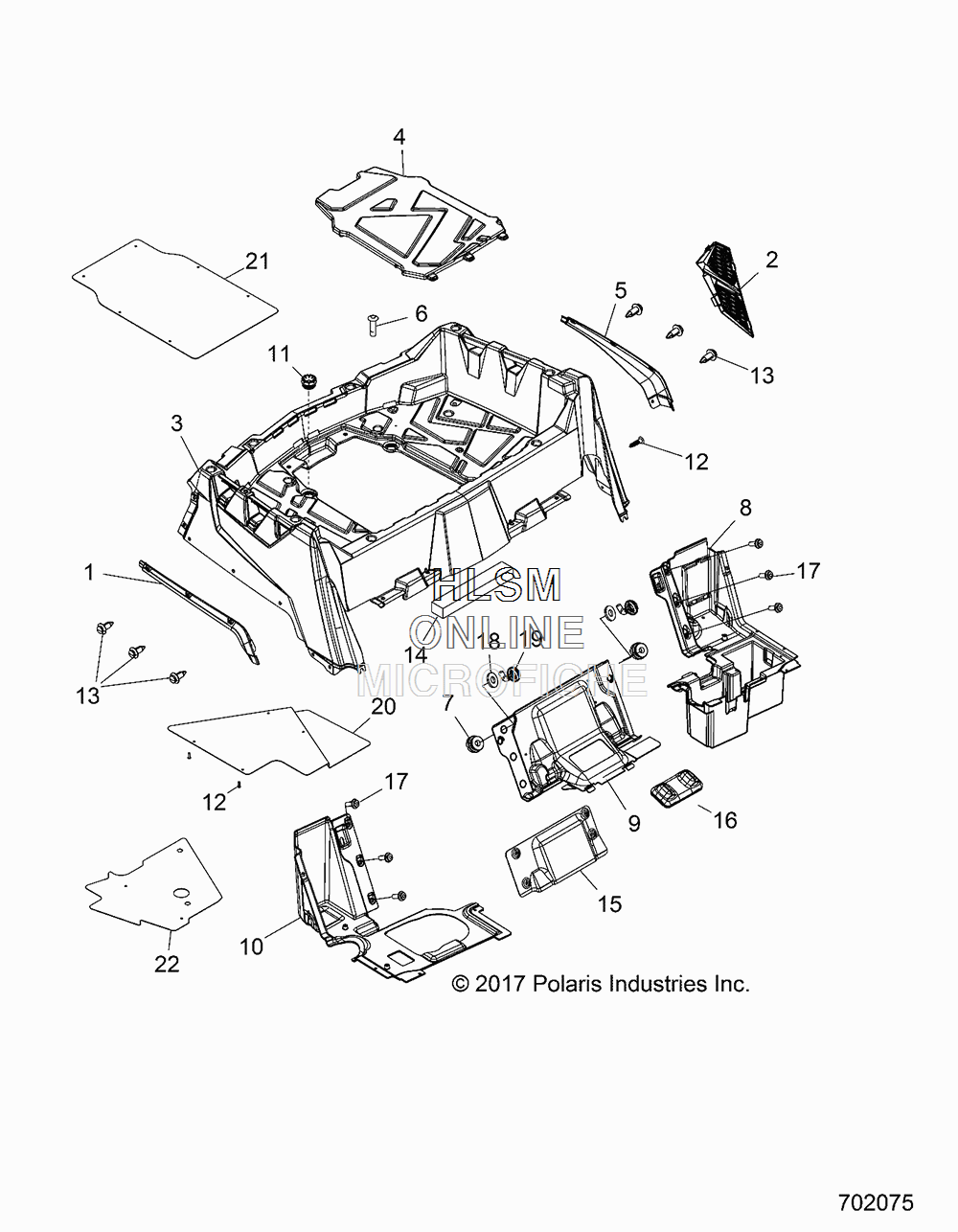

REAR RACK AND FENDERS для Polaris RZR 570 EPS NAVY BLUE [Z18VHE57BV] - 2018 года выпуска
-
№АртикулНазвание
-
15438956-070 FLAIR, FENDER, REAR, RIGHT HAND BLACKFLAIR, FENDER, REAR, RIGHT HAND BLACK
-
25438941-070 PANEL, FILTER, FENDER, LEFT HAND, BLACKPANEL, FILTER, FENDER, LEFT HAND, BLACK
-
32636406-070 ASM-RACK, REAR, BLACK (INCL. DECAL)ASM-RACK, REAR, BLACK (INCL. DECAL)
-
45438906-070 BOX, MAINT PANEL, REMOVABLEBOX, MAINT PANEL, REMOVABLE
-
55438955-070 FLAIR, FENDER, REAR, LEFT HAND, BLACKFLAIR, FENDER, REAR, LEFT HAND, BLACK
-
67517685 SCREWSCREW
-
75413428 GROMMET, LATCHGROMMET, LATCH
-
85438336-070 PANEL, DIVIDER, REAR, LEFT HAND, BLACKPANEL, DIVIDER, REAR, LEFT HAND, BLACK
-
95439327-070 PANEL, DIVIDER, REAR, BLACKPANEL, DIVIDER, REAR, BLACK
-
105438957-070 PANEL, DIVIDER, REAR, RIGHT HAND, BLACKPANEL, DIVIDER, REAR, RIGHT HAND, BLACK
-
115412507 GROMMETGROMMET
-
127512026 SCREWSCREW
-
137661855 RIVETRIVET
-
145813751 SEAL, PANELSEAL, PANEL
-
155814477 SHIELD-FOIL, FRONT PANELSHIELD-FOIL, FRONT PANEL
-
165813553 COVER, SEAT BELT BUCKLE, REARCOVER, SEAT BELT BUCKLE, REAR
-
177512084 SCREWSCREW
-
187555919 WASHERWASHER
-
197081500 LATCH, 1/4 TURNLATCH, 1/4 TURN
-
205264459 SHIELD-HEAT, BOX, FRONTSHIELD-HEAT, BOX, FRONT
-
215264460 SHIELD-HEAT, ACCESS PANELSHIELD-HEAT, ACCESS PANEL
-
225264458 SHIELD-HEAT, BOX, REARSHIELD-HEAT, BOX, REAR
