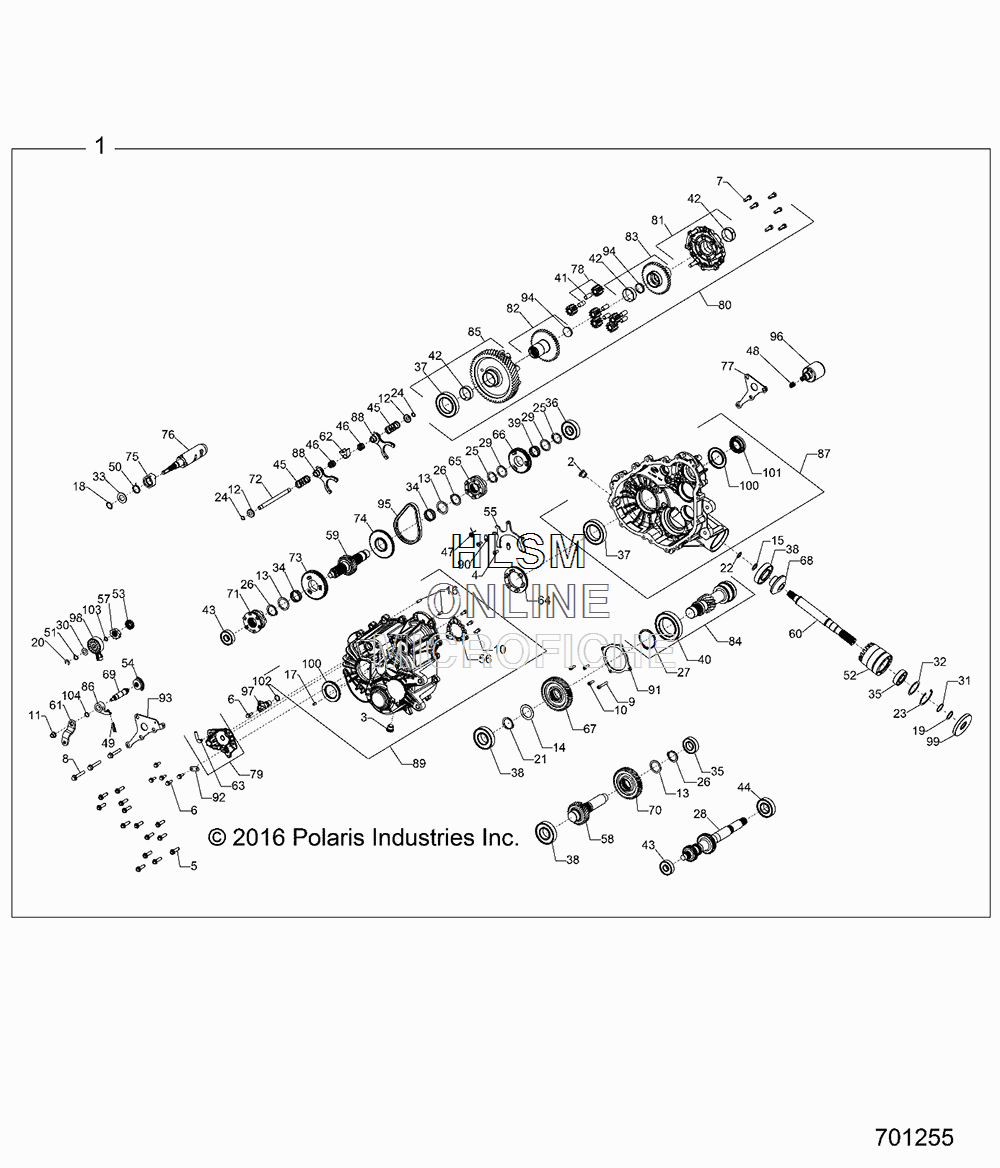

GEARCASE для Polaris RZR 570 EPS NAVY BLUE [Z18VHE57BV] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1333661 ASM-GEARCASE, EBS (INCL. ALL)
    ASM-GEARCASE, EBS (INCL. ALL)
  • 2
    3234755 PLUG M18 X 1.5
    PLUG M18 X 1.5
  • 3
    3234756 PLUG M18 X 1.5, MAGNETIC
    PLUG M18 X 1.5, MAGNETIC
  • 4
    3234309 SCREW, TORX PAN HD M6 X 1 X 16
    SCREW, TORX PAN HD M6 X 1 X 16
  • 5
    3234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
    SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
  • 6
    3235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20
    SCREW, HEX FLANGE HEAD M6 X 1 X 20
  • 7
    3235096 SCREW, CAP HH M8-1.25 X 25
    SCREW, CAP HH M8-1.25 X 25
  • 8
    3235207 SCREW HEX FLANGE M8 X 50
    SCREW HEX FLANGE M8 X 50
  • 9
    3235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40
    SCREW, SOCKET HEAD CAP, M6 X 1 X 40
  • 10
    3235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18
    SCREW, SOCKET HEAD CAP, M6 X 1 X 18
  • 11
    3235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25
    NUT, LOCK HEX FLANGE NYLON M8 X 1.25
  • 12
    3234091 WASHER CUP
    WASHER CUP
  • 13
    3235211 WASHER 32.3 X 42 X 1.5
    WASHER 32.3 X 42 X 1.5
  • 14
    3235212 WASHER 35.6 X 50 X 1.5
    WASHER 35.6 X 50 X 1.5
  • 15
    3235213 WASHER 17.3 X 25 X 1.5
    WASHER 17.3 X 25 X 1.5
  • 16
    3234330 PIN, DOWEL 6 X 20
    PIN, DOWEL 6 X 20
  • 17
    7043746 PIN, SPRING SLOTTED 6 X 12
    PIN, SPRING SLOTTED 6 X 12
  • 18
    3233045 RING, RETAINING BASIC EXTERNAL 0.75
    RING, RETAINING BASIC EXTERNAL 0.75
  • 19
    3233106 RING, RETAINING BASIC EXTERNAL 0.984
    RING, RETAINING BASIC EXTERNAL 0.984
  • 21
    3233364 RING, RETAINING SHAFT, DIA. 1.375
    RING, RETAINING SHAFT, DIA. 1.375
  • 22
    3234318 RING, RETAINING EXTERNAL SHR-66
    RING, RETAINING EXTERNAL SHR-66
  • 23
    3234269 RING, RETAINING BASIC INTERNAL 2.047
    RING, RETAINING BASIC INTERNAL 2.047
  • 24
    3234090 RING, RETAINING BASIC EXTERNAL 0.428
    RING, RETAINING BASIC EXTERNAL 0.428
  • 25
    3234205 RING, RETAINING
    RING, RETAINING
  • 26
    3235214 RING, EXTERNAL SNAP 32 X 2.4
    RING, EXTERNAL SNAP 32 X 2.4
  • 27
    3235216 RING, RETAINING VSH-237
    RING, RETAINING VSH-237
  • 28
    3235838 SHAFT, INPUT 42T/20T/31T
    SHAFT, INPUT 42T/20T/31T
  • 29
    3233378 WASHER, THRUST 1.187 X 1.5 X 0.06
    WASHER, THRUST 1.187 X 1.5 X 0.06
  • 30
    3234642 WASHER, THRUST 0.446 X 0.88 X 0.025
    WASHER, THRUST 0.446 X 0.88 X 0.025
  • 31
    3234272 SHIM 1.18 OD X 0.995 ID
    SHIM 1.18 OD X 0.995 ID
  • 32
    3234273 SHIM 2.04 OD X 1.63 ID
    SHIM 2.04 OD X 1.63 ID
  • 33
    3235883 SPACER 19.4 X 34 X 2
    SPACER 19.4 X 34 X 2
  • 34
    3233014 BEARING, NEEDLE CAGE ASSY
    BEARING, NEEDLE CAGE ASSY
  • 35
    3233019 BEARING, BALL 6205 C3 25X52X15
    BEARING, BALL 6205 C3 25X52X15
  • 36
    3233020 BEARING, BALL 6305 C3, 25 X 62 X 17
    BEARING, BALL 6305 C3, 25 X 62 X 17
  • 37
    3233268 BEARING, BALL 6010 C3 50X80X16
    BEARING, BALL 6010 C3 50X80X16
  • 38
    3234065 BEARING, BALL 6207 C3 35X72X17
    BEARING, BALL 6207 C3 35X72X17
  • 39
    3233384 BEARING, NEEDLE CAGE ASSY
    BEARING, NEEDLE CAGE ASSY
  • 40
    3235218 BEARING, BALL 6012 C3 60 X 95 X 18
    BEARING, BALL 6012 C3 60 X 95 X 18
  • 41
    3234239 BEARING, PLAIN 10X12X25
    BEARING, PLAIN 10X12X25
  • 42
    3234241 PLAIN, BEARING 40X44X15
    PLAIN, BEARING 40X44X15
  • 43
    3234652 BEARING, BALL 6303 17 X 47 X 14
    BEARING, BALL 6303 17 X 47 X 14
  • 44
    3235496 BEARING, BALL 620RSH2 STD 30 X 62 X 16
    BEARING, BALL 620RSH2 STD 30 X 62 X 16
  • 45
    3234078 SPRING, COMPRESSION 0.92 O.D. X 2
    SPRING, COMPRESSION 0.92 O.D. X 2
  • 46
    3234089 SPRING, COMPRESSION 0.46 I.D. X 0.73
    SPRING, COMPRESSION 0.46 I.D. X 0.73
  • 47
    3234276 SPRING, TORSION RETURN
    SPRING, TORSION RETURN
  • 48
    3234277 SPRING, COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE
    SPRING, COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE
  • 49
    3234578 SPRING, COMPRESSION DETENT
    SPRING, COMPRESSION DETENT
  • 50
    3235885 SPRING TORSION
    SPRING TORSION
  • 51
    3235327 SPRING, WASHER
    SPRING, WASHER
  • 52
    3234278 TUBE, SNORKEL MACH
    TUBE, SNORKEL MACH
  • 53
    3233839 GEAR, SECTOR 16T
    GEAR, SECTOR 16T
  • 54
    3233832 GEAR, SECTOR 31T
    GEAR, SECTOR 31T
  • 55
    3235455 FORK, PIVOT SHIFT REAR DIFF
    FORK, PIVOT SHIFT REAR DIFF
  • 56
    3235456 PLATE, PARK 12-FACE
    PLATE, PARK 12-FACE
  • 57
    3235982 STAR, DETENT
    STAR, DETENT
  • 58
    3235223 SHAFT, IDLER 29T
    SHAFT, IDLER 29T
  • 59
    3235380 SHAFT, REVERSE 27T
    SHAFT, REVERSE 27T
  • 60
    3235394 SHAFT, FRONT OUTPUT
    SHAFT, FRONT OUTPUT
  • 61
    3235386 BELLCRANK, 92 DEG
    BELLCRANK, 92 DEG
  • 62
    3234073 COLLAR, SHIFT
    COLLAR, SHIFT
  • 63
    3234230 TUBE, VENT 90 -1/4" HOSE
    TUBE, VENT 90 -1/4" HOSE
  • 64
    3234928 DOG, ENGAGEMENT
    DOG, ENGAGEMENT
  • 65
    3235233 ENGAGEMENT DOG, 6-FACE
    ENGAGEMENT DOG, 6-FACE
  • 66
    3235234 GEAR, 53T
    GEAR, 53T
  • 67
    3235236 GEAR, 46T STAGE 3
    GEAR, 46T STAGE 3
  • 68
    3235237 GEAR, 13T SNORKEL
    GEAR, 13T SNORKEL
  • 69
    3235238 SHAFT SHIFT
    SHAFT SHIFT
  • 70
    3235381 GEAR, 46T STAGE 2
    GEAR, 46T STAGE 2
  • 71
    3235457 SHIFT DOG, PARK
    SHIFT DOG, PARK
  • 72
    3235542 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 73
    3235561 GEAR, LOW 61T
    GEAR, LOW 61T
  • 74
    3235755 SPROCKET 48T 6-FACE
    SPROCKET 48T 6-FACE
  • 75
    3235983 PARK CAM
    PARK CAM
  • 76
    3235984 DRUM, SHIFT MACH
    DRUM, SHIFT MACH
  • 77
    3235239 WELDMENT REAR MOUNT BRACKET
    WELDMENT REAR MOUNT BRACKET
  • 78
    3234469 PLANET GEAR SUBASSEMBLY (INCLUDES BUSHING)
    PLANET GEAR SUBASSEMBLY (INCLUDES BUSHING)
  • 79
    3235713 SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
    SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
  • 80
    3235373 SUBASSEMBLY, AVALANCHE DIFFERENTIAL
    SUBASSEMBLY, AVALANCHE DIFFERENTIAL
  • 81
    3235376 SUBASSEMBLY, DIFF COVER (INCLUDES PLUG, BUSHING)
    SUBASSEMBLY, DIFF COVER (INCLUDES PLUG, BUSHING)
  • 82
    3235374 SUBASSEMBLY 39T SIDE GEAR (INCLUDES PLUG)
    SUBASSEMBLY 39T SIDE GEAR (INCLUDES PLUG)
  • 83
    3235375 SUBASSEMBLY 39T SIDE GEAR (INCL. PLUG, BUSHING)
    SUBASSEMBLY 39T SIDE GEAR (INCL. PLUG, BUSHING)
  • 84
    3235336 SUBASSEMBLY PINION (INCLUDES ALL HARDWARE)
    SUBASSEMBLY PINION (INCLUDES ALL HARDWARE)
  • 85
    3235378 SUBASSEMBLY GEAR, 53T (INCL. PINS, BUSHING, BEARING)
    SUBASSEMBLY GEAR, 53T (INCL. PINS, BUSHING, BEARING)
  • 86
    3235452 SUBASSEMBLY, PAWL DETENT, ROLLER
    SUBASSEMBLY, PAWL DETENT, ROLLER
  • 87
    3235757 SUBASSEMBLY LEFT HAND CASE (INCLUDES ALL HARDWARE)
    SUBASSEMBLY LEFT HAND CASE (INCLUDES ALL HARDWARE)
  • 88
    3235920 SUBASSEMBLY, SHIFT FORK
    SUBASSEMBLY, SHIFT FORK
  • 89
    3235995 SUBASSEMBLY RIGHT HAND COVER (INCLUDES ALL HARDWARE)
    SUBASSEMBLY RIGHT HAND COVER (INCLUDES ALL HARDWARE)
  • 90
    3234934 RETAINER, FORK
    RETAINER, FORK
  • 91
    3235241 COVER, BEARING CENTER DRIVE
    COVER, BEARING CENTER DRIVE
  • 92
    3235350 BRACKET WIRE HARNESS
    BRACKET WIRE HARNESS
  • 93
    3235351 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 94
    3234249 PLUG, EXPANSION 37987
    PLUG, EXPANSION 37987
  • 95
    3234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58L
    CHAIN, SILENT, TYPE 101 .25P X .40W X 58L
  • 96
    3235478 SOLENOID
    SOLENOID
  • 97
    4013908 SENSOR SPEED
    SENSOR SPEED
  • 98
    7662299 SWITCH, ROTARY 2 PIN RESISTIVE
    SWITCH, ROTARY 2 PIN RESISTIVE
  • 99
    3234113 SEAL, TRIPLE LIP 25 X 80 X 10
    SEAL, TRIPLE LIP 25 X 80 X 10
  • 100
    3235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7
    SEAL, TRIPLE LIP, VITON 40 X 70 X 7
  • 101
    3235495 SEAL, TRIPLE LIP VITON HELIX 30 X 47
    SEAL, TRIPLE LIP VITON HELIX 30 X 47
  • 102
    3234302 O-RING, -113
    O-RING, -113
  • 103
    3233836 O-RING, -12 VITON
    O-RING, -12 VITON
  • 104
    3233828 O-RING, -14 VITON
    O-RING, -14 VITON
