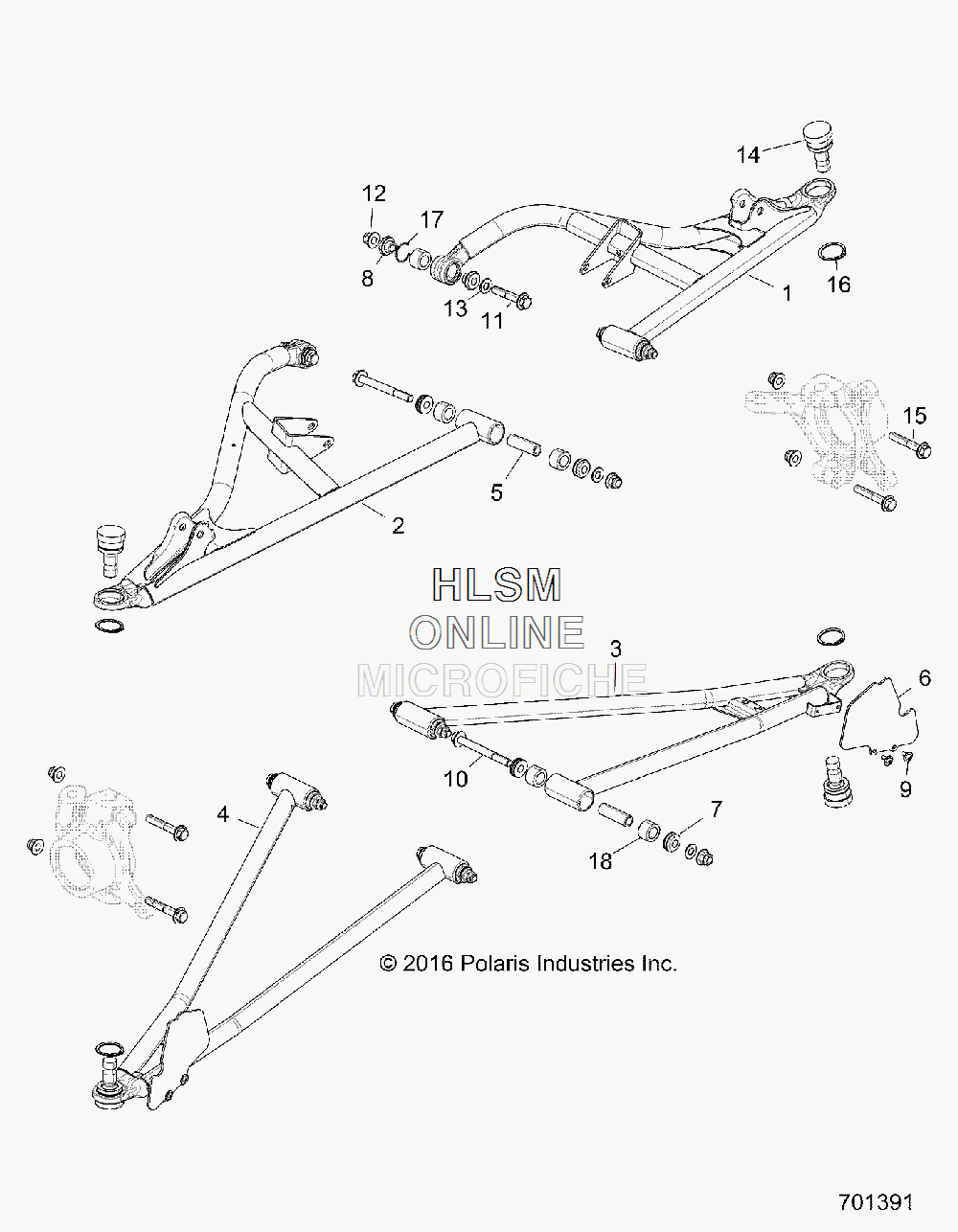

SUSPENSION - FRONT CONTROL ARMS для Polaris RZR XP 4 TURBO INTL (GREEN) [Z17VFE92NG] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021478-293 WELD-CTRL ARM, UPR, FR, LH, 64, RED
    WELD-CTRL ARM, UPR, FR, LH, 64, RED
  • 1
    1021478-385 WELD-CTRL ARM, UPR, FR, LH, 64, SLV
    WELD-CTRL ARM, UPR, FR, LH, 64, SLV
  • 1
    1021478-632 WELD-CTRL ARM, UPR, FR, LH, 64, MTT
    WELD-CTRL ARM, UPR, FR, LH, 64, MTT
  • 2
    1021479-293 WELD-CTRL ARM, UPR, FR, RH, 64, RED
    WELD-CTRL ARM, UPR, FR, RH, 64, RED
  • 2
    1021479-385 WELD-CTRL ARM, UPR, FR, RH, 64, SLV
    WELD-CTRL ARM, UPR, FR, RH, 64, SLV
  • 2
    1021479-632 WELD-CTRL ARM, UPR, FR, RH, 64, MTT
    WELD-CTRL ARM, UPR, FR, RH, 64, MTT
  • 3
    1021480-293 WELD-CTRL ARM, LWR, FR, LH, 64, RED
    WELD-CTRL ARM, LWR, FR, LH, 64, RED
  • 3
    1021480-385 WELD-CTRL ARM, LWR, FR, LH, 64, SLV
    WELD-CTRL ARM, LWR, FR, LH, 64, SLV
  • 3
    1021480-632 WELD-CTRL ARM, LWR, FR, LH, 64, MTT
    WELD-CTRL ARM, LWR, FR, LH, 64, MTT
  • 4
    1021481-293 WELD-CTRL ARM, LWR, FR, RH, 64, RED
    WELD-CTRL ARM, LWR, FR, RH, 64, RED
  • 4
    1021481-385 WELD-CTRL ARM, LWR, FR, RH, 64, SLV
    WELD-CTRL ARM, LWR, FR, RH, 64, SLV
  • 4
    1021481-632 WELD-CTRL ARM, LWR, FR, RH, 64, MTT
    WELD-CTRL ARM, LWR, FR, RH, 64, MTT
  • 5
    5139966 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 6
    5438641-070 SHIELD, CV, FRONT, BLACK
    SHIELD, CV, FRONT, BLACK
  • 7
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 8
    1543735 ASM-PIVOT CAP, SEALED, SLIM, M10
    ASM-PIVOT CAP, SEALED, SLIM, M10
  • 9
    7512084 SCREW
    SCREW
  • 10
    7519043 SCREW
    SCREW
  • 11
    7519285 SCREW
    SCREW
  • 12
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 13
    7556153 WASHER
    WASHER
  • 14
    7081992 BALL, JOINT, HARDENED
    BALL, JOINT, HARDENED
  • 15
    7519306 SCREW
    SCREW
  • 16
    7710716 RING, RETAINING
    RING, RETAINING
  • 17
    7710845 28MM SPIRAL RING, STEEL
    28MM SPIRAL RING, STEEL
  • 18
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
