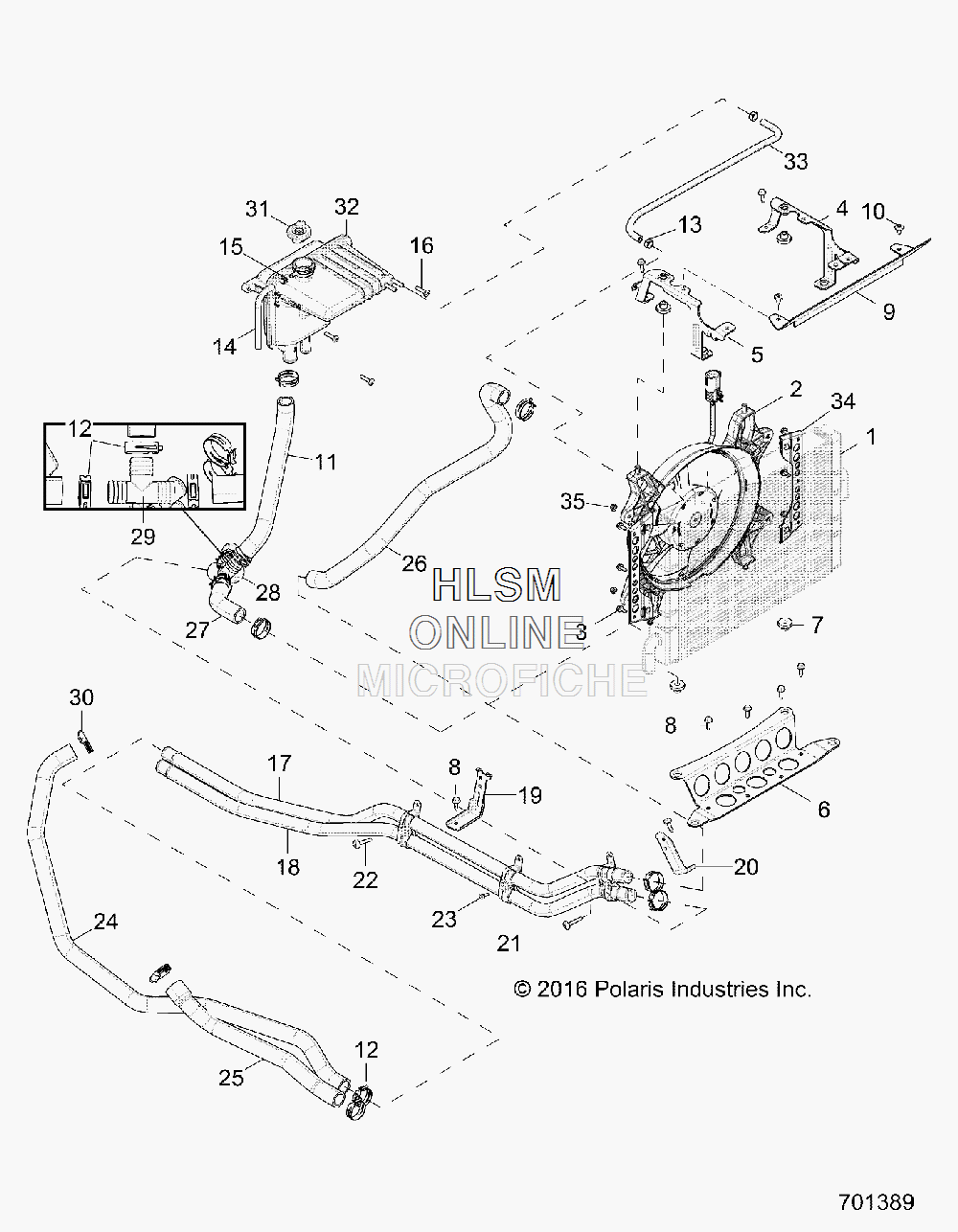

COOLING SYSTEM для Polaris RZR XP 4 TURBO INTL (GREEN) [Z17VFE92NG] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1241117 ASM-CORE, RADIATOR
    ASM-CORE, RADIATOR
  • 2
    2413548 ASM-FAN, BRUSHLESS
    ASM-FAN, BRUSHLESS
  • 3
    7518591 SCR-HXFL-M6X1.0X16 8.8 ZPB
    SCR-HXFL-M6X1.0X16 8.8 ZPB
  • 4
    5263170-329 BRKT-MOUNT, RADIATOR, LH, ECOAT
    BRKT-MOUNT, RADIATOR, LH, ECOAT
  • 5
    5263171-329 BRKT-MOUNT, RADIATOR, RH, ECOAT
    BRKT-MOUNT, RADIATOR, RH, ECOAT
  • 6
    5260767-329 BRKT-MOUNT, RADIATOR, BLK
    BRKT-MOUNT, RADIATOR, BLK
  • 7
    7052028 GROMMET-FLANGED, .36X.56X1.06
    GROMMET-FLANGED, .36X.56X1.06
  • 8
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 9
    5452630 SHROUD-RADIATOR, UPPER
    SHROUD-RADIATOR, UPPER
  • 10
    7518936 SCR-M6X1X16 TR/TX-M
    SCR-M6X1X16 TR/TX-M
  • 11
    5415443 HOSE-OUT, SURGE TANK TO TEE
    HOSE-OUT, SURGE TANK TO TEE
  • 12
    7080844 SPRINGBAND-CLAMP 35/12, BLK
    SPRINGBAND-CLAMP 35/12, BLK
  • 13
    7080003 HOSE CLAMP, RED
    HOSE CLAMP, RED
  • 14
    5813672 HOSE-IAC, SHORT
    HOSE-IAC, SHORT
  • 15
    7080236 CLAMP-HOSE, (7/16)
    CLAMP-HOSE, (7/16)
  • 16
    7518158 SCR-#14X1 HI/LO-PH-PN TRX-M
    SCR-#14X1 HI/LO-PH-PN TRX-M
  • 17
    5139910 TUBE-COOLANT, 1", MP
    TUBE-COOLANT, 1", MP
  • 18
    5139911 TUBE-COOLANT, 1", MP
    TUBE-COOLANT, 1", MP
  • 19
    5259433-329 BRKT-COOLANT TUBE, BLK
    BRKT-COOLANT TUBE, BLK
  • 20
    5260766-329 BRKT-COOLANT TUBE, BLK
    BRKT-COOLANT TUBE, BLK
  • 21
    5451221 BRACKET-COOLANT TUBE
    BRACKET-COOLANT TUBE
  • 22
    7519001 SCR-M6X1X40, TR/TX-BLK
    SCR-M6X1X40, TR/TX-BLK
  • 23
    7512026 SCR-#10X3/4-HI/LO-PN-T25, TRX-M
    SCR-#10X3/4-HI/LO-PN-T25, TRX-M
  • 24
    5414530 HOSE-ENG OUTLET, REAR
    HOSE-ENG OUTLET, REAR
  • 25
    5414976 HOSE-ENG INLET, REAR
    HOSE-ENG INLET, REAR
  • 26
    5416028 HOSE-RADIATOR, UPPER
    HOSE-RADIATOR, UPPER
  • 27
    5416030 HOSE-RADIATOR, LWR, FRONT
    HOSE-RADIATOR, LWR, FRONT
  • 28
    5415446 HOSE-RADIATOR, LWR, REAR
    HOSE-RADIATOR, LWR, REAR
  • 29
    7052373 CONNECTOR-TEE, 1", 1", 1" BARBED
    CONNECTOR-TEE, 1", 1", 1" BARBED
  • 30
    7081192 CLAMP-HOSE(WORM DR)25-40MM
    CLAMP-HOSE(WORM DR)25-40MM
  • 31
    1240300 CAP-PRESSURE
    CAP-PRESSURE
  • 32
    1240943 WELD-SURGE TANK, DUAL
    WELD-SURGE TANK, DUAL
  • 33
    8450120-61 1/4"SAEJ2002, EPDM HOSE, 61 CM
    1/4"SAEJ2002, EPDM HOSE, 61 CM
  • 34
    1241122-329 WELD-BRKT-MNT, FAN, ECOAT
    WELD-BRKT-MNT, FAN, ECOAT
  • 35
    7547339 NUT-M6X1.0, FLG-NYLOC-OLIVE D
    NUT-M6X1.0, FLG-NYLOC-OLIVE D
