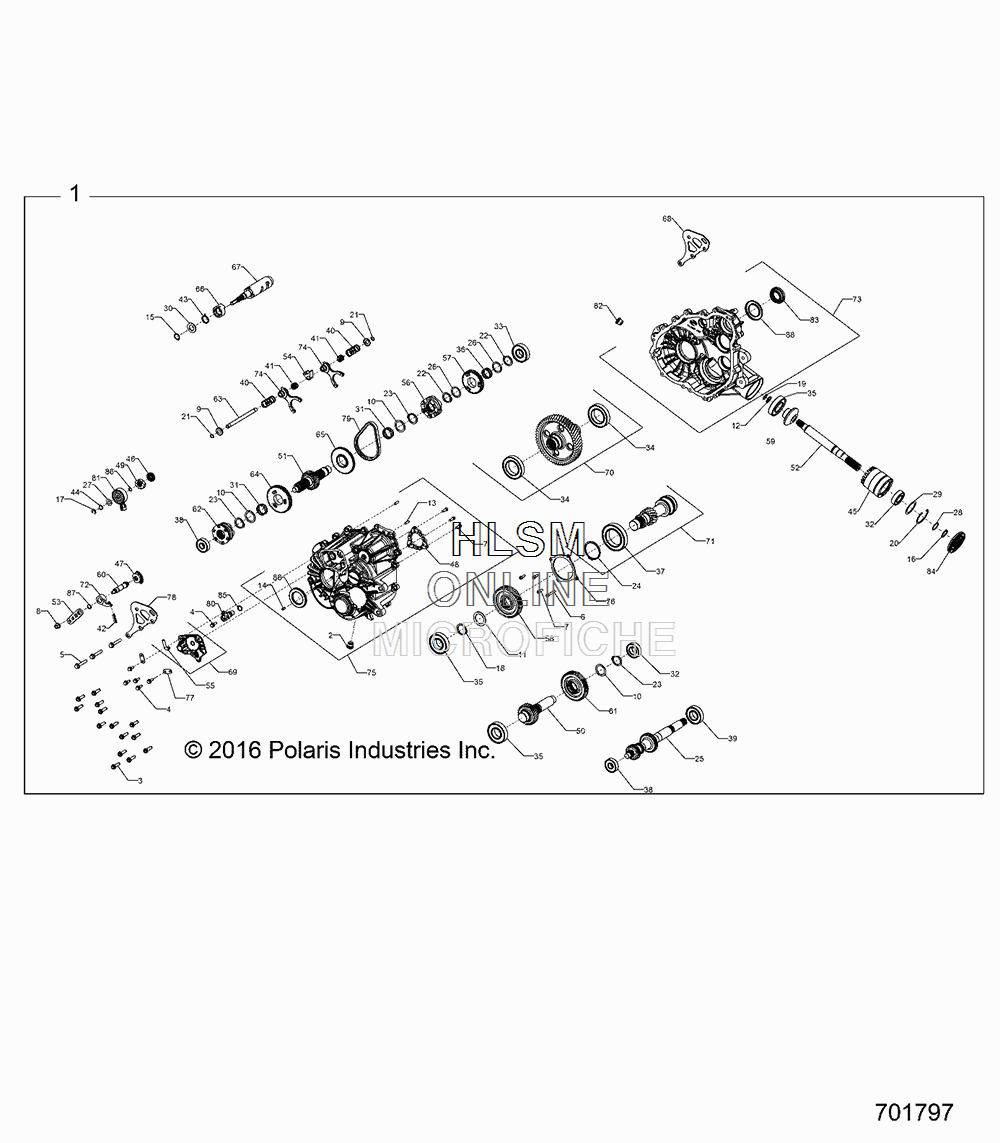

GEARCASE - INTERNAL COMPONENTS для Polaris RZR XP 1000 MD (TITANIUM METALLIC) [Z17VFE99NM] (4-DOOR) - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333695 ASM-GEARCASE, COMPLETE (INCL. ALL)
    ASM-GEARCASE, COMPLETE (INCL. ALL)
  • 2
    3234756 PLUG, M18 X 1.5, MAGNETIC
    PLUG, M18 X 1.5, MAGNETIC
  • 3
    3234898 SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
    SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
  • 4
    3235206 SCREW, HEX FLANGE HEAD, M6 X 1 X 20
    SCREW, HEX FLANGE HEAD, M6 X 1 X 20
  • 5
    3235207 SCREW, HEX FLANGE M8 X 50
    SCREW, HEX FLANGE M8 X 50
  • 6
    3235208 SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
    SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
  • 7
    3235332 SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
    SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
  • 8
    3235210 NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
    NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
  • 9
    3234091 WASHER, CUP
    WASHER, CUP
  • 10
    3235211 WASHER, 32.3 X 42 X 1.5
    WASHER, 32.3 X 42 X 1.5
  • 11
    3235212 WASHER, 35.6 X 50 X 1.5
    WASHER, 35.6 X 50 X 1.5
  • 12
    3235213 WASHER, 17.3 X 25 X 1.5
    WASHER, 17.3 X 25 X 1.5
  • 13
    3234330 PIN, DOWEL, 6 X 20
    PIN, DOWEL, 6 X 20
  • 14
    7043746 PIN, SPRING, SLOTTED 6 X 12
    PIN, SPRING, SLOTTED 6 X 12
  • 15
    3233045 RING, RETAINING BASIC, EXTERNAL 0.75
    RING, RETAINING BASIC, EXTERNAL 0.75
  • 16
    3233106 RING, RETAINING BASIC, EXTERNAL 0.984
    RING, RETAINING BASIC, EXTERNAL 0.984
  • 17
    3233834 RING, SNAP
    RING, SNAP
  • 18
    3233364 RING, RETAINING, SHAFT, DIA. 1.375
    RING, RETAINING, SHAFT, DIA. 1.375
  • 19
    3234318 RING, RETAINING, EXTERNAL SHR-66
    RING, RETAINING, EXTERNAL SHR-66
  • 20
    3234269 RING, RETAINING BASIC, INTERNAL 2.047
    RING, RETAINING BASIC, INTERNAL 2.047
  • 21
    3234090 RING, RETAINING BASIC, EXTERNAL 0.428
    RING, RETAINING BASIC, EXTERNAL 0.428
  • 22
    3234205 RING, RETAINING,
    RING, RETAINING,
  • 23
    3235214 RING, EXTERNAL SNAP, 32 X 2.4
    RING, EXTERNAL SNAP, 32 X 2.4
  • 24
    3235216 RING, RETAINING, VSH-237
    RING, RETAINING, VSH-237
  • 25
    3235838 SHAFT, INPUT, 42T/20T/31T
    SHAFT, INPUT, 42T/20T/31T
  • 26
    3233378 WASHER, THRUST, 1.187 X 1.5 X 0.06
    WASHER, THRUST, 1.187 X 1.5 X 0.06
  • 27
    3234642 WASHER, THRUST, 0.446 X 0.88 X 0.025
    WASHER, THRUST, 0.446 X 0.88 X 0.025
  • 28
    3234272 SHIM, 1.18 OD X 0.995 ID
    SHIM, 1.18 OD X 0.995 ID
  • 29
    3234273 SHIM, 2.04 OD X 1.63 ID
    SHIM, 2.04 OD X 1.63 ID
  • 30
    3235883 SPACER, 19.4 X 34 X 2
    SPACER, 19.4 X 34 X 2
  • 31
    3233014 BEARING, NEEDLE, CAGE ASSY
    BEARING, NEEDLE, CAGE ASSY
  • 32
    3233019 BEARING, BALL, 6205 C3 25X52X15
    BEARING, BALL, 6205 C3 25X52X15
  • 33
    3233020 BEARING, BALL, 6305 C3, 25 X 62 X 17
    BEARING, BALL, 6305 C3, 25 X 62 X 17
  • 34
    3233268 BEARING, BALL, 6010 C3 50X80X16
    BEARING, BALL, 6010 C3 50X80X16
  • 35
    3234065 BEARING, BALL, 6207 C3 35X72X17
    BEARING, BALL, 6207 C3 35X72X17
  • 36
    3233384 BEARING, NEEDLE, CAGE ASSY
    BEARING, NEEDLE, CAGE ASSY
  • 37
    3235218 BEARING, BALL 6012 C3, 60 X 95 X 18
    BEARING, BALL 6012 C3, 60 X 95 X 18
  • 38
    3234652 BEARING, BALL 6303, 17 X 47 X 14
    BEARING, BALL 6303, 17 X 47 X 14
  • 39
    3235496 BEARING, BALL, 6206RSH2 STD 30X62X16
    BEARING, BALL, 6206RSH2 STD 30X62X16
  • 40
    3234078 SPRING, COMPRESSION, 0.92 O.D. X 2
    SPRING, COMPRESSION, 0.92 O.D. X 2
  • 41
    3234089 SPRING, COMPRESSION, 0.46 I.D. X 0.73
    SPRING, COMPRESSION, 0.46 I.D. X 0.73
  • 42
    3234578 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 43
    3235885 SPRING, TORSION
    SPRING, TORSION
  • 44
    3235327 SPRING, WASHER,
    SPRING, WASHER,
  • 45
    3234278 TUBE, SNORKEL MACH,
    TUBE, SNORKEL MACH,
  • 46
    3233839 GEAR, SECTOR 16T,
    GEAR, SECTOR 16T,
  • 47
    3233832 GEAR, SECTOR, 31T
    GEAR, SECTOR, 31T
  • 48
    3235456 PLATE, PARK, 12-FACE
    PLATE, PARK, 12-FACE
  • 49
    3235982 STAR, DETENT,
    STAR, DETENT,
  • 50
    3235223 SHAFT, IDLER 29T,
    SHAFT, IDLER 29T,
  • 51
    3235380 SHAFT, REVERSE 27T,
    SHAFT, REVERSE 27T,
  • 52
    3235394 SHAFT, FRONT OUTPUT,
    SHAFT, FRONT OUTPUT,
  • 53
    3235227 BELLCRANK, 92 DEGREE
    BELLCRANK, 92 DEGREE
  • 54
    3234073 COLLAR, SHIFT,
    COLLAR, SHIFT,
  • 55
    3234230 TUBE, VENT, 90 -1/4" HOSE
    TUBE, VENT, 90 -1/4" HOSE
  • 56
    3235233 ENGAGEMENT DOG, , 6-FACE
    ENGAGEMENT DOG, , 6-FACE
  • 57
    3235234 GEAR, 53T,
    GEAR, 53T,
  • 58
    3235236 GEAR, 46T STAGE 3,
    GEAR, 46T STAGE 3,
  • 59
    3235237 GEAR, 13T SNORKEL,
    GEAR, 13T SNORKEL,
  • 60
    3235238 SHAFT, SHIFT
    SHAFT, SHIFT
  • 61
    3235381 GEAR, 46T STAGE 2
    GEAR, 46T STAGE 2
  • 62
    3235457 SHIFT DOG, PARK,
    SHIFT DOG, PARK,
  • 63
    3235542 RAIL, SHIFT SHAFT,
    RAIL, SHIFT SHAFT,
  • 64
    3235561 GEAR, LOW 61T
    GEAR, LOW 61T
  • 65
    3235755 SPROCKET 48T, 6-FACE
    SPROCKET 48T, 6-FACE
  • 66
    3235983 PARK CAM,
    PARK CAM,
  • 67
    3235984 DRUM, SHIFT MACH,
    DRUM, SHIFT MACH,
  • 68
    3235558 WELDMENT, , REAR MOUNT BRACKET
    WELDMENT, , REAR MOUNT BRACKET
  • 69
    3235713 SUBASSEMBLY, SECTOR COVER
    SUBASSEMBLY, SECTOR COVER
  • 70
    3235335 SUBASSEMBLY, OUTPUT
    SUBASSEMBLY, OUTPUT
  • 71
    3235336 SUBASSEMBLY, PINION
    SUBASSEMBLY, PINION
  • 72
    3235452 SUBASSEMBLY, PAWL, DETENT, ROLLER
    SUBASSEMBLY, PAWL, DETENT, ROLLER
  • 73
    3235514 SUBASSEMBLY, LEFT HAND CASE
    SUBASSEMBLY, LEFT HAND CASE
  • 74
    3235920 SUBASSEMBLY, SHIFT FORK
    SUBASSEMBLY, SHIFT FORK
  • 75
    3235996 SUBASSEMBLY, RIGHT HAND COVER
    SUBASSEMBLY, RIGHT HAND COVER
  • 76
    3235241 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 77
    3235350 BRACKET, WIRE HARNESS
    BRACKET, WIRE HARNESS
  • 78
    3235559 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 79
    3234737 CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
    CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
  • 80
    4013908 SENSOR, SPEED
    SENSOR, SPEED
  • 81
    7662299 SWITCH, ROTARY, 2 PIN RESISTIVE
    SWITCH, ROTARY, 2 PIN RESISTIVE
  • 82
    3234755 PLUG, M18 X 1.5
    PLUG, M18 X 1.5
  • 83
    3235495 SEAL, TRIPLE LIP, VITON HELIX 30 X 47
    SEAL, TRIPLE LIP, VITON HELIX 30 X 47
  • 84
    3235658 SEAL, TRIPLE LIP, VITON 25 X 80 X 10
    SEAL, TRIPLE LIP, VITON 25 X 80 X 10
  • 85
    3234302 O-RING, -113
    O-RING, -113
  • 86
    3233836 O-RING, -12 VITON
    O-RING, -12 VITON
  • 87
    3233828 O-RING, -14 VITON
    O-RING, -14 VITON
  • 88
    3235052 SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
    SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
