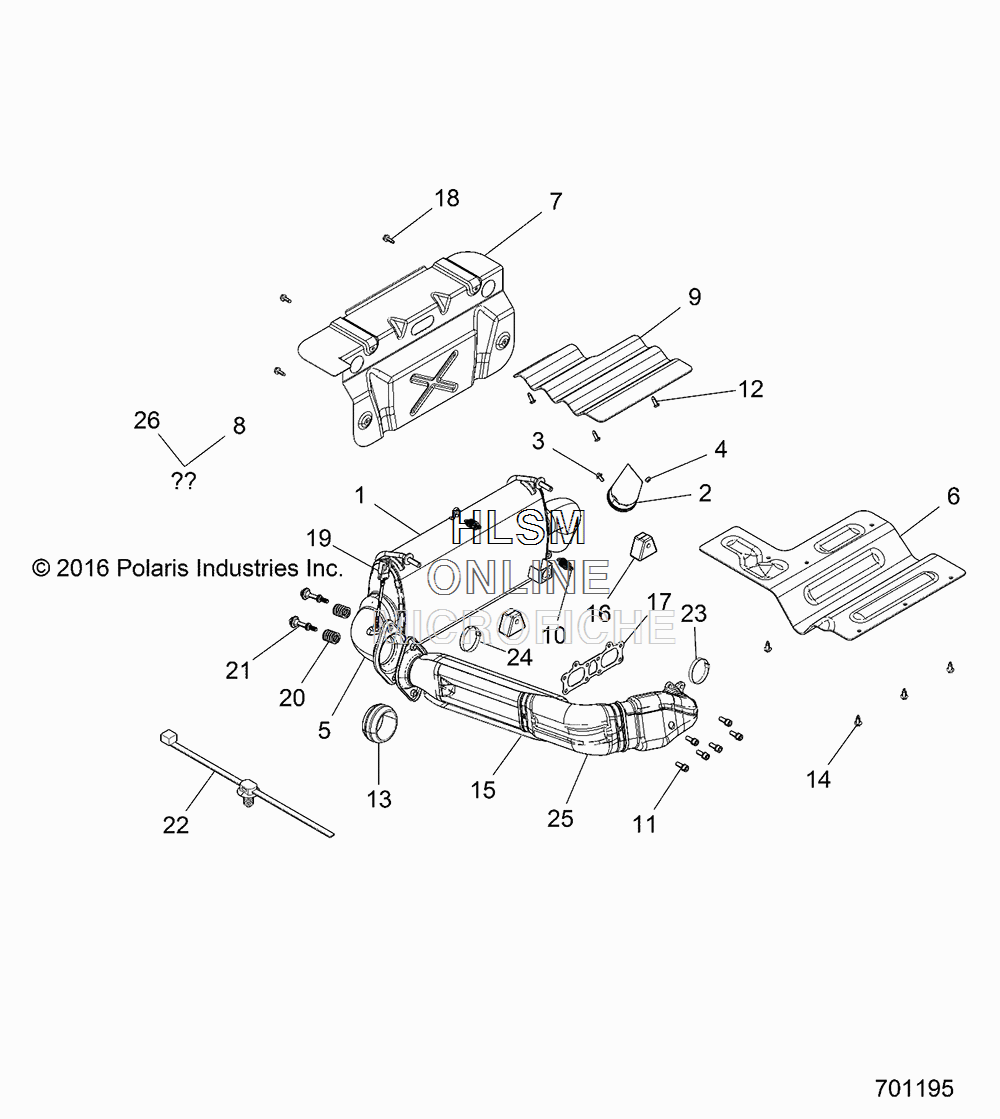

EXHAUST SYSTEM для Polaris RZR XP 1000 MD (TITANIUM METALLIC) [Z17VFE99NM] (4-DOOR) - 2017 года выпуска
-
№АртикулНазвание
-
11262928 ASM-SILENCER (INCL. 2-5)ASM-SILENCER (INCL. 2-5)
-
21262390 ARRESTOR, SPARKARRESTOR, SPARK
-
37517257 SCREWSCREW
-
47547120 NUTNUT
-
57555935 WASHER-.28 X .81 X .06, ST-MWASHER-.28 X .81 X .06, ST-M
-
65814245 SHIELD-BOX, FRONTSHIELD-BOX, FRONT
-
75260102 SHIELD, FOIL, REAR BOX (BUILT UP TO 6/13/16)SHIELD, FOIL, REAR BOX (BUILT UP TO 6/13/16)
-
75263026 SHIELD-REAR, AL (BUILT AFTER 6/14/16)SHIELD-REAR, AL (BUILT AFTER 6/14/16)
-
87518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
95262942 SHIELD-ACCESS PANELSHIELD-ACCESS PANEL
-
107041789 SPRING, EXHAUSTSPRING, EXHAUST
-
117518984 SCREWSCREW
-
127519045 SCREWSCREW
-
133610236 GASKET, DOUBLE, SPHERICAL, 2.5 INGASKET, DOUBLE, SPHERICAL, 2.5 IN
-
147661855 RIVETRIVET
-
151262599 ASM., HEADPIPE (INCL. 23-25)ASM., HEADPIPE (INCL. 23-25)
-
165450115 MOUNT, ISOLATORMOUNT, ISOLATOR
-
173610184 GASKET, EXHAUST SEALGASKET, EXHAUST SEAL
-
187518529 SCREWSCREW
-
194016021 SENSOR, OXYGENSENSOR, OXYGEN
-
207044274 SPRING, SPHERICAL, EXHAUSTSPRING, SPHERICAL, EXHAUST
-
217520079 STUD, SPHERICAL, EXHAUSTSTUD, SPHERICAL, EXHAUST
-
227081496 CLIP, ROUTINGCLIP, ROUTING
-
237081156 CLAMP-HEAT SHIELD, EXHAUSTCLAMP-HEAT SHIELD, EXHAUST
-
247081579 CLAMP-HEAT SHIELD, EXHAUSTCLAMP-HEAT SHIELD, EXHAUST
-
255257570 SHIELD-HEAT, HEADPIPE, OUTSIDESHIELD-HEAT, HEADPIPE, OUTSIDE
-
267556329 WASHER-.281X1.00X.051WASHER-.281X1.00X.051
