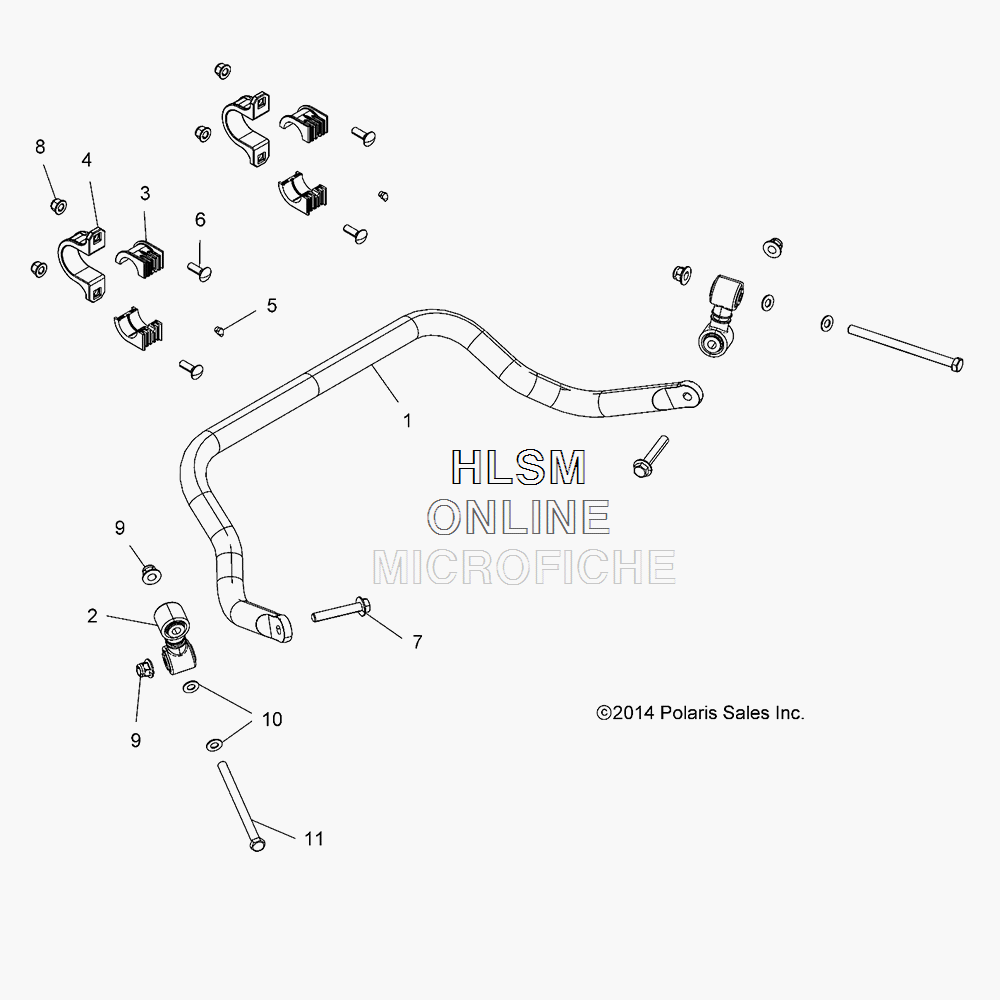

REAR STABILIZER BAR для Polaris RZR 900 50 IN TRAIL (BLACK PEARL) [Z17VAE87NK] - 2017 года выпуска
-
№АртикулНазвание
-
15338118 BAR, STABILIZERBAR, STABILIZER
-
21543406 ASM., LINKAGE, STABILIZER BAR, 4MMASM., LINKAGE, STABILIZER BAR, 4MM
-
35451438 BUSHING, REAR BARBUSHING, REAR BAR
-
45633408 BRKT-CAP, SWAY BAR, 1.25 INBRKT-CAP, SWAY BAR, 1.25 IN
-
57080438 FITTING, LUBFITTING, LUB
-
67519073 SCR-RIGHT HANDCAR-M10X1.25X50 8.8 ZODSCR-RIGHT HANDCAR-M10X1.25X50 8.8 ZOD
-
77519306 SCREW, HEX FLANGESCREW, HEX FLANGE
-
87547423 NUT-M10X1.5 HFN NYLOC ZODNUT-M10X1.5 HFN NYLOC ZOD
-
97547333 NUT, FLANGE, NYLOCKNUT, FLANGE, NYLOCK
-
107556153 WASHERWASHER
-
117519897 SCREWSCREW
