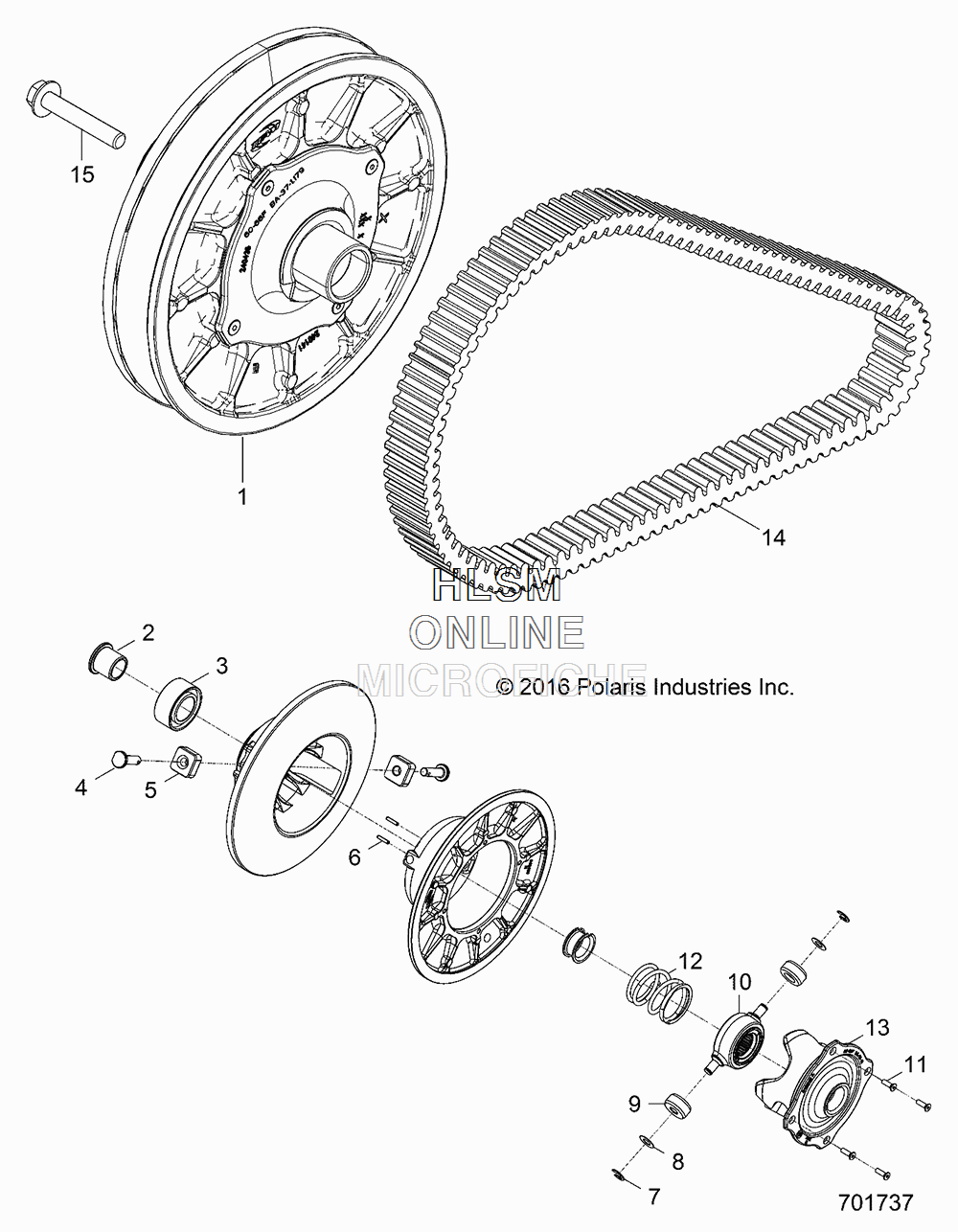

CLUTCH- SECONDARY для Polaris RZR 900 50 IN TRAIL (BLACK PEARL) [Z17VAE87NK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1323403 ASM., CLUTCH, DRIVEN 30MM (INCL 2-11)
    ASM., CLUTCH, DRIVEN 30MM (INCL 2-11)
  • 2
    3235999 BUSHING, TOP HAT
    BUSHING, TOP HAT
  • 3
    3514925 BEARING
    BEARING
  • 4
    3234201 PIN, ROLLER
    PIN, ROLLER
  • 5
    3514926 PUCK, SQUARE
    PUCK, SQUARE
  • 6
    3234202 PIN, SLOTTED SPRING
    PIN, SLOTTED SPRING
  • 7
    7710523 RING, RETAINING
    RING, RETAINING
  • 8
    7556226 WASHER, THRUST
    WASHER, THRUST
  • 9
    3514929 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 10
    5140135 SPIDER
    SPIDER
  • 11
    3234754 SCREW
    SCREW
  • 12
    7044505 SPRING
    SPRING
  • 13
    3235939 CAM ASSEMBLY
    CAM ASSEMBLY
  • 14
    3211172 BELT, DRIVE, 10.5 IN
    BELT, DRIVE, 10.5 IN
  • 15
    7519306 SCR-HXFL-M10X1.25X60 10.9 ZOD
    SCR-HXFL-M10X1.25X60 10.9 ZOD
