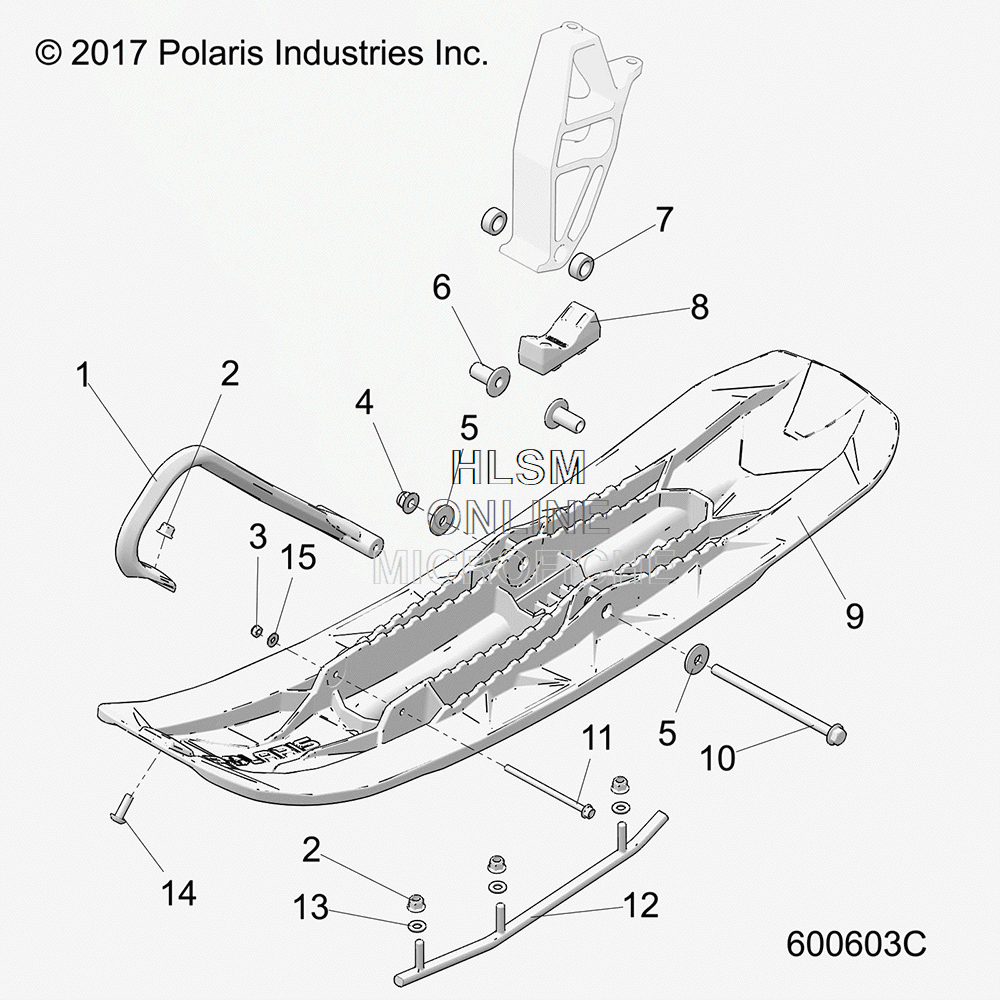

SKI ASSEMBLY для Polaris 800 TITAN SP (S18FJB8) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-133 TOE, PLASTIC SKI, BRIGHT WHITE
    TOE, PLASTIC SKI, BRIGHT WHITE
  • 2
    7547650 NUT, FLANGE
    NUT, FLANGE
  • 3
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 4
    7547313 NUT-M10X1.5, HXFLG, NYLON INS
    NUT-M10X1.5, HXFLG, NYLON INS
  • 5
    7556130 WASHER-.406X1.25X.125 BELLE-Y
    WASHER-.406X1.25X.125 BELLE-Y
  • 6
    5139104 BUSHING-SKI, METRIC, LONG
    BUSHING-SKI, METRIC, LONG
  • 7
    5137847 SPACER-25.40 ODX16.26 IDX10.65
    SPACER-25.40 ODX16.26 IDX10.65
  • 8
    5416260 STOP, SKI RUBBER
    STOP, SKI RUBBER
  • 9
    1824556-070 ASM-SKI PRO-FLOAT 2 SVC BLACK (INCL. 6)
    ASM-SKI PRO-FLOAT 2 SVC BLACK (INCL. 6)
  • 10
    7518668 SCR-HXFL-M10X1.25X165 8.8 ZY3
    SCR-HXFL-M10X1.25X165 8.8 ZY3
  • 11
    7519985 SCR-HXFL-M6X1.0X110 8.8 ZOD
    SCR-HXFL-M6X1.0X110 8.8 ZOD
  • 12
    2879025 K-SKAG-CARBIDE 4 IN X 60° X 8MM STUD (PAIR)
    K-SKAG-CARBIDE 4 IN X 60° X 8MM STUD (PAIR)
  • 13
    7556524 WASHER-.344X.688X.063 FL-ZOD
    WASHER-.344X.688X.063 FL-ZOD
  • 14
    7518906 SCR-M8X1.25X25 8.8TXTR ZOD P80
    SCR-M8X1.25X25 8.8TXTR ZOD P80
  • 15
    7556737 WASHER
    WASHER
