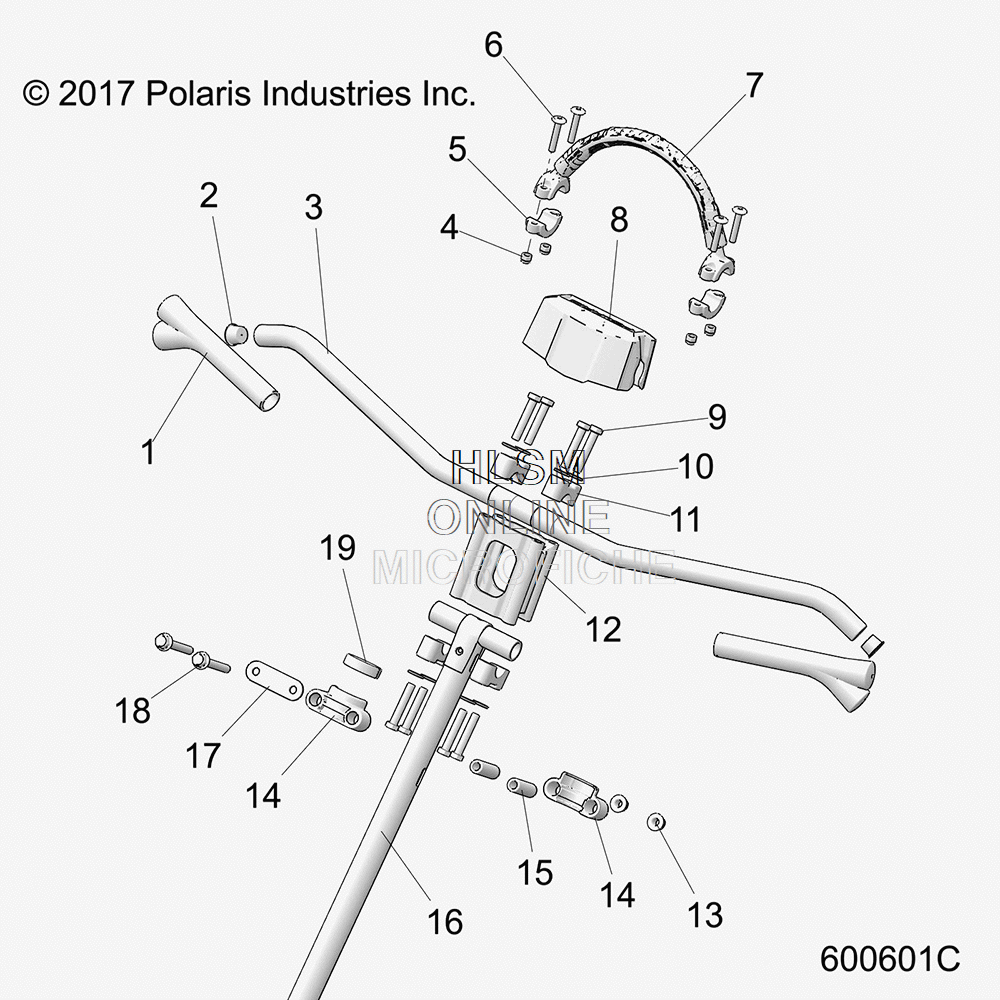

HANDLEBAR ASSEMBLY для Polaris 800 TITAN SP (S18FJB8) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5452065-070 GRIP, HANDLEBAR, BLACK
    GRIP, HANDLEBAR, BLACK
  • 2
    5431096 PLUG-OVERFLOW 8X (RED)
    PLUG-OVERFLOW 8X (RED)
  • 3
    5336886-067 BAR-HANDLE BLACK
    BAR-HANDLE BLACK
  • 4
    7547505 NUT-HEX-M6X1.0 8 ZOD NYL
    NUT-HEX-M6X1.0 8 ZOD NYL
  • 5
    5140062 CLAMP-STEERING HOOP, BOTTOM
    CLAMP-STEERING HOOP, BOTTOM
  • 6
    7519002 SCR-M6X1.0X35 8.8 TXPH ZOD
    SCR-M6X1.0X35 8.8 TXPH ZOD
  • 7
    2882118 K-STRAIGHTBAR MOUNTAIN HOOP
    K-STRAIGHTBAR MOUNTAIN HOOP
  • 8
    5438662 COVER-HANDLEBAR W/HOLE
    COVER-HANDLEBAR W/HOLE
  • 9
    7519097 SCR-HH M8X1.25X45 8.8 ZOD
    SCR-HH M8X1.25X45 8.8 ZOD
  • 10
    7556524 WASHER-.344X.688X.063 FL-ZOD
    WASHER-.344X.688X.063 FL-ZOD
  • 11
    5631311 CLAMP-HANDLE BAR, RETAINER
    CLAMP-HANDLE BAR, RETAINER
  • 12
    5137356 BLOCK-HANDLEBAR RISER 89MM
    BLOCK-HANDLEBAR RISER 89MM
  • 13
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 14
    5450881 BUSHING-STEERING POST UPPER
    BUSHING-STEERING POST UPPER
  • 15
    5139006 SPACER-BUSHING LONG
    SPACER-BUSHING LONG
  • 16
    1824426-329 POST-STEERING, ECOAT
    POST-STEERING, ECOAT
  • 17
    5258308 STRAP, STEERING
    STRAP, STEERING
  • 18
    7519971 SCR-HXFL-M8X1.25X65 8.8 ZOD
    SCR-HXFL-M8X1.25X65 8.8 ZOD
  • 19
    5414938 SEAL-STEERING BUSHING
    SEAL-STEERING BUSHING
