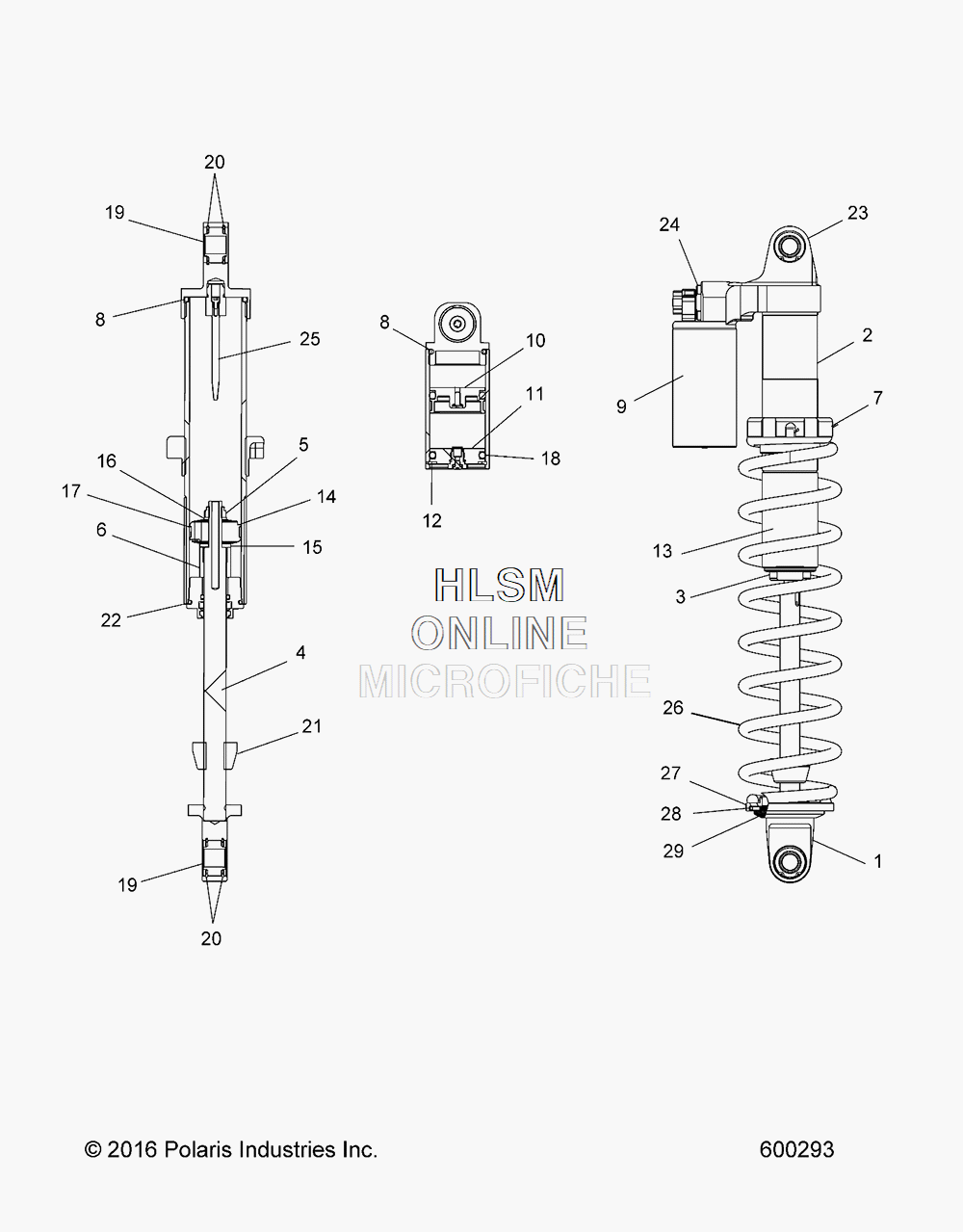

SUSPENSION - REAR SHOCK TRACK для Polaris 800 SWITCHBACK XCR (S18DDL8PS) - 2018 года выпуска
-
№АртикулНазвание
-
-7044563 SHOCK, RT, WE PIGGYBACKSHOCK, RT, WE PIGGYBACK
-
11800762 LOOP, SHAFT, W/SNAP RING, BLACKLOOP, SHAFT, W/SNAP RING, BLACK
-
21800771 BODY, RT W/SLV, BLACKBODY, RT W/SLV, BLACK
-
31800414 ASM., SEAL HEADASM., SEAL HEAD
-
41800768 SHAFT, NEEDLE, RTSHAFT, NEEDLE, RT
-
51800031 NUT, CRIMP, 3/8 INNUT, CRIMP, 3/8 IN
-
61800377 SPACER, SHAFT, .850SPACER, SHAFT, .850
-
71800372 NUT, SPRING LOCKNUT, SPRING LOCK
-
81800030 O-RINGO-RING
-
91800419 BODY, RES., 3.75L BLACKBODY, RES., 3.75L BLACK
-
101800739 ASM., FLOATING PISTONASM., FLOATING PISTON
-
111800767 ASM., END CAP, RES., BLACKASM., END CAP, RES., BLACK
-
121800159 RING, SNAPRING, SNAP
-
131800133 SLEEVE, WEARSLEEVE, WEAR
-
141800297 WEAR BANDWEAR BAND
-
151800204 WASHERWASHER
-
161800050 WASHER, 3/8 INWASHER, 3/8 IN
-
171800001 PISTON, CONVEXPISTON, CONVEX
-
181800184 O-RINGO-RING
-
191800040 END BEARINGEND BEARING
-
201800041 SNAP RINGSNAP RING
-
211800462 BUMPERBUMPER
-
221800027 O-RINGO-RING
-
231800769 PIGGYBACK, HS-LS BLACKPIGGYBACK, HS-LS BLACK
-
241800744 ADJUSTER, HS-LSADJUSTER, HS-LS
-
251800770 ASM., NEEDLEASM., NEEDLE
-
267044625-458 SPRG-COMP.362X11.50 130# MATTE BLACKSPRG-COMP.362X11.50 130# MATTE BLACK
-
275137541 RETAINER-THRUST BEARINGRETAINER-THRUST BEARING
-
283514706 BRG-THRST 64.85ODX44.31IDX3.94BRG-THRST 64.85ODX44.31IDX3.94
-
295137540 RETAINER-SPRING SLOTTEDRETAINER-SPRING SLOTTED
