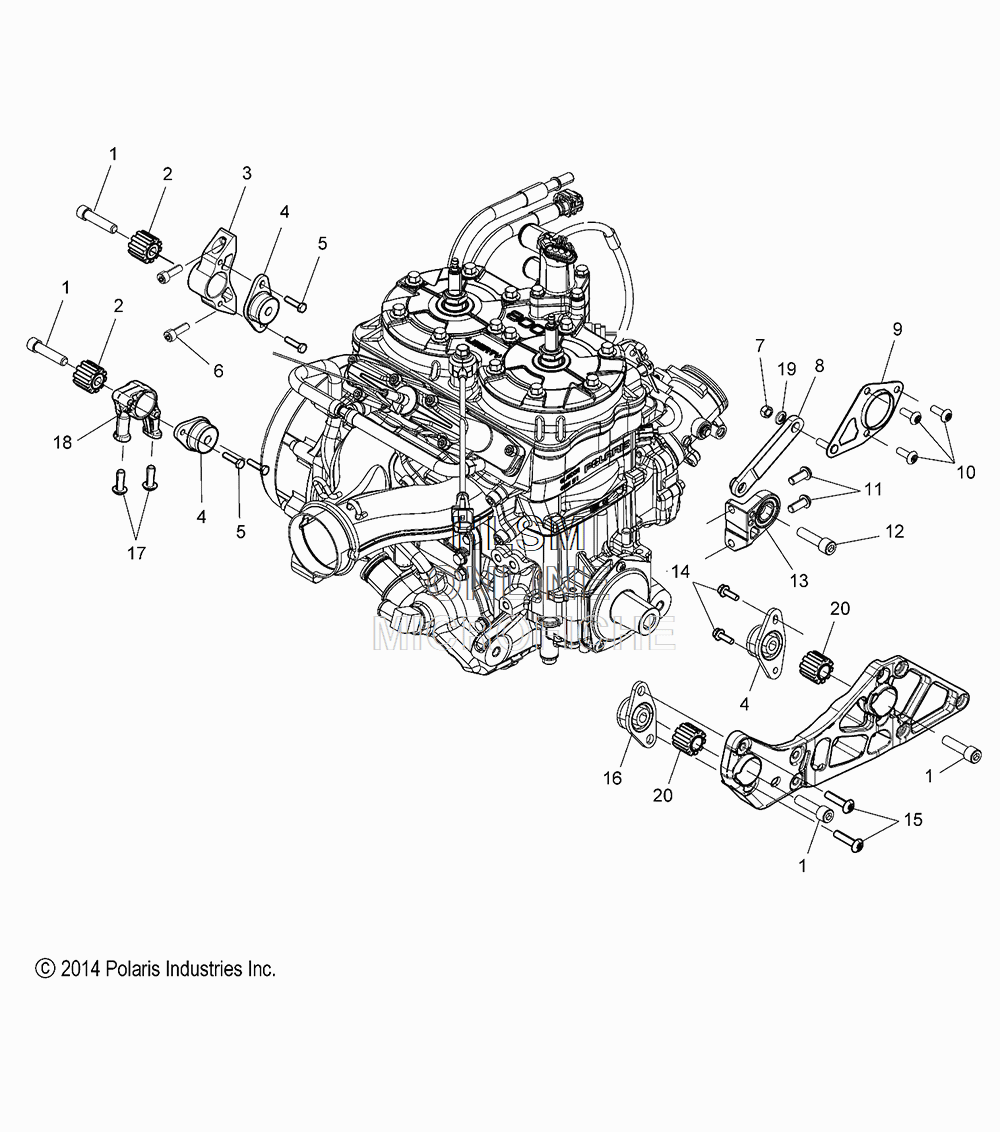

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 SWITCHBACK XCR (S18DDL8PS) - 2018 года выпуска`
-
№АртикулНазвание
-
-2207336 ENGINE, LONG BLOCKENGINE, LONG BLOCK
-
17519334 SCREWSCREW
-
23023291 MOUNT, ENGINE INSERT RAD, MAGMOUNT, ENGINE INSERT RAD, MAG
-
35138294 MOUNT, ENGINE, REAR, MAGMOUNT, ENGINE, REAR, MAG
-
43023293 MOUNT, ENGINEMOUNT, ENGINE
-
57516823 SCREWSCREW
-
67519010 SCREWSCREW
-
77547332 NUT, FLANGED, NYLOCKNUT, FLANGED, NYLOCK
-
81019180 ASM., LINK, TORQUE, FIXEDASM., LINK, TORQUE, FIXED
-
91020378 ASM., BEARING FLANGE, JACKSHAFTASM., BEARING FLANGE, JACKSHAFT
-
107520311 SCREWSCREW
-
117519648 SCREWSCREW
-
127519119 SCREWSCREW
-
133022281 LIMITER, TORQUE, ENGINELIMITER, TORQUE, ENGINE
-
147516822 SCREWSCREW
-
157519049 SCREWSCREW
-
163023292 MOUNT, ENGINE, PTO, FRONTMOUNT, ENGINE, PTO, FRONT
-
177519070 SCREWSCREW
-
185139042 ENGINE, MOUNT, FRONTENGINE, MOUNT, FRONT
-
197556216 WASHERWASHER
-
203023290 MOUNT, ENGINE INSERT RAD, PTOMOUNT, ENGINE INSERT RAD, PTO
