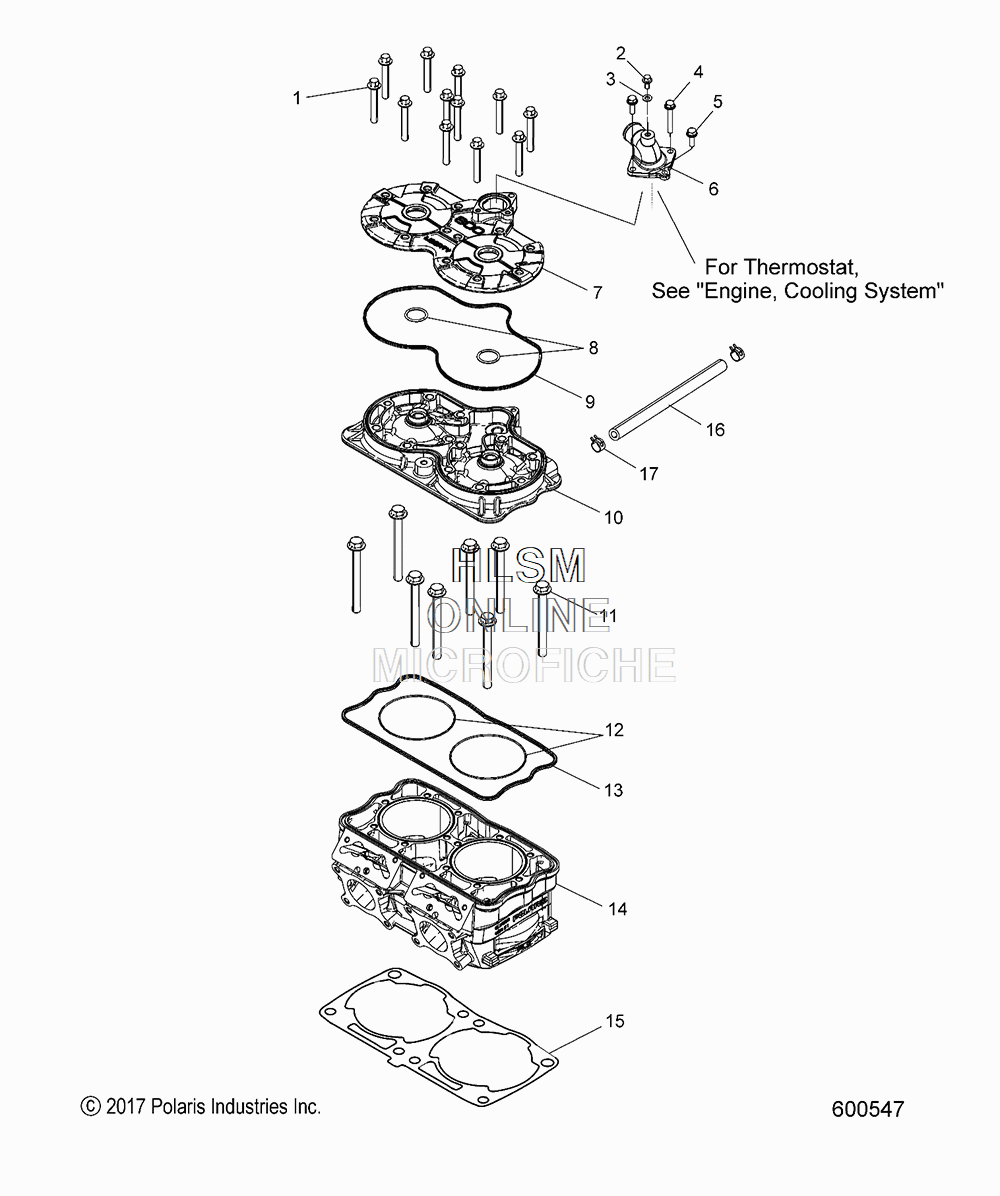

CYLINDER ASSEMBLY для Polaris 800 SWITCHBACK PRO-X SNOW CHECK (S18DDJ8PS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7517533 SCREW
    SCREW
  • 2
    7520470 SCREW, M6, BLEED
    SCREW, M6, BLEED
  • 3
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 4
    7516825 SCREW
    SCREW
  • 5
    7516822 SCREW
    SCREW
  • 6
    5140362 COVER, THERMOSTAT, DUAL OUT
    COVER, THERMOSTAT, DUAL OUT
  • 7
    5140277 COVER, HEAD
    COVER, HEAD
  • 8
    5411411 O-RING
    O-RING
  • 9
    5415812 SEAL-GLAND HEAD, 800 CH, FB
    SEAL-GLAND HEAD, 800 CH, FB
  • 10
    3023109 HEAD, CYLINDER, 85 CH BYPASS NOM, FB
    HEAD, CYLINDER, 85 CH BYPASS NOM, FB
  • 11
    7518774 SCREW
    SCREW
  • 12
    5413319 O-RING
    O-RING
  • 13
    5413288 SEAL, GLAND CYLINDER
    SEAL, GLAND CYLINDER
  • 14
    3022828 CYLINDER, SDI, MONO, 3S EV
    CYLINDER, SDI, MONO, 3S EV
  • 15
    5814279 GASKET, CYLINDER BASE, OFFSET
    GASKET, CYLINDER BASE, OFFSET
  • 16
    5415236 HOSE, COOLANT, 5/16 IN 22CM LONG
    HOSE, COOLANT, 5/16 IN 22CM LONG
  • 17
    7082198 CLAMP, HOSE, GREEN
    CLAMP, HOSE, GREEN
