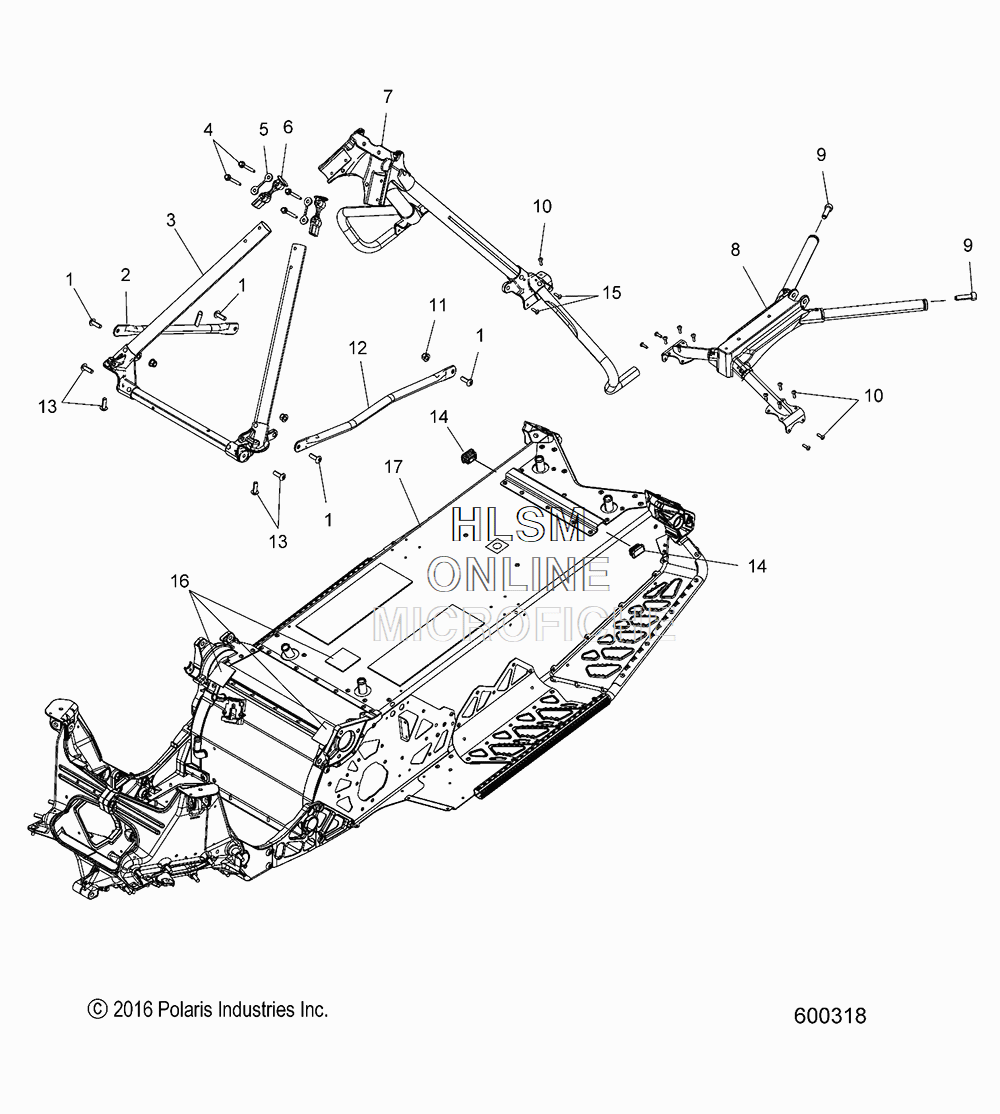

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 SWITCHBACK PRO-X SNOW CHECK (S18DDJ8PS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7518906 SCREW
    SCREW
  • 2
    1019861-067 BRACE, TUBE, RIGHT HAND, BLACK
    BRACE, TUBE, RIGHT HAND, BLACK
  • 3
    1019145 ASM-FRAME TUBULAR FRONT
    ASM-FRAME TUBULAR FRONT
  • 4
    7519967 SCREW
    SCREW
  • 5
    5633083 SHIM, TUBE CAST, 31.76 DIA
    SHIM, TUBE CAST, 31.76 DIA
  • 6
    5632923 SPACER, TUBE CAST
    SPACER, TUBE CAST
  • 7
    1019146 ASM., TUBE FRAME, REAR
    ASM., TUBE FRAME, REAR
  • 8
    1021434-458 ASM., R/T SHOCK MOUNT 137, MATTE BLACK
    ASM., R/T SHOCK MOUNT 137, MATTE BLACK
  • 9
    7519102 SCREW
    SCREW
  • 10
    7661637 RIVET
    RIVET
  • 11
    7547332 NUT
    NUT
  • 12
    5337391-329 BRACE, TUBE, LEFT HAND, E-COAT
    BRACE, TUBE, LEFT HAND, E-COAT
  • 13
    7519070 SCREW
    SCREW
  • 14
    5439145 PLUG, TUNNEL SUPPORT
    PLUG, TUNNEL SUPPORT
  • 15
    7661130 RIVET
    RIVET
  • 16
    5814187 PAD, 2.5 IN X 2.5 IN
    PAD, 2.5 IN X 2.5 IN
  • 17
    1022087-485 ASM., CHASSIS, 137 PROG., MIDNIGHT BLUE
    ASM., CHASSIS, 137 PROG., MIDNIGHT BLUE
  • 17
    1022087-705 ASM., CHASSIS, 137 PROG., MATTE TITANIUM
    ASM., CHASSIS, 137 PROG., MATTE TITANIUM
  • 17
    1022087-647 ASM., CHASSIS, 137 PROG., ORANGE BURST
    ASM., CHASSIS, 137 PROG., ORANGE BURST
  • 17
    1022087-689 ASM., CHASSIS, 137 PROG., VELOCITY BLUE
    ASM., CHASSIS, 137 PROG., VELOCITY BLUE
  • 17
    1022087-1447 ASM., CHASSIS, 137 PROG., MATTE BLACK
    ASM., CHASSIS, 137 PROG., MATTE BLACK
  • 17
    1022087-293 ASM., CHASSIS, 137 PROG., INDY RED
    ASM., CHASSIS, 137 PROG., INDY RED
