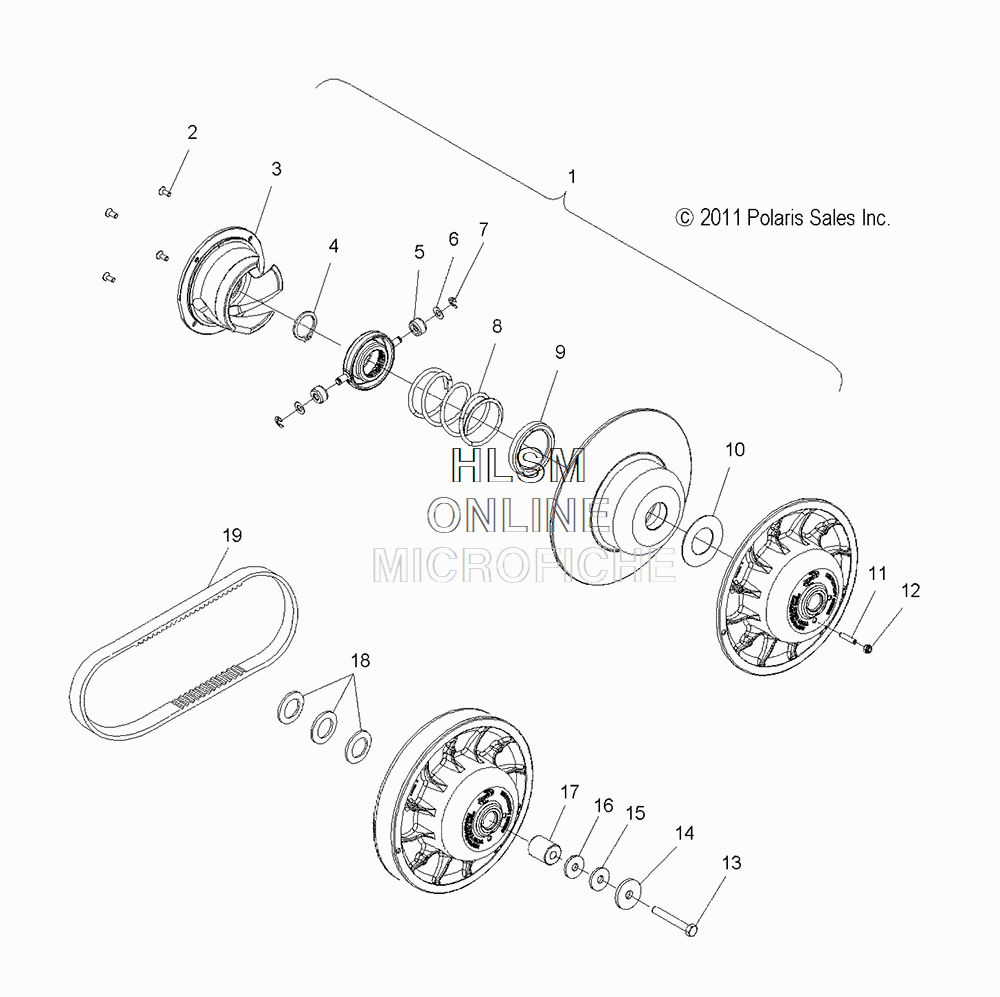

CLUTCH - SECONDARY для Polaris 800 RUSH XCR (S18DCL8PS) - 2018 года выпуска`
-
№АртикулНазвание
-
11323231 ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-12)ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-12)
-
23235592 SCREWSCREW
-
35140311 RAMP-58/44/.36 BA35 ER, LWTRAMP-58/44/.36 BA35 ER, LWT
-
47710583 RING, RETAININGRING, RETAINING
-
55434534 ROLLERROLLER
-
67556226 WASHER, THRUSTWASHER, THRUST
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87043064 SPRING, DRIVEN CLUTCH, LEFT HAND, BLUE/BLACKSPRING, DRIVEN CLUTCH, LEFT HAND, BLUE/BLACK
-
97556728 WASHER, THRUSTWASHER, THRUST
-
107556370 WASHERWASHER
-
113234228 SCREWSCREW
-
127542103 NUT, FLEXLOCNUT, FLEXLOC
-
137519254 SCREWSCREW
-
147555846 WASHER, FLATWASHER, FLAT
-
157555832 WASHER, FLATWASHER, FLAT
-
167555806 WASHER, FLATWASHER, FLAT
-
175137323 SPACER, CLUTCHSPACER, CLUTCH
-
187556509 BUSHINGBUSHING
-
187555917 WASHERWASHER
-
187555864 WASHERWASHER
-
193211177 BELT, DRIVEBELT, DRIVE
Все узлы модели:
- AIR INTAKE SYSTEM
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/ CLOSEOFF
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- • CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ELECTRICAL- BATTERY AND CABLES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVE ASM.
- FENDERS W/ NOSEPAN ASM.
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- MULTI-FUNCTION GAUGE
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- RECOIL STARTER
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - CRANK ASSEMBLY - REAR
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- TUNNEL ASSEMBLY
- WATER PUMP
- WINDSHIELD
