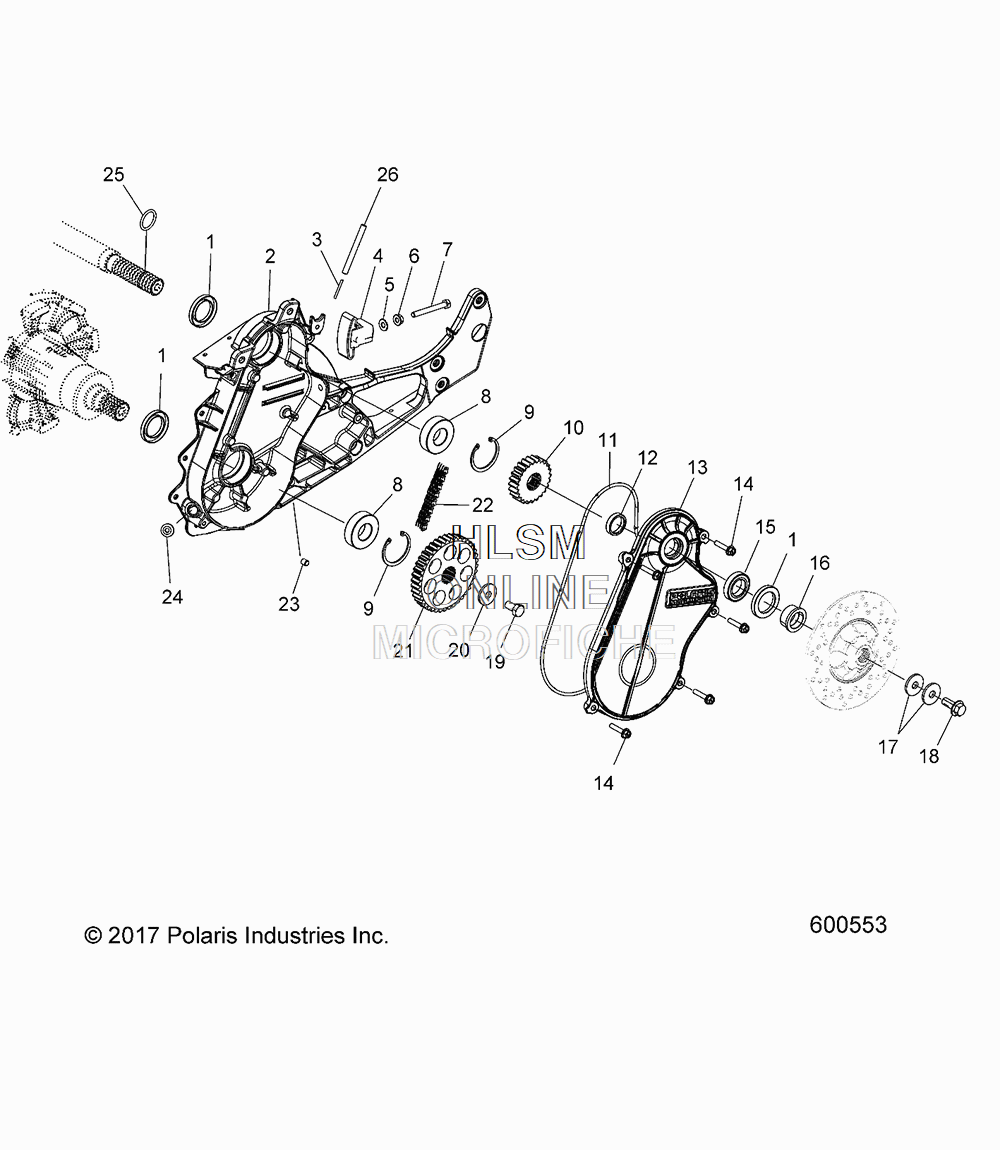

CHAINCASE ASSEMBLY для Polaris 800 RUSH XCR (S18DCL8PS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    1333119 ASM., CHAINCASE (REQUIRES ADHESIVE, INCL. BEARINGS, SEALS)
    ASM., CHAINCASE (REQUIRES ADHESIVE, INCL. BEARINGS, SEALS)
  • 3
    5334764 TUBE, VENT
    TUBE, VENT
  • 4
    1332427 ASM., TIGHTENER, CHAIN
    ASM., TIGHTENER, CHAIN
  • 5
    7556340 WASHER, THREAD SEAL
    WASHER, THREAD SEAL
  • 6
    7547017 NUT, HEX
    NUT, HEX
  • 7
    7519938 SCREW
    SCREW
  • 8
    3514309 BEARING, BALL
    BEARING, BALL
  • 9
    7718406 RING, RETAINING
    RING, RETAINING
  • 10
    3221098 SPROCKET, 22T, 3/4W
    SPROCKET, 22T, 3/4W
  • 11
    5814028 GASKET, CHAINCASE COVER
    GASKET, CHAINCASE COVER
  • 12
    5137587 SLEEVE, CHAINCASE
    SLEEVE, CHAINCASE
  • 13
    1333118 ASM., CHAINCASE COVER (INCL. BEARING AND SEAL)
    ASM., CHAINCASE COVER (INCL. BEARING AND SEAL)
  • 14
    7518993 SCREW
    SCREW
  • 15
    3514643 BEARING, BALL
    BEARING, BALL
  • 16
    5140953 SLEEVE, CHAMFERLESS
    SLEEVE, CHAMFERLESS
  • 17
    7556490 WASHER
    WASHER
  • 18
    7518760 SCREW, HXFLG
    SCREW, HXFLG
  • 19
    7519004 SCREW
    SCREW
  • 20
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 21
    3222231 SPROCKET, 37T
    SPROCKET, 37T
  • 22
    3221112 CHAIN, 68P, 3/4W
    CHAIN, 68P, 3/4W
  • 23
    7663007 DOWEL, HOLLOW
    DOWEL, HOLLOW
  • 24
    7052674 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 25
    5413563 O-RING, 20.30MMX2.62MM
    O-RING, 20.30MMX2.62MM
  • 26
    8450061-600 LINE, OIL,3MMX7MM, 600 CM, SERVICE
    LINE, OIL,3MMX7MM, 600 CM, SERVICE
