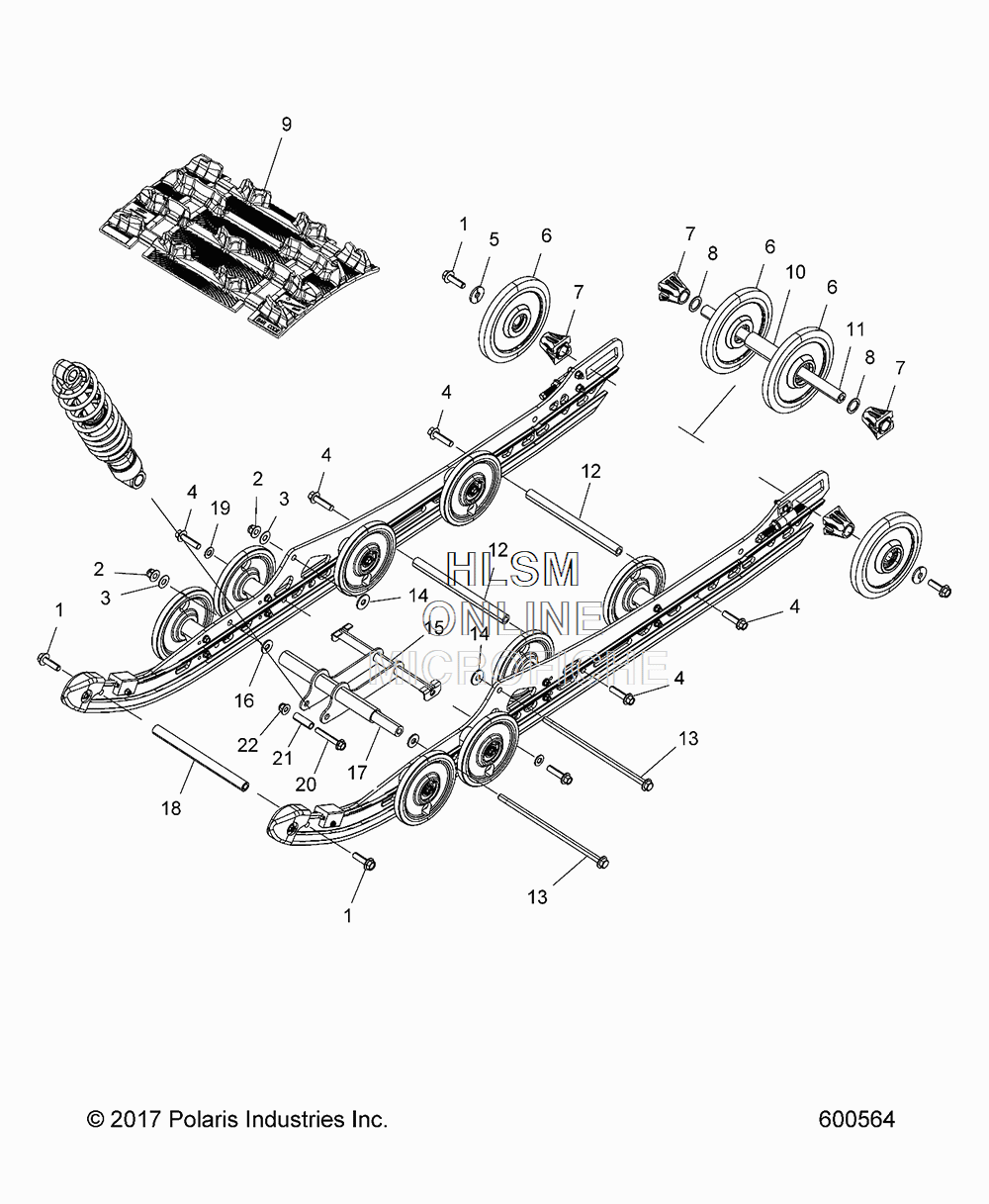

SUSPENSION - REAR W/ TRACK для Polaris 600 SWITCHBACK XCR INTL (S18DDL6PEM) - 2018 года выпуска`
-
№АртикулНазвание
-
17518957 SCREWSCREW
-
27547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
37556545 WASHERWASHER
-
47519216 SCREWSCREW
-
57556490 WASHER, SPRINGWASHER, SPRING
-
61590426 ASM., WHEEL, SPOKEASM., WHEEL, SPOKE
-
67710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
63514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
75432535 SPACER, IDLERSPACER, IDLER
-
87555918 BUSHINGBUSHING
-
95414378 TRACK, 1.75 IN X 136 IN BACKCOUNTRY (INTL ONLY)TRACK, 1.75 IN X 136 IN BACKCOUNTRY (INTL ONLY)
-
95413655 TRACK,1.352 IN X 136 IN COBRATRACK,1.352 IN X 136 IN COBRA
-
95251274 CLIP, GUIDECLIP, GUIDE
-
95251273 CLIP, FLATCLIP, FLAT
-
105333283 SPACER, IDLERSPACER, IDLER
-
115136745 SHAFT, IDLERSHAFT, IDLER
-
125139172 SHAFTSHAFT
-
137519327 SCREWSCREW
-
147556563 WASHERWASHER
-
151543700-329 SHOCK MOUNT, METRIC, E-COATSHOCK MOUNT, METRIC, E-COAT
-
167556559 WASHERWASHER
-
175140492 SHAFT-H BRKT, CC ALSHAFT-H BRKT, CC AL
-
185136572 SHAFTSHAFT
-
197556153 WASHERWASHER
-
207518960 SCREW-M10X65 HXFLSCREW-M10X65 HXFL
-
215335719 SHAFT-SHOCKSHAFT-SHOCK
-
227547423 NUT-M10 NYLNUT-M10 NYL
