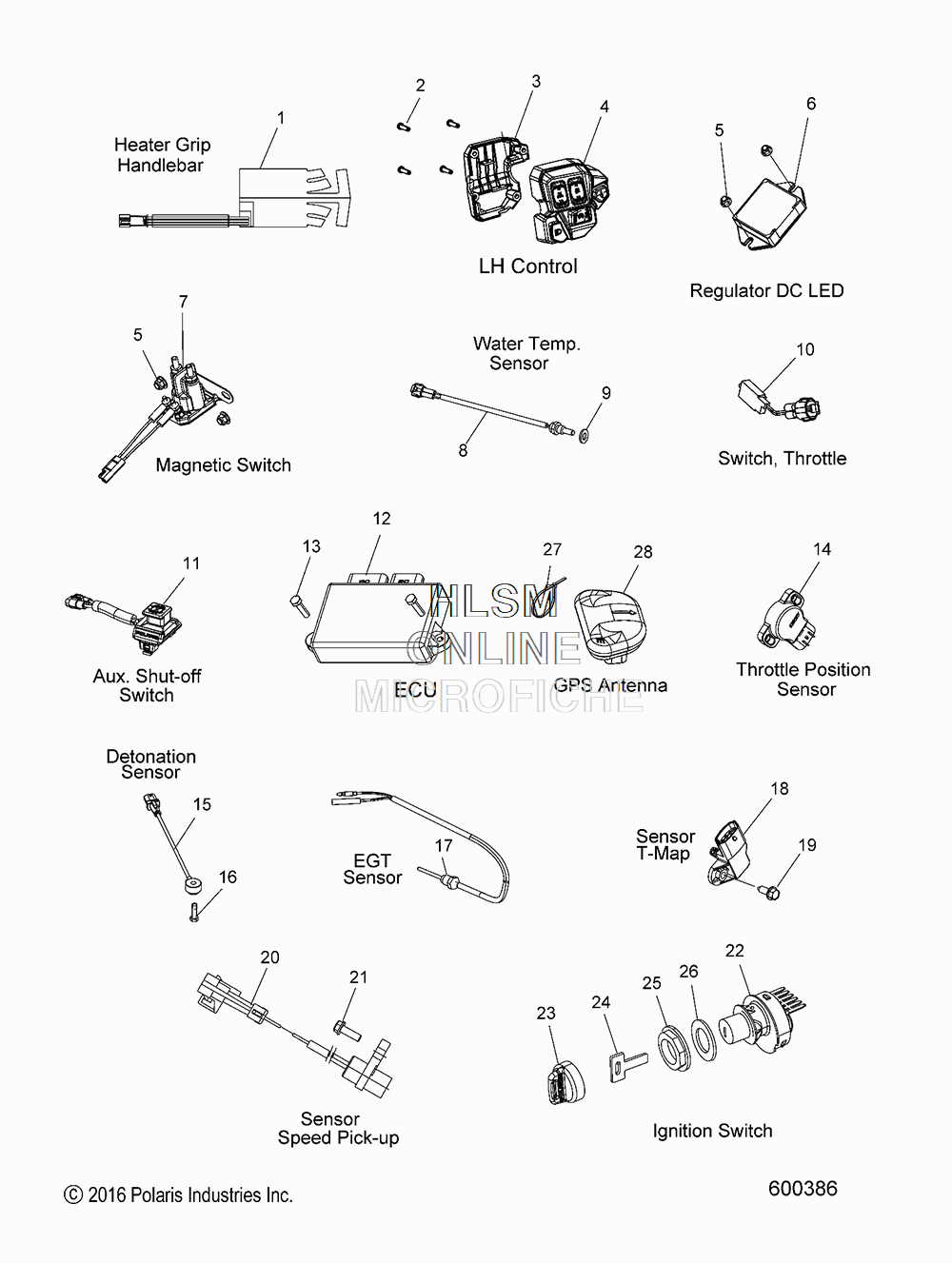

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 SWITCHBACK XCR INTL (S18DDL6PEM) - 2018 года выпуска
-
№АртикулНазвание
-
12413778 GRIP, HEATER, LO/MED/HI, LEFT HANDGRIP, HEATER, LO/MED/HI, LEFT HAND
-
12413779 GRIP, HEATER, LO/MED/HI, RIGHT HANDGRIP, HEATER, LO/MED/HI, RIGHT HAND
-
27518227 SCREWSCREW
-
35450542 COVER, CONTROL, LEFT HANDCOVER, CONTROL, LEFT HAND
-
42010409 ASM., LEFT HAND CONTROLASM., LEFT HAND CONTROL
-
57547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
64015642 REGULATOR, DC LEDREGULATOR, DC LED
-
74015817 SWITCH, MAGNETICSWITCH, MAGNETIC
-
84012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
97556357 WASHER, COPPERWASHER, COPPER
-
104015245 SWITCH, THROTTLESWITCH, THROTTLE
-
112010426 ASM., SWITCH., AUX. SHUTOFF (INCL. MOUNT)ASM., SWITCH., AUX. SHUTOFF (INCL. MOUNT)
-
114015321 SWITCH., AUX. SHUTOFFSWITCH., AUX. SHUTOFF
-
124014920 ECU, DC/SDI LEAS, 32MHZ2TECU, DC/SDI LEAS, 32MHZ2T
-
137516823 SCREWSCREW
-
143131751 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
152410369 SENSOR, DETONATIONSENSOR, DETONATION
-
167517262 SCREWSCREW
-
174013133 SENSOR, EGTSENSOR, EGT
-
182410422 SENSOR, T-MAPSENSOR, T-MAP
-
197512098 SCREWSCREW
-
202412968 SENSOR, SPEED PICKUP, LGSENSOR, SPEED PICKUP, LG
-
217519236 SCREWSCREW
-
224012165 SWITCH, KEY, 3 POSITION (INCL. 23-25)SWITCH, KEY, 3 POSITION (INCL. 23-25)
-
235433534 COVER, KEYCOVER, KEY
-
244010278 KEY, BLANK (NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING AKEY, BLANK (NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A
-
255433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
267556327 WASHER, NYLONWASHER, NYLON
-
277080138 CABLE TIECABLE TIE
-
284014811 GPS-ANTENNAGPS-ANTENNA
