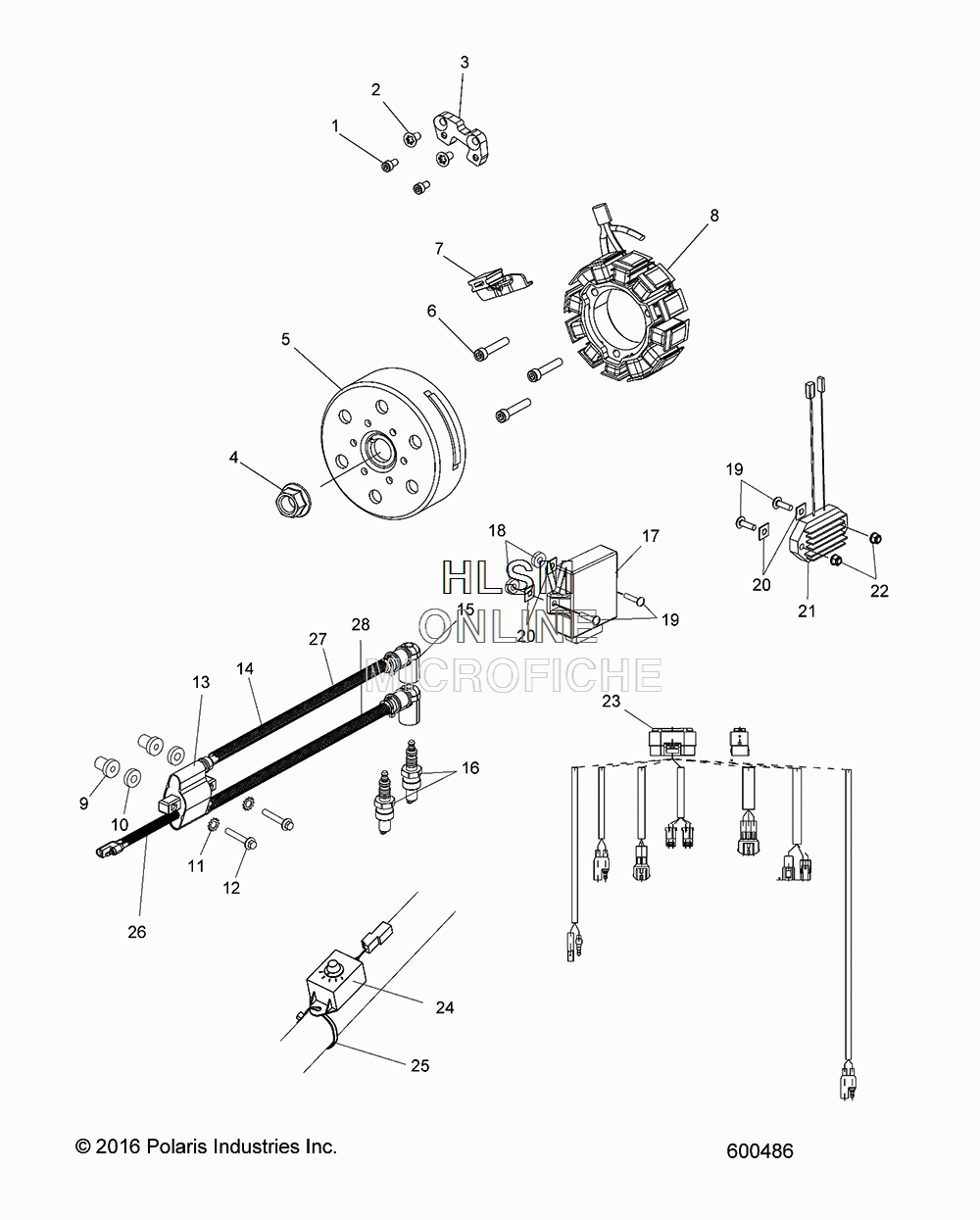

ELECTRICAL - IGNITION SYSTEM для Polaris 600 RACER/INTL [S17MBX6JSA/JEA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7517847 SCREW
    SCREW
  • 2
    7518861 SCREW
    SCREW
  • 3
    5136086 ADAPTER, FLYWHEEL, PICK UP
    ADAPTER, FLYWHEEL, PICK UP
  • 4
    7518299 NUT, FLANGE
    NUT, FLANGE
  • 5
    4011869 FLYWHEEL-KOK
    FLYWHEEL-KOK
  • 6
    7517848 SCREW
    SCREW
  • 7
    5437349 RETAINER, WIRE
    RETAINER, WIRE
  • 8
    4011870 STATOR-KOK
    STATOR-KOK
  • 9
    7547103 NUT, NITRILE
    NUT, NITRILE
  • 9
    7547103 NUT, NITRILE
    NUT, NITRILE
  • 10
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 11
    7552604 WASHER, EXTERNAL TOOTH
    WASHER, EXTERNAL TOOTH
  • 12
    7517610 SCREW
    SCREW
  • 13
    4016199 COIL, IGNITION
    COIL, IGNITION
  • 14
    4010124-305 WIRE, IGNITION
    WIRE, IGNITION
  • 15
    4013156 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 16
    3022082 PLUG, SPARK, BPR 9ES
    PLUG, SPARK, BPR 9ES
  • 17
    2205556 KIT, CDI
    KIT, CDI
  • 18
    5431928 BUMPER, CLUTCH KNOB
    BUMPER, CLUTCH KNOB
  • 19
    7518679 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 20
    7670154 RETAINER-BOLT
    RETAINER-BOLT
  • 21
    4012610 REGULATOR, IGNITION
    REGULATOR, IGNITION
  • 22
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 23
    4011967 HARNESS, IGNITION,DC-CDI
    HARNESS, IGNITION,DC-CDI
  • 24
    4010329 SWITCH, IGNITION TIMING
    SWITCH, IGNITION TIMING
  • 25
    7080138 CABLE TIE
    CABLE TIE
  • 26
    8360056-9 TUBING-CONVOLUTED 9CM
    TUBING-CONVOLUTED 9CM
  • 27
    4011722-28 TUBING-CONVOLUTED, HITEMP, 28CM
    TUBING-CONVOLUTED, HITEMP, 28CM
  • 28
    4011722-33 TUBING-CONVOLUTED, HITEMP, 33CM
    TUBING-CONVOLUTED, HITEMP, 33CM
