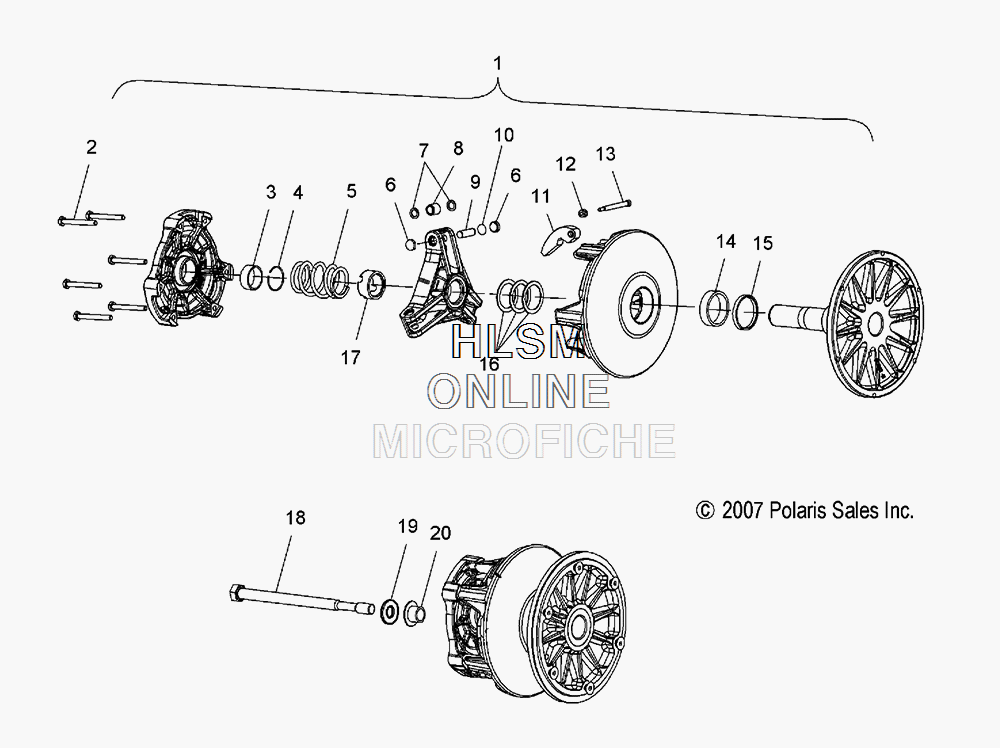

CLUTCH - PRIMARY для Polaris 600 RACER/INTL [S17MBX6JSA/JEA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1323448 ASM., DRIVE CLUTCH, BASIC, BSCBT, RACE [INCL. ALL LESS 5,11,18-20]
    ASM., DRIVE CLUTCH, BASIC, BSCBT, RACE [INCL. ALL LESS 5,11,18-20]
  • 2
    7518349 SCREW, FLANGE
    SCREW, FLANGE
  • 3
    3576516 BEARING, COVER, GARMAX
    BEARING, COVER, GARMAX
  • 4
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 5
    7041988 SPRING, DRIVE CLUTCH, ALMOND/RED
    SPRING, DRIVE CLUTCH, ALMOND/RED
  • 6
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 9
    5133079 PIN, ROLLER
    PIN, ROLLER
  • 10
    2200387 KIT, DRIVE CLUTCH SHIM
    KIT, DRIVE CLUTCH SHIM
  • 11
    1323261 ASM., WEIGHT/BUSHING, 10-58RD
    ASM., WEIGHT/BUSHING, 10-58RD
  • 12
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 13
    7515105 PIN, HARDENED WEIGHT
    PIN, HARDENED WEIGHT
  • 14
    3514641 BEARING, SLEEVE
    BEARING, SLEEVE
  • 15
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 16
    5210754 SPACER, .050
    SPACER, .050
  • 16
    5242981 SPACER, .025
    SPACER, .025
  • 16
    5210753 SPACER, .032
    SPACER, .032
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    7518412 SCREW
    SCREW
  • 19
    7556003 WASHER
    WASHER
  • 20
    5132441 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
